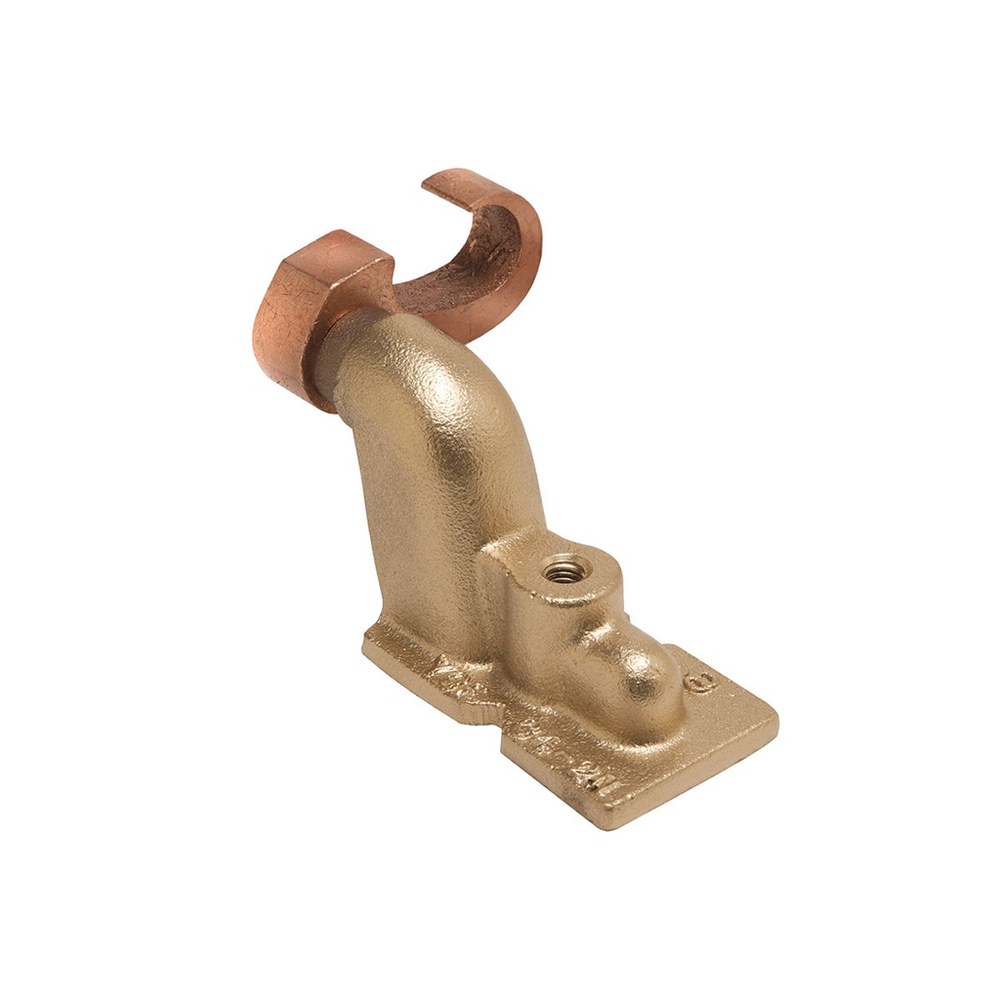

Burndy YGF342N
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Compression Grounding Plate; Copper; 2-Hole; Accommodates: 250 - 500 kcmil; 1/2" Stud; 1-3/4" Stud Hole Spacing.Compression Grounding Plate; Copper; 2-Hole
Burndy YGF342N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810002131
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810002132
- Certification Agency
- Proposition 65
- Class Code
- B42
- Conductor - Copper Str Size
- 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor - Copper Str Size Range
- 250 kcmil-500 kcmil
- Conductor Type
- CU C Str-Size
- Country of Origin
- US
- Die Index
- 1011
- Dimension - D inch
- 3.25 in
- Dimension - Height fraction
- 4-31/50 in
- Dimension - Height inch
- 4.62 in
- Dimension - Length Overall inch
- 5.40 in
- Dimension - L Length Overall mm
- 137 mm
- Dimension - Pad Width inch
- 2.00 in
- Dimension - Thread Size
- 3/8 -16
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Industry Standard(s)
- NEMA Size Holes
- Lead Time
- 12 wk
- Material
- Copper
- Package - GTIN - Package
- 30781810002132
- Package Quantity
- 2 EA
- Package - Total Units
- 2 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Number of Crimps Required
- 2
- Physical Attribute - Number of Tapped Holes
- 2
- Physical Attribute - Tongue Angle
- Straight
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Standard Package Quantity
- 2
- Standards - Industry Standards Met
- UL467;IEEE 837
- Standards - RoHS Compliance Status
- EX
- Sub Class Code
- B42BE0F
- Trade Name
- HYGROUND®
- UL Listed
- Yes
