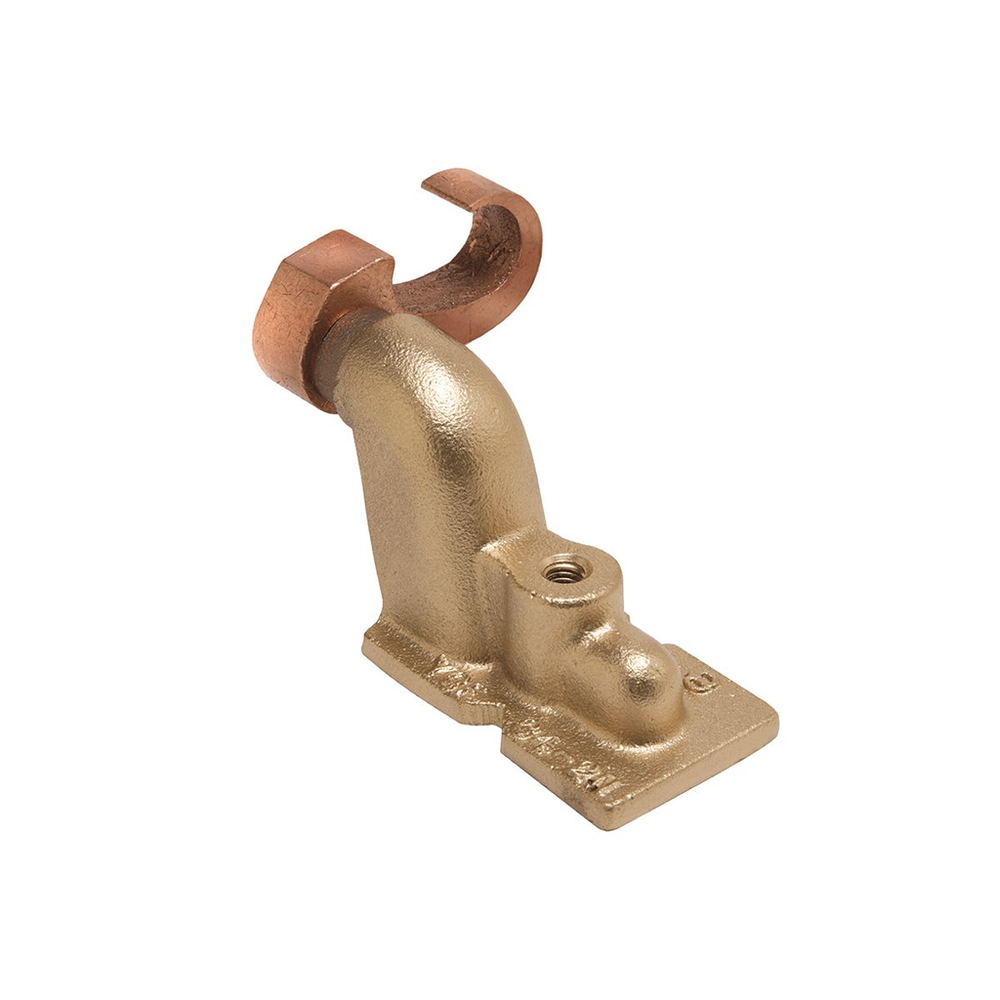

Burndy YGF292N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Compression Grounding Plate; Copper; 2-Hole; Accommodates: #2 AWG - 250 kcmil; 1/2" Stud; 1-3/4" Stud Hole SpacingCompression Grounding Plate; Copper; 2-Hole
Burndy YGF292N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Listed Direct Burial
- Yes
- UL Recognized
- No
Specifications
- Application
- Used to position the grounding plate on a threaded rod prior to placement of the concrete.
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810220504
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810220505
- Certification Agency
- Proposition 65
- Class Code
- B42
- Conductor - Copper Str Size
- 2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
- Conductor - Copper Str Size Range
- 2 AWG-250 kcmil
- Conductor Type
- CU C Str-Size
- Country of Origin
- US
- Description - Invoice
- 2-250 CU GRD PLT 2 HOLE
- Die Index
- 997
- Dimension - D inch
- 3.25 in
- Dimension - F Width Center to Center inch
- 1.75 in
- Dimension - Height fraction
- 3-31/50 in
- Dimension - Height inch
- 3.62 in
- Dimension - Length Overall inch
- 5.78 in
- Dimension - L Length Overall mm
- 147 mm
- Dimension - Pad Width inch
- 2.00 in
- Dimension - Thread Size
- 3/8 -16
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 2.00 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908060
- Image Actual Or Representative
- A
- Industry Standard(s)
- NEMA Size Holes
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 3.62 lb.
- Package - GTIN - Package
- 30781810220505
- Package Height
- 4.50 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 2
- Package - Pack Description
- Package
- Package Quantity
- 2 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810220504
- Package - Total Units
- 2 EA
- Package Weight
- 3.62 lb.
- Package Width
- 4.56 in
- Physical Attribute - Number of Crimps Required
- 2
- Physical Attribute - Number of Tapped Holes
- 2
- Physical Attribute - Tongue Angle
- Straight
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Copper Compression Grounding Plate, 2 AWG - 250 kcmil, 1/2 IN Stud, 1-3/4 IN Stud Hole Spacing
- Standard
- NEMA Size Holes
- Standard Package Quantity
- 2
- Standards - Industry Standards Met
- UL467;IEEE 837
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- GROUNDING PLATE
- Sub Class Code
- B42BE0F
- Trade Name
- HYGROUND®
- Type
- YGF
- UL Listed
- Yes
- Width
- 2.00 in
