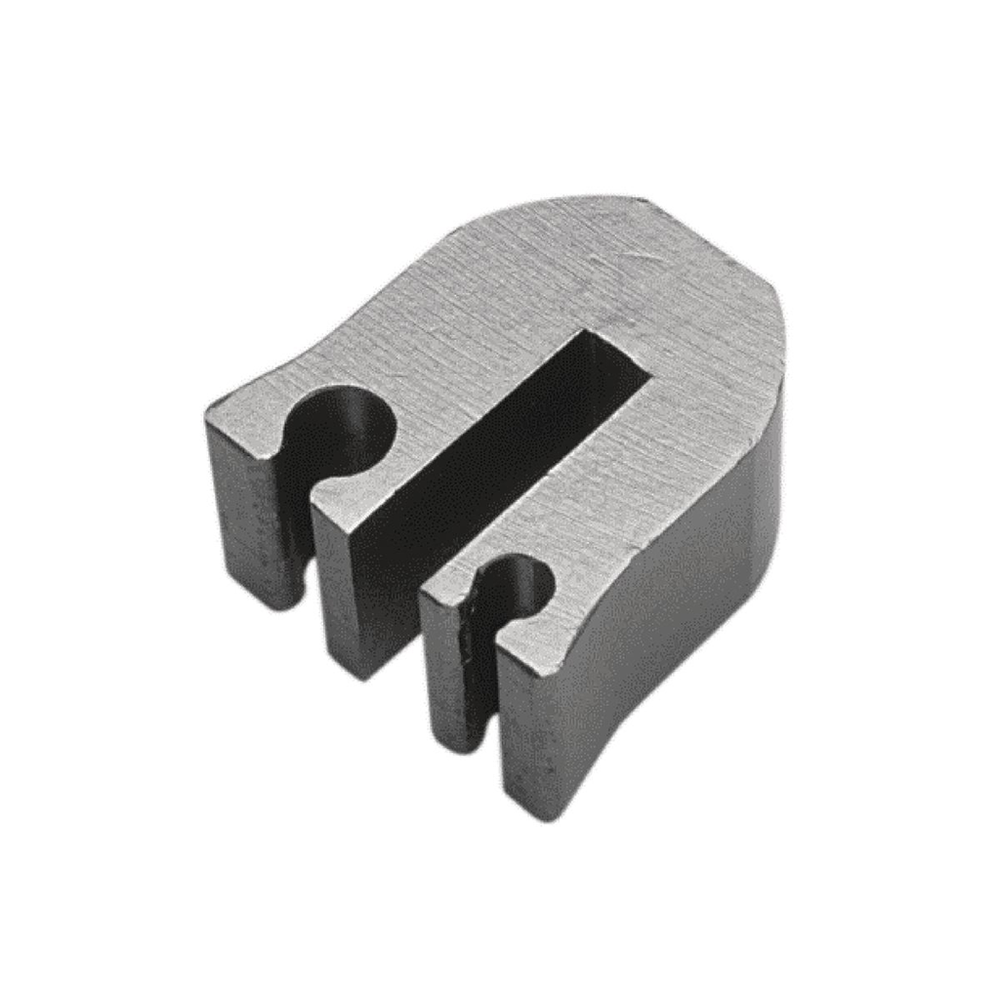

Burndy YG14B2TC2C2C

Certifications

• CSA Approved
  • No
• cULus
  • Yes
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Listed Direct Burial
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For Direct Barial And Cellular Tower Applicatons And Is Easier To Use Than Exothermic Connections
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 5.125x6.438x4.875 (in)
• Buy American Compliant
  • Yes
• Carton - Gross Weight per Pack
  • 6.000 lb.
• Carton - Number of Sub Packs
  • 20
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810232712
• Carton - Total Units
  • 20
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810232713
• Certification Agency
  • Proposition 65
• Class Code
  • B42
• Conductor - Copper Solid Size A
  • 2 AWG
• Conductor - Copper Solid Size A Range
  • 2 AWG
• Conductor - Copper Solid Size B
  • 2 AWG
• Conductor - Copper Solid Size B Range
  • 2 AWG
• Conductor - Copper Str Size A
  • 2 AWG
• Conductor - Copper Str Size A Range
  • 2 AWG
• Conductor Type
  • CU C Str-Size;CU C Solid-Size;Bar-Size
• Connector Type
  • Tap
• Country of Origin
  • US
• Description - Invoice
  • BUSBAR COMPRESSION CONN
• Dimension - B Length fraction
  • 64/79 in
• Dimension - B Length inch
  • 0.81 in
• Dimension - Bus Bar Size Tap Side inch
  • 1/4" Thick Busbar
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 1.19 in
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8535908040
• Image Actual Or Representative
  • A
• Industry Standard(s)
  • UL467
• Lead Time
  • 11 wk
• Lowest Level UOM
  • Each
• Material
  • Copper Alloy
• MSDS Flag
  • No
• Order Multiple
  • 1 EA
• Package - Gross Weight per Pack
  • 8.25 lb.
• Package - GTIN - Package
  • 30781810232713
• Package Height
  • 4.5 in
• Package Length
  • 6.13 in
• Package - Number of Sub Packs
  • 25
• Package - Pack Description
  • Package
• Package Quantity
  • 25 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810232712
• Package - Total Units
  • 25 EA
• Package Weight
  • 8.25 lb.
• Package Width
  • 4.56 in
• Pallet - GTIN - Package
  • 70781810232711
• Pallet Height
  • 46.750 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 2133.000 lb.
• Pallet Width
  • 40.000 in
• Physical Attribute - Number of Crimps Required
  • 1
• Plated
  • N
• Plating Type
  • Unplated
• Prefilled Oxide Inhibitor
  • Y
• Product Type
  • Compression
• Special Features
  • Features: BURNDYs YG14B2TC2C6C Compression Bus Bar Connector Is Ideally Suited For Cellular Tower Applicatons And Is Easier To Use Than Exothermic Connections, This High Conduc Tivity Wrought Copper Connector Allows Attachment Of The Ground Conductor To The Ground Bus With Just One Crimp Using The BURNDY Y750 HYPRESS Hydraulic Compression Tool And The U1105 Die Set, This Exclusive Patent Pending Design Allows The User To Attach #2 AWG Solid/Stranded And/Or #6 Solid/Stranded Copper Conductor To 1/4 Thick Copper Bus Bar, This Connection Is Suitable Using (1) Or (2) Conductors For Power, Grounding And Bonding Applictions, UL Listed To Both UL486 And UL467 (Suitable For Direct Burial) Ensures That This Connector Will Meet The Rigors Of Either Application, Prefilled With PENETROX E Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): Y750, PAT750 Tool, U1105 Die, (1)
• Standard
  • UL467
• Standard Package Quantity
  • 25
• Standards - Industry Standards Met
  • UL467;UL 486A;CSA C22.2 No 65
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • N - Non-stock
• Sub Brand
  • HYGROUND
• Sub Class Code
  • B42BE9F
• Trade Name
  • HYGROUND®
• Type
  • YG-B
• UL Listed
  • No
• Width
  • 1.19 in
