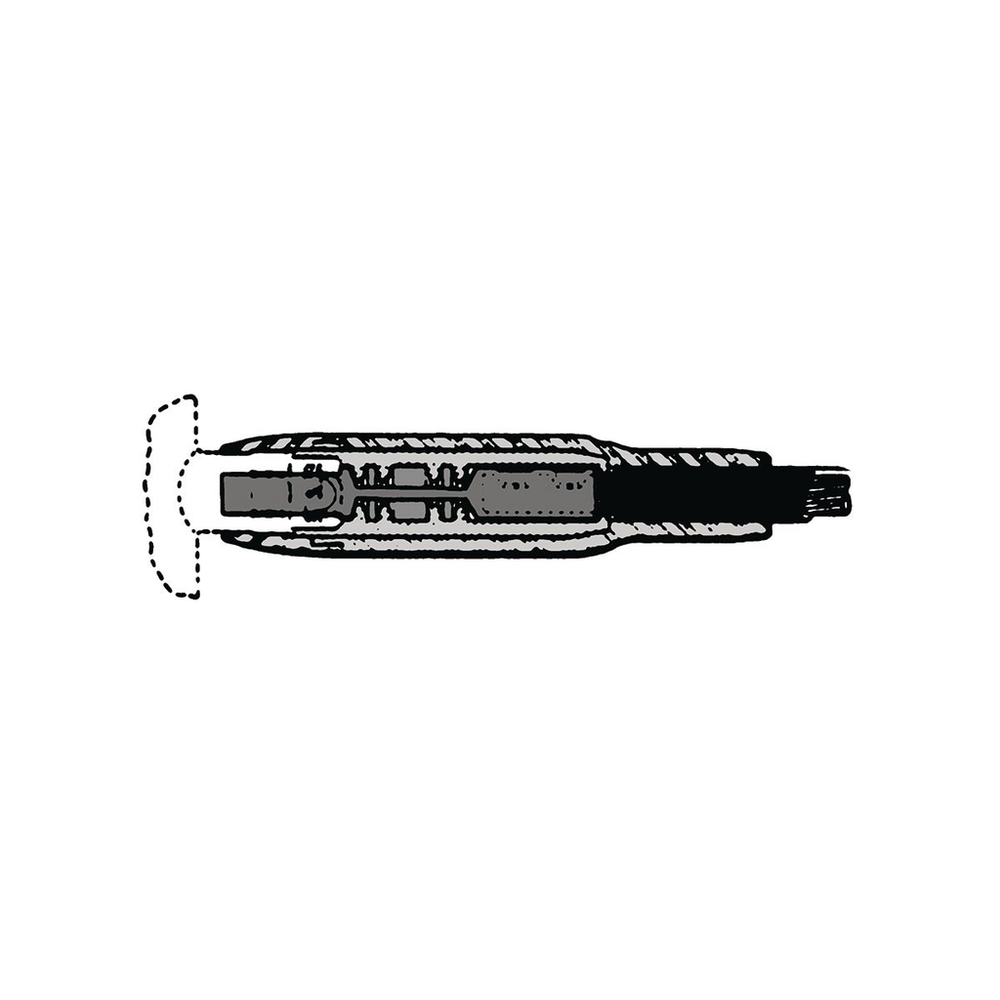

Burndy YFM34CR
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Limiter Lug Assembly, 500 kcmil, For Rubber Insulated Cables.Limiter Lug Assembly, 500 kcmil, For Rubber Insulated Cables
Burndy YFM34CR is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Use On Rubber Insulated Cable
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 8.375x14.563x11.063 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 18.630 lb.
- Carton - Number of Sub Packs
- 9
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810017500
- Carton - Total Units
- 9
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810017501
- Certification Agency
- Proposition 65
- Class Code
- B35
- Color Code
- Brown
- Conductor - Copper Str Size
- 500 kcmil
- Country of Origin
- US
- Description - Invoice
- LIMITER LUG
- Die Index
- 20
- Dimension - AA Pad Orientation
- 1.34 in
- Dimension - B Length inch
- 2.75 in
- Dimension - D inch
- 8.26 in
- Dimension - F Width Center to Center inch
- 1.89 in
- Dimension - Length BB inch
- 4.31 in
- Dimension - Length Overall inch
- 11.5 in
- Dimension - Outside Diameter inch
- 2.38 in
- Dimension - Strip Length inch
- 3.25 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 2.38 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8536904000
- Image Actual Or Representative
- A
- Insulation
- Y
- Insulation Type
- Rubber
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- Yes
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 18.63 lb.
- Package - GTIN - Package
- 30781810017501
- Package Height
- 7.75 in
- Package Length
- 14 in
- Package - Number of Sub Packs
- 9
- Package - Pack Description
- Package
- Package Quantity
- 9 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810017500
- Package - Total Units
- 9 EA
- Package Weight
- 18.63 lb.
- Package Width
- 10.5 in
- Pallet - GTIN - Package
- 70781810017509
- Pallet Height
- 47.625 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 976.500 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Compression
- Special Features
- Used For Fusing Underground Cables At Junction Points,The Unit Is Designed For Use With The BURNDY MOLE And Provides Limiter Protection For Cables Which Terminate At The MOLE,The Cable End Is Installed In The MOLIMITER Cable Socket And Then The MOLE End Is Installed In The MOLE Outlet Socket And Nut Assembly Molimiters Which Have Burned Clear May Be Quickly Replaced,Size: 12-3/16 IN Length X 2-9/16 IN Outer-Diameter X 1-1/2 IN Cable Diameter Over Insulation, Conductor Range: 750 KCMIL,For Connection To Mole Use: Socket And Nut Assembly: Z34NRB,Z Cone: Z3434,Outlet Size: 2 AWG Stranded - 1000 KCMIL, Tools, Die Nest Catalog Number,Die Indentor Catalog Number: HYPRESS: Y44B Tool, E39D Die Nest, Y44R Die Indentor,IndentIncludes: With DURICOMP Shell And Rubber Sleeve For Insulated Cables
- Standard Package Quantity
- 9
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- NETWORK UNDERGROUND, MOLIMITER
- Sub Class Code
- B35B97F
- Trade Name
- MOLIMITER™
- Type
- YFM-CR
- UL Listed
- No
- Width
- 2.38 in
