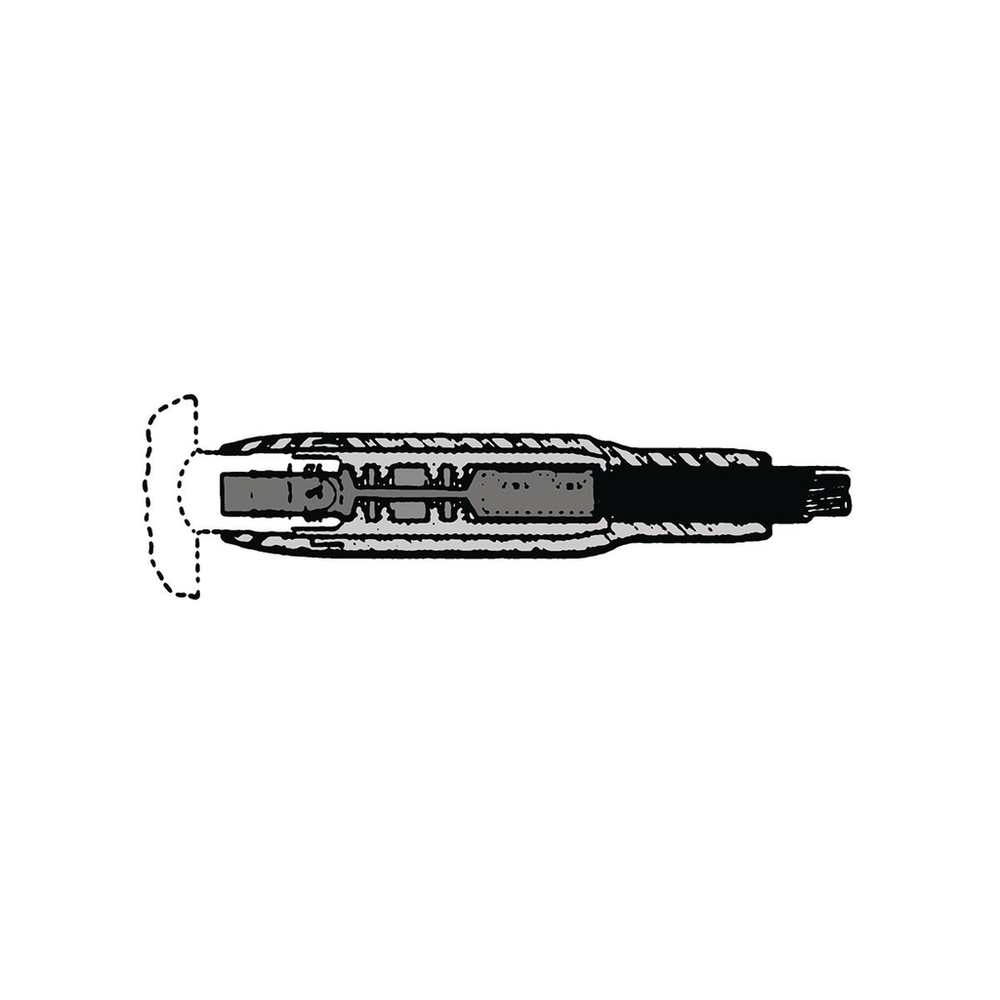

Burndy YFM34CPL

Certifications

• CSA Approved
  • No
• cULus
  • No
• ETL
  • No
• EU RoHS Indicator
  • Yes
• UL Recognized
  • No

Specifications

• Application
  • For Paper-Lead Cables
• ARRA Compliant
  • Yes
• Base Unit of Measure
  • EA
• BOX SIZE
  • 8.375x14.563x11.063 (in)
• Buy American Compliant
  • Yes
• Carton - Gross Weight per Pack
  • 17.280 lb.
• Carton - Number of Sub Packs
  • 8
• Carton - Pack Description
  • Carton
• Carton - SCC-14 Next Lower Level Sub Pack
  • 00781810000885
• Carton - Total Units
  • 8
• Case - SCC-14 Next Lower Level Sub Pack
  • 30781810000886
• Certification Agency
  • Proposition 65
• Class Code
  • B35
• Color Code
  • Brown
• Conductor - Copper Str Size
  • 500 kcmil
• Country of Origin
  • US
• Description - Invoice
  • LIMITER LUG ASSEMBLY
• Die Index
  • 20
• Dimension - AA Pad Orientation
  • 1.34 in
• Dimension - B Length inch
  • 2.75 in
• Dimension - D inch
  • 8.26 in
• Dimension - F Width Center to Center inch
  • 1.89 in
• Dimension - Length BB inch
  • 4.31 in
• Dimension - Length Overall inch
  • 11.5 in
• Dimension - Outside Diameter inch
  • 2.38 in
• Dimension - Strip Length inch
  • 3.25 in
• Each - Number of Sub Packs
  • 1
• Each - Pack Description
  • Each
• Each - Width
  • 2.38 in
• Freight Class Code
  • 16027000
• Harmonization Code
  • 8536904000
• Image Actual Or Representative
  • A
• Insulation
  • Y
• Insulation Type
  • Paper
• Lead Time
  • 12 wk
• Lowest Level UOM
  • Each
• Material
  • Copper
• MSDS Flag
  • Yes
• Order Multiple
  • 1 EA
• Package - Gross Weight per Pack
  • 17.28 lb.
• Package - GTIN - Package
  • 30781810000886
• Package Height
  • 7.75 in
• Package Length
  • 14 in
• Package - Number of Sub Packs
  • 8
• Package - Pack Description
  • Package
• Package Quantity
  • 8 EA
• Package - SCC-14 Next Lower Level Sub Pack
  • 00781810000885
• Package - Total Units
  • 8 EA
• Package Weight
  • 17.28 lb.
• Package Width
  • 10.5 in
• Pallet - GTIN - Package
  • 70781810000884
• Pallet Height
  • 47.625 in
• Pallet Length
  • 48.000 in
• Pallet Weight
  • 909.000 lb.
• Pallet Width
  • 40.000 in
• Plated
  • N
• Plating Type
  • Unplated
• Product Type
  • Compression
• Special Features
  • The Long MOLIMITER Differs From The Standard MOLIMITER Only In Its Extra Long Cable Socket, This Socket, With The End Seam In The MOLE Outlet Socket And Nut Assembly, Molimiters Which Have Burned Clear May Be Quickly Replaced, Size: 11-11/16 IN Length X 2-3/8 IN Outer-Diameter X 1-11/32 IN Cable Diameter Over Insulation, Conductor Range: 500 KCMIL,For Connection To Mole Use: Socket And Nut Assembly: Z34NR, Z Cone: Z3434, Outlet Size: 6 AWG Stranded - 600 KCMIL, Includes: With DURICOMP Shell And Rubber Sleeve For Paper-Lead Cables, Tools,Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y34A Tool, A34D Die Nest, Y34PR Die Indentor, (2) Indent, Y34BH Tool, Y34PR Die Indentor, (2) Indent, Y44B Tool, E34D Die Nest, Y44R Die Indentor, (2) Indent
• Standard Package Quantity
  • 8
• Standards - RoHS Compliance Status
  • CM
• Stock Indicator
  • N - Non-stock
• Sub Brand
  • NETWORK UNDERGROUND, MOLIMITER
• Sub Class Code
  • B35B97F
• Trade Name
  • MOLIMITER™
• Type
  • YFM-CPL, Long
• UL Listed
  • No
• Width
  • 2.38 in
