Burndy YEV28P37X75FX
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

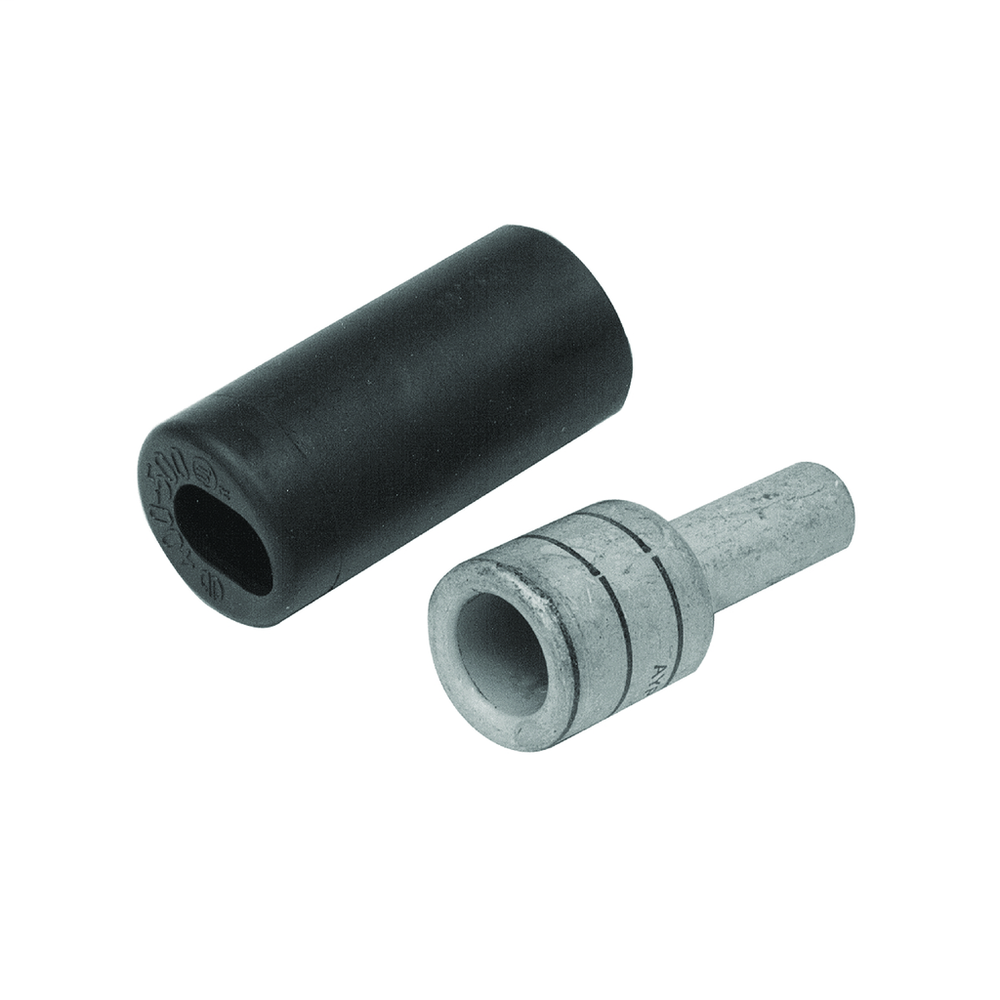

Cu Comp Adaptor Plug, 4/0 Str(550/#24)DLO Flex, 4/0 AWG(Code), 200(Navy), 3.11" L, Purple, 15 Index, 2/0 Pin Size, For Cu Cond.Pin Terminals and Adapters YEV28P37X75FX
Burndy YEV28P37X75FX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- No
- Standards - RoHS Compliance Status
- CM
Conductor Related
- Conductor - Copper DLO Size
- 4/0 (550/#24) DLO
- Conductor - Copper DLO Size Range
- 4/0 (550/#24) DLO
- Conductor - Copper Flex G Size
- 4/0 AWG
- Conductor - Copper Flex G Size Range
- 4/0 AWG
- Conductor - Copper Flex H Size
- 4/0 AWG
- Conductor - Copper Flex H Size Range
- 4/0 AWG
- Conductor - Copper Flex I Size
- 4/0 AWG
- Conductor - Copper Flex I Size Range
- 4/0 AWG
- Conductor - Copper Flex K Size
- 4/0 AWG
- Conductor - Copper Flex K Size Range
- 4/0 AWG
- Conductor - Copper Flex M Size
- 4/0 AWG
- Conductor - Copper Flex M Size Range
- 4/0 AWG
Dimensions
- Dimension - B Length fraction
- 2 in
- Dimension - B Length inch
- 1.99 in
- Dimension - Inside Diameter inch
- 0.63 in
- Dimension - Length Overall inch
- 3.11 in
- Dimension - L Length Overall mm
- 79 mm
- Dimension - Outside Diameter inch
- 0.77 in
- Dimension - P inch
- 0.75 in
- Dimension - Strip Length inch
- 2-1/16
- Equivalent Cross Pin Size
- 0.37 in. - 2/0 AWG
- Equivalent Pin Size
- 2/0 AWG
Electrical Ratings
- Rating - KVA
- 35 kV
- Rating - Minimum Voltage
- 600
- Voltage - Maximum
- 35000
General
- Application
- For Copper Conductors
- Color Code
- Purple
- Connector Type
- Pin Terminal
- Die Index
- 15
- Feature - Barrel Style
- Chamfered
- Insulation
- Y
- Material
- Copper
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Sub Brand
- HYPLUG
- Temperature Rating
- 194
- Trade Name
- HYPLUG™
- Type
- Copper Pin Adapters
- UPC
- 781810037959
- UPC 12 Digit
- 7818100379599
Logistics
- Minimum Pack Quantity
- 1
