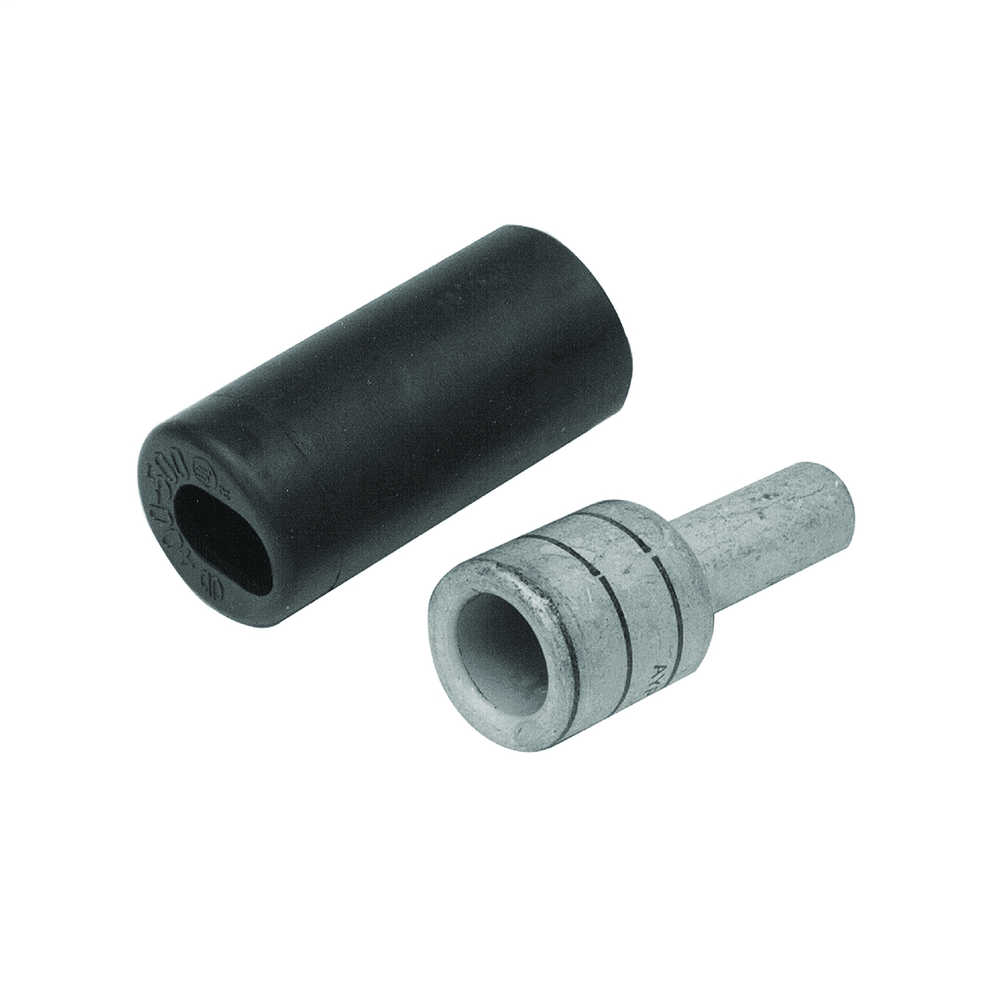

Burndy YE38P71X142FX
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Burndy YE38P71X142FX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
- UL Listed
- No
Conductor Related
- Conductor - Copper DLO Size
- 535 DLO
- Conductor - Copper DLO Size Range
- 535.3 (1325/#24) DLO
- Conductor - Copper Flex G Size
- 550 kcmil
- Conductor - Copper Flex H Size
- 550 kcmil
- Conductor - Copper Flex I Size
- 550 kcmil
- Conductor - Copper Str Size
- 550 kcmil
Dimensions
- Dimension - A Outside Diameter inch
- 0.71 in
- Dimension - B Length fraction
- 3-5/16 in
- Dimension - B Length inch
- 3.29 in
- Dimension - B Outside Diameter inch
- 1.25 in
- Dimension - Inside Diameter inch
- 0.98 in
- Dimension - Length Overall inch
- 5.3 in
- Dimension - L Length Overall mm
- 135 mm
- Dimension - Outside Diameter inch
- 1.25 in
- Dimension - P inch
- 1.42 in
- Dimension - Strip Length inch
- 3.38 in
- Equivalent Cross Pin Size
- 0.71 in. - 500 kcmil
- Equivalent Pin Size
- 500 kcmil
Electrical Ratings
- Rating - KVA
- 35 kV
- Rating - Minimum Voltage
- 600
- Voltage - Maximum
- 35000
General
- Application
- For Copper Conductors
- Color Code
- Pink
- Connector Type
- Pin Terminal
- Die Index
- L99
- Feature - Barrel Style
- Chamfered
- Insulation
- Y
- Material
- Copper
- Pin Type
- Straight
- Plated
- Yes
- Plating Type
- Tin plated
- Sub Brand
- HYPLUG
- Type
- Copper Pin Adapters
- UPC
- 781810037744
- UPC 12 Digit
- 7818100377444
Logistics
- Minimum Pack Quantity
- 1
