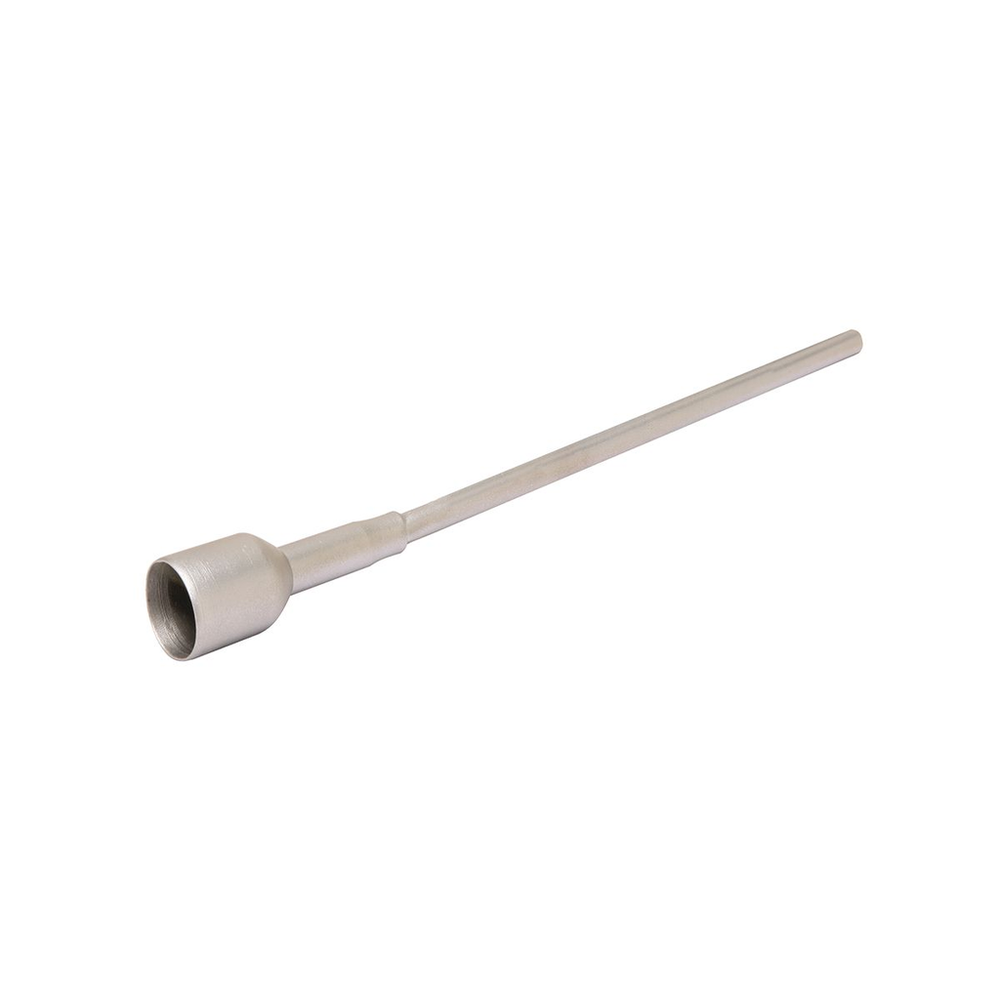

Burndy YE31LH96
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Oil and water-tight terminal with shrouded, tin-plated,CU barrel and brazed plug Used for terminating insulated CU conductor at cutout or transformer,12.25 IN L.Oil and water-tight terminal with shrouded, tin-plated,CU barrel and brazed plug Used for terminating insulated CU conductor at cutout or transformer,12.25 IN L.
Burndy YE31LH96 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Contact Manufacturer
- UL Recognized
- No
Specifications
- Application
- Wire Termination
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.250x12.943x6.688 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 14.200 lb.
- Carton - Number of Sub Packs
- 20
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810023402
- Carton - Total Units
- 20
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810023403
- Certification Agency
- Proposition 65
- Class Code
- B55
- Conductor - Copper Str Compact Size
- 350 KCMIL
- Conductor - Copper Str Size
- 350 KCMIL
- Conductor - Copper Str Size Range
- 350 kcmil
- Conductor - Material
- COPPER
- Conductor Size
- 350 KCMIL
- Conductor Type
- CODE
- Connector Type
- INLINE PIN
- Country of Origin
- US
- Description - Invoice
- 350 CU PIN TERM W/SHROUD
- Description - Slang
- Shrouded Compression Pin Terminals
- Die Index
- O
- Dimension - B Length fraction
- 2-15/16 in
- Dimension - B Length inch
- 2.94 in
- Dimension - Inside Diameter inch
- 1.03 in
- Dimension - Length BB inch
- 1.25 in
- Dimension - Length Overall inch
- 12.25 in
- Dimension - L Length Overall mm
- 311 mm
- Dimension - P inch
- 8.06 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.3 in
- Feature - Barrel Style
- Shrouded
- Finish
- Tin-Plated
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Insulation
- Y
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- COPPER
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 14.2 lb.
- Package - GTIN - Package
- 30781810023403
- Package Height
- 4.63 in
- Package Length
- 12.63 in
- Package - Number of Sub Packs
- 20 EA
- Package - Pack Description
- Package
- Package Quantity
- 20 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810023402
- Package - Total Units
- 20 EA
- Package Weight
- 14.2 lb.
- Package Width
- 6.38 in
- Pallet - GTIN - Package
- 70781810023401
- Pallet Height
- 47.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2430.600 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- TERMINAL
- Special Features
- Features: Oil And Water-Tight Terminal With Shrouded, Tin-Plated, Copper Barrel And Brazed Plug, Recommended For Terminating Insulated Copper Conductor At Cutout, Transformer And Arrestor, Or For Joining Insulated Copper Riser To Overhead Conductor, Shroud Prevents Seepage Of Water Or Moisture Into Conductor Strands And Minimizes Taping, To Obtain A Tight Fit On Some Insulations In The Shroud It May Be Necessary To Either Pencil The Insulation Down, Or Build It Up With Tape, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W-O Die, (5), Y35, Y750 Tool, U31RT Die, (2), Y45 Tool, U31RT Die With PT-6515 Adapter, (2), Y46 Tool, U31RT Die With PUADP-1 Adapter, (2), Die Index: 0 Element A, Plug/pin Length: 8 IN, Plug/pin Diameter: 4/0 AWG Solid
- Standard Package Quantity
- 20
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYSEALPLUG
- Sub Class Code
- B55BIFF
- Temperature Rating
- 194
- Trade Name
- HYSEALPLUG™
- Type
- Shrouded Pin Terminals
- UL Listed
- No
- Voltage - Maximum
- 35000
- Width
- 1.3 in
