Burndy YE30LH89
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

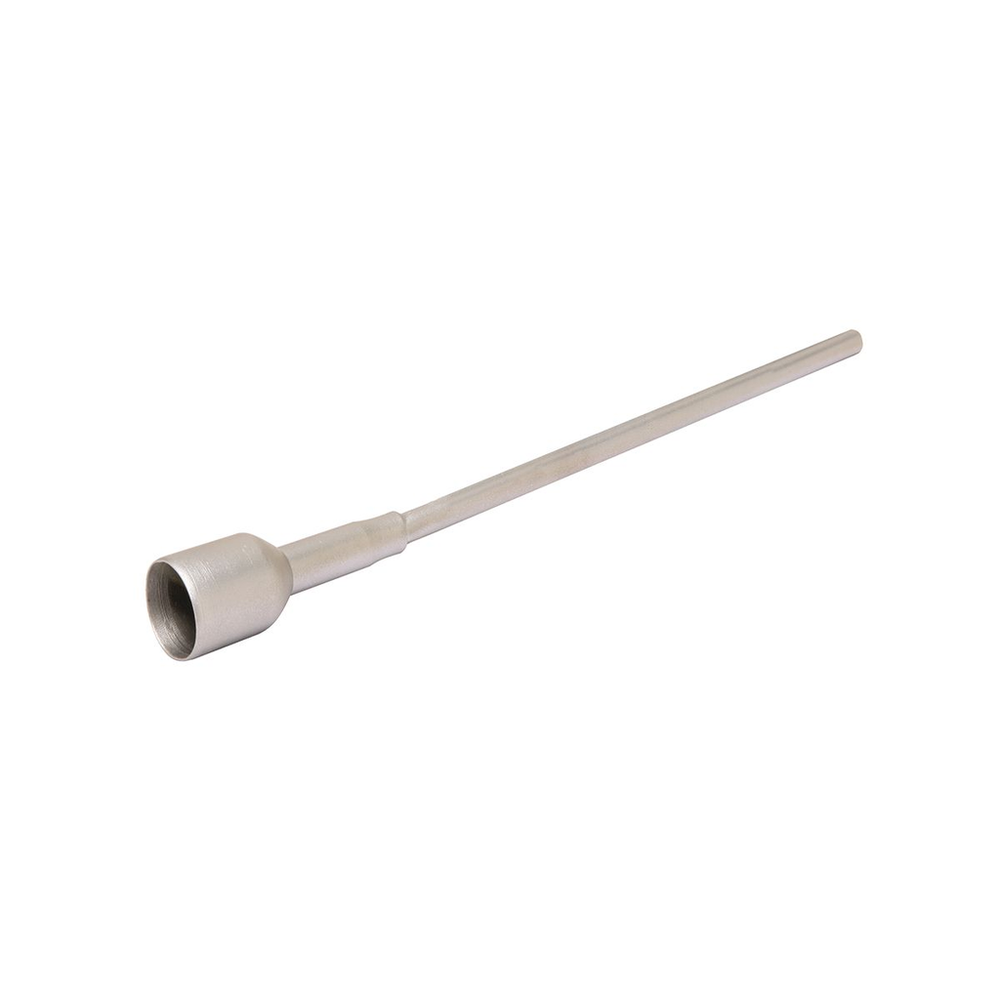

Oil and water-tight terminal with shrouded, tin-plated, CU barrel and brazed plug Used for terminating insulated CU conductor at cutout or transformer,7.25 IN L.Terminal plug
Burndy YE30LH89 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Wire Termination
- Base Unit of Measure
- EA
- BOX SIZE
- 4.875x9.313x6.443 (in)
- Carton - Gross Weight per Pack
- 12.500 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810023433
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810023434
- Certification Agency
- Proposition 65
- Class Code
- B55
- Conductor - Copper Flex G Size
- 4/0 AWG
- Conductor - Copper Flex G Size Range
- 4/0 AWG
- Conductor - Copper Flex H Size
- 4/0 AWG
- Conductor - Copper Flex H Size Range
- 4/0 AWG
- Conductor - Copper Flex I Size
- 4/0 AWG
- Conductor - Copper Flex I Size Range
- 4/0 AWG
- Conductor - Copper Flex K Size
- 4/0 AWG
- Conductor - Copper Flex K Size Range
- 4/0 AWG
- Conductor - Copper Flex M Size
- 4/0 AWG
- Conductor - Copper Flex M Size Range
- 4/0 AWG
- Conductor - Copper Str Compact Size
- 300 KCMIL
- Conductor - Copper Str Size
- 300 KCMIL
- Conductor - Material
- COPPER
- Conductor Size
- 300 KCMIL
- Conductor Type
- CODE
- Connector Type
- INLINE PIN
- Country of Origin
- US
- Description - Slang
- Shrouded Compression Pin Terminals
- Die Index
- 166
- Dimension - B Length fraction
- 1-1/16 in
- Dimension - B Length inch
- 1.09 in
- Dimension - Length BB inch
- 1.00 in
- Dimension - Length Overall inch
- 7.25 in
- Dimension - L Length Overall mm
- 184 mm
- Dimension - P inch
- 4.00 in
- Dimension - Width inch
- 0.91 in
- Feature - Barrel Style
- Shrouded
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Insulation
- Y
- Lead Time
- 12 wk
- Material
- COPPER
- Package - GTIN - Package
- 30781810023434
- Package Quantity
- 25 EA
- Package - Total Units
- 25 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810023432
- Pallet Height
- 44.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1920.000 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- TERMINAL
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B55BIFF
- Temperature Rating
- 194
- Trade Name
- HYLUG™
- Type
- Shrouded Pin Terminals
- UL Listed
- No
- Voltage - Maximum
- 35000
