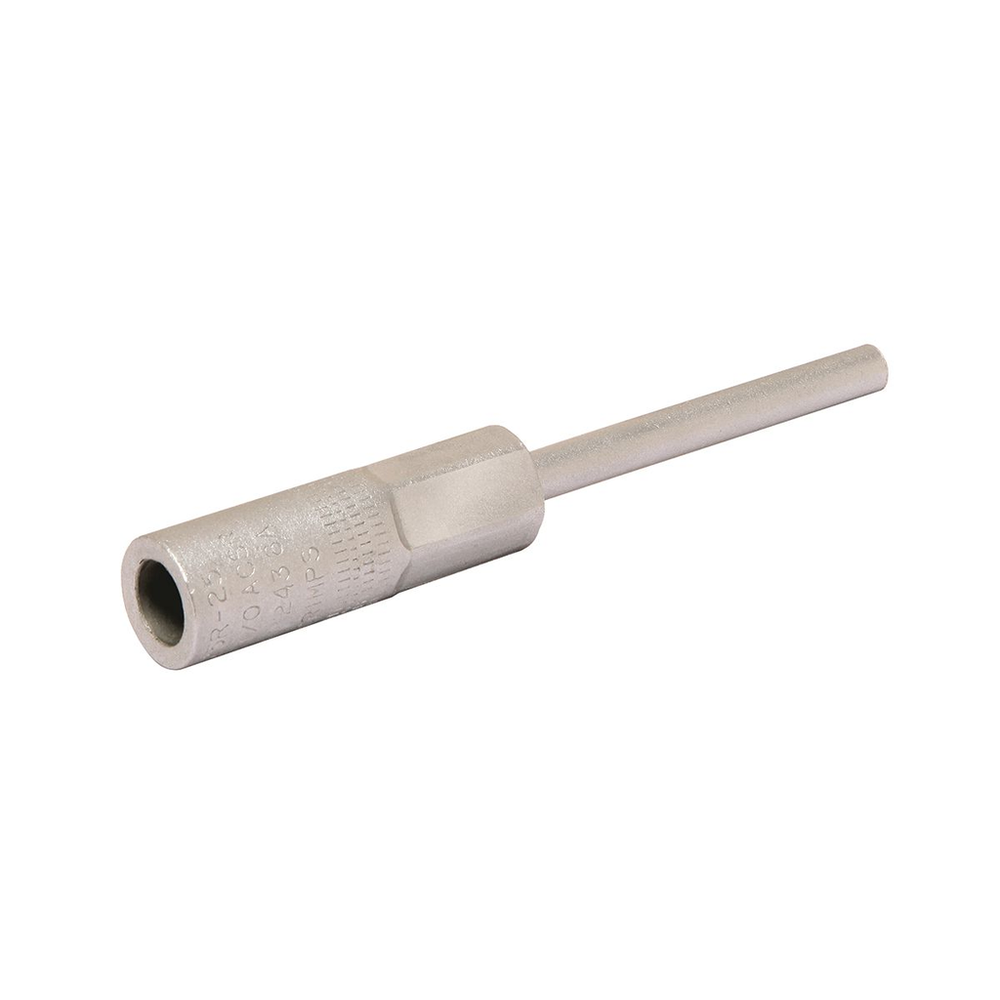

Burndy YE2R25
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Terminal Plug for AL and ACSR, #1-#2 AL,#2 ACSR, 4.62 in Length, Tin Plated, Orange, BG or 5/8-1 or 243 or 8A Index.Terminal Plug for AL and ACSR, #1-#2 AL, #2 ACSR, 4.62 in Length, Tin Plated, Orange, BG or 5/8-1 or 243 or 8A Index
Burndy YE2R25 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- EU RoHS Indicator
- Yes
Specifications
- Application
- For Terminating Aluminum Or ACSR Cable At Cut-Out, Transformer And Arrestor
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 4.005x6.063x3.193 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 2.500 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810154106
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810154107
- Certification Agency
- Proposition 65
- Class Code
- B30
- Color Code
- Orange
- Conductor - ACSR Str Size
- 2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG
- Conductor - ACSR Str Size Range
- 2 (6/1) Sparrow AWG-2 (7/1) Sparate AWG
- Conductor - AL Str Size
- 2 AWG;1 AWG
- Conductor - AL Str Size Range
- 2 AWG-1 AWG
- Country of Origin
- US
- Description - Invoice
- 2 AL PIN TERM
- Die Index
- K-5/8-1;243;BG;8A
- Dimension - Length Overall inch
- 4.625 in
- Dimension - L Length Overall mm
- 117 mm
- Dimension - Outside Diameter inch
- 0.65 in
- Dimension - P inch
- 2.50 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.65 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 2.5 lb.
- Package - GTIN - Package
- 30781810154107
- Package Height
- 3.38 in
- Package Length
- 5.75 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810154106
- Package - Total Units
- 25 EA
- Package Weight
- 2.5 lb.
- Package Width
- 2.88 in
- Pallet - GTIN - Package
- 70781810154105
- Pallet Height
- 45.800 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2445.000 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin
- Prefilled Oxide Inhibitor
- N
- Product Type
- Compression
- Special Features
- Features: Aluminum HYPLUG With Tin-Plated Copper Plug For Terminating Aluminum Or ACSR Cable At Cut-Out, Transformer And Arrestor, Plug May Be Bent To Desired Angle For Easier Insertion, Three Die Sets Accommodate 4 AWG Stranded - 500 KCMIL, Terminals Are Pre-Filled With PENE -TROX A-13 Joint Compound And Sealed With Color Coded End Caps, Die Index: BG Or 243 Element A, Color Code: Red, Plug/pin Diameter: 2 AWG Solid, Plug/pin Length: 2-1/2 IN, Tools, Die Set Catalog Number, And (number Of Crimps): MD7, MD6 Tool, BG, WBG, W243 Die, Y750, Y35 Tool, U-BG, U243, UK5/8-1T Die, Y45 Tool, U Die With Adapter PT-6515, Y46 Tool, U Die With Adapter PUADP-1, Y48BH Tool, C243 Die, Y60BH Tool, L243 Die
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYPLUG
- Sub Class Code
- B30B48F
- Trade Name
- HYPLUG™
- Type
- YE-R
- Width
- 0.65 in
