Burndy YE26R60
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

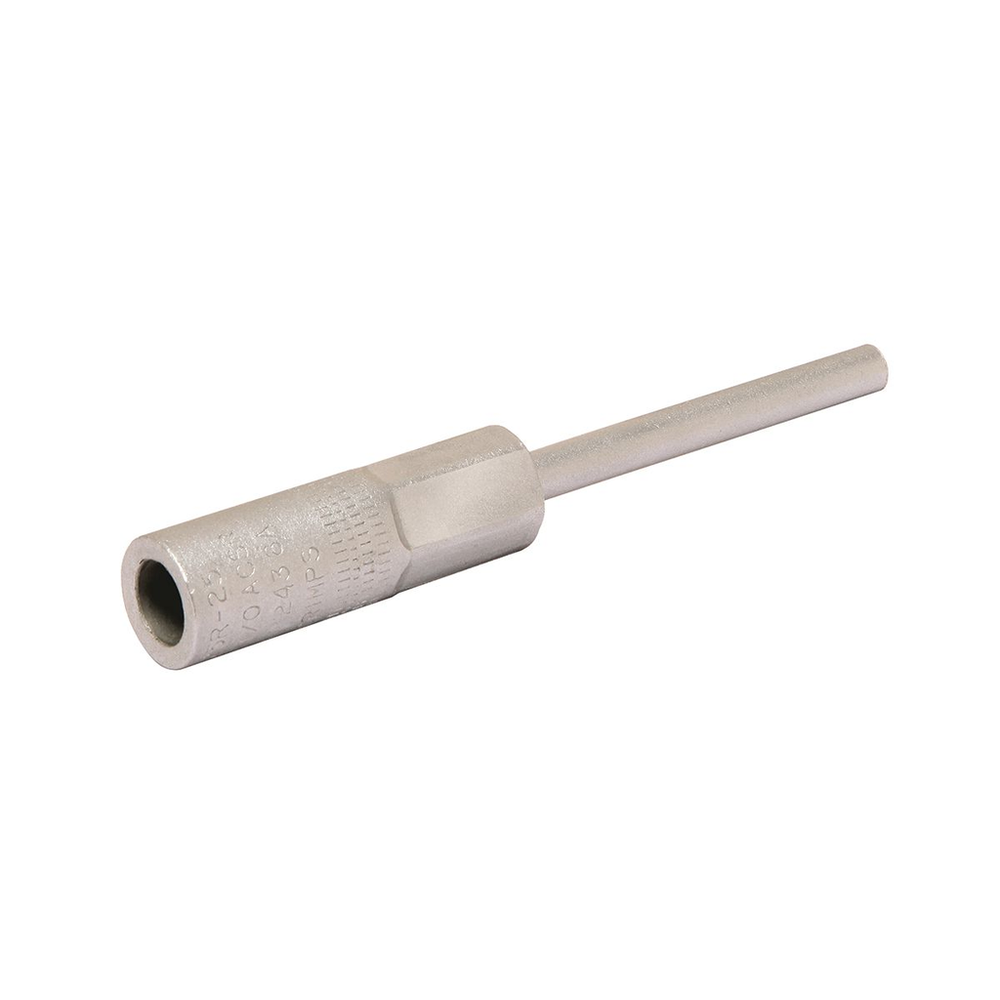

Aluminium Hyplug Connector, 2/0 Str. Al 2/0 ACSR, 9-1/2 in L, Terminal Plug for Aluminum and ACSR.Aluminum HYPLUG™ Connector, 2/0 Str. Al 2/0 ACSR, 9-1/2 in L, Terminal Plug for Aluminum and ACSR
Burndy YE26R60 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Terminating Aluminum Or ACSR Cable At Cut-Out, Transformer And Arrestor
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.250x12.943x6.688 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 9.250 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810154205
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810154206
- Certification Agency
- Proposition 65
- Class Code
- B30
- Color Code
- Gray
- Conductor - ACSR Str Size
- 2/0 (6/1) Quail AWG
- Conductor - ACSR Str Size Range
- 2/0 (6/1) Quail AWG
- Conductor - AL Str Size
- 2/0 AWG
- Conductor - AL Str Size Range
- 2/0 AWG
- Country of Origin
- US
- Description - Invoice
- 2/0 AL PIN TERM
- Die Index
- 249;840;11A
- Dimension - Length Overall inch
- 9.50 in
- Dimension - L Length Overall mm
- 241 mm
- Dimension - P inch
- 6 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.91 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 9.25 lb.
- Package - GTIN - Package
- 30781810154206
- Package Height
- 4.63 in
- Package Length
- 12.63 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810154205
- Package - Total Units
- 25 EA
- Package Weight
- 9.25 lb.
- Package Width
- 6.38 in
- Pallet - GTIN - Package
- 70781810154204
- Pallet Height
- 47.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1599.000 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin
- Prefilled Oxide Inhibitor
- N
- Product Type
- Compression
- Special Features
- Features: Aluminum HYPLUG With Tin-Plated Copper Plug For Terminating Aluminum Or ACSR Cable At Cut-Out, Transformer And Arrestor, Plug May Be Bent To Desired Angle For Easier Insertion, Three Die Sets Accommodate 4 AWG Stranded - 500 KCMIL, Terminals Are Pre-Filled With PENE -TROX A-13 Joint Compound And Sealed With Color Coded End Caps, Die Index: 249 Or 840 Element A, Color Code: Gray, Plug/pin Diameter: 1/0 AWG Solid, Plug/pin Length: 6 IN, Tools, Die Set Catalog Number, And (number Of Crimps): MD7, MD6 Tool, W249 Or W-K840 Die, Y750, Y35 Tool, U249, U-K840T Die, Y45 Tool, U Die With Adapter PT-6515, Y46 Tool, U Die With Adapter PUADP-1, Y48BH Tool, C249 Die, Y60BH Tool, L249 Die
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYPLUG
- Sub Class Code
- B30B48F
- Trade Name
- HYPLUG™
- Type
- YE-R
- UL Listed
- No
- Width
- 0.91 in
