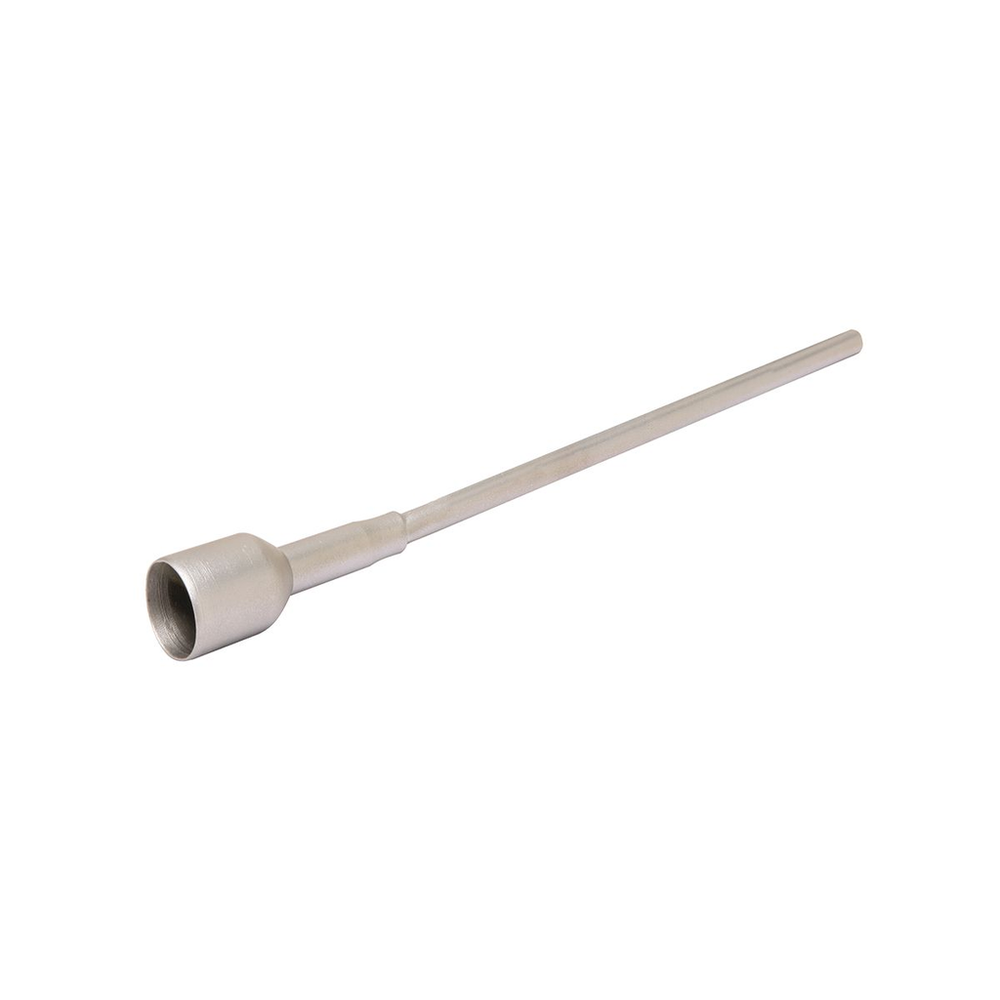

Burndy YE25G49
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Terminal plug, 1/0 AWG, 600V-35KV,Tin plated.Terminal plug, 1/0 AWG, 600V-35KV,Tin plated
Burndy YE25G49 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Wire Termination
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 4.875x9.313x6.443 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 16.000 lb.
- Carton - Number of Sub Packs
- 100
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810053409
- Carton - Total Units
- 100
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810053400
- Certification Agency
- Proposition 65
- Class Code
- B55
- Conductor - Copper Str Compact Size
- 1/0 AWG
- Conductor - Copper Str Size
- 1/0 AWG
- Conductor - Copper Str Size Range
- 1/0
- Conductor - Material
- COPPER
- Conductor Size
- 1/0 AWG
- Conductor Type
- CODE
- Connector Type
- INLINE PIN
- Construction Material - Main
- Copper
- Country of Origin
- US
- Description - Invoice
- HYSEAL PLUG
- Description - Slang
- Shrouded Compression Pin Terminals
- Dimension - B Length fraction
- 1-1/8 in
- Dimension - B Length inch
- 1.12 in
- Dimension - Length Overall inch
- 4.62 in
- Dimension - L Length Overall mm
- 117 mm
- Dimension - Outside Diameter inch
- 0.51 in
- Dimension - P inch
- 3.00 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.51 in
- Feature - Barrel Style
- Shrouded
- Finish
- Tin-Plated
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Insulation
- Y
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 16 lb.
- Package - GTIN - Package
- 30781810053400
- Package Quantity
- 100 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810053408
- Pallet Height
- 44.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1965.000 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- TERMINAL
- Special Features
- Oil and water-tight terminal with shrouded, tin-plated, copper barrel and brazed plug
- Standard Package Quantity
- 100
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- Pin Terminals, HYSEALPLUG
- Sub Class Code
- B55BIFF
- Temperature Rating
- 194
- Trade Name
- HYSEALPLUG™
- Type
- YE
- UL Listed
- No
- Voltage - Maximum
- 35000
- Width
- 0.51 in
