Description

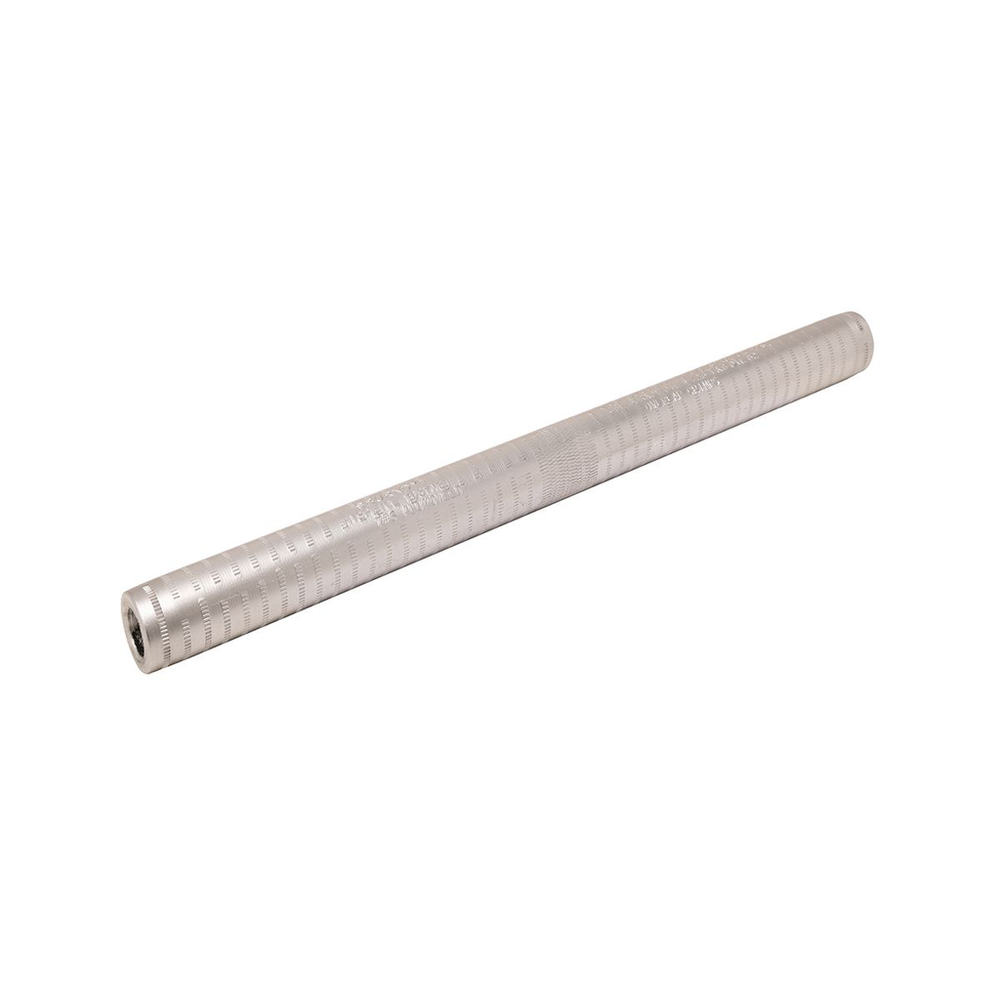

Full Tension Sleeve, 7 #9, 3 #6, 10-3/8 in L, Full-tension splice for Alumoweld transmission lines.Full Tension Sleeve, 7 #9, 3 #6, 10-3/8 in L, Full-tension splice for Alumoweld transmission lines
Burndy YDS7M9T is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Alumoweld Transmission Lines, Sleeve Is High Strength Aluminum Alloy For Optimum Corrosion Resistance
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.250x12.943x6.688 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 8.400 lb.
- Carton - Number of Sub Packs
- 20
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810015438
- Carton - Total Units
- 20
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810015439
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - Alumoweld Size
- 7#9;3#6
- Conductor - Alumoweld Size Range
- 7#9;3#6
- Conductor - AWAC Size
- 2
- Connector Type
- Splice
- Country of Origin
- US
- Description - Invoice
- 79 FULL TEN AL WELD
- Die Index
- 677
- Dimension - B Length fraction
- 5-7/50 in
- Dimension - B Length inch
- 5.14 in
- Dimension - Length Overall inch
- 10.41 in
- Dimension - L Length Overall mm
- 264 mm
- Dimension - Outside Diameter inch
- 0.8 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- .80 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- RUS
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 8.4 lb.
- Package - GTIN - Package
- 30781810015439
- Package Height
- 4.63 in
- Package Length
- 12.63 in
- Package - Number of Sub Packs
- 20
- Package - Pack Description
- Package
- Package Quantity
- 20 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810015438
- Package - Total Units
- 20 EA
- Package Weight
- 8.4 lb.
- Package Width
- 6.38 in
- Pallet - GTIN - Package
- 70781810015437
- Pallet Height
- 47.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1456.200 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Full-Tension Splice For Alumoweld Transmission Lines, Five Connectors Accommodate Eight Conductor Sizes, Sleeve Is Pre-Filled With PENETROX Joint Compound And Capped, Sleeve is high strength aluminum alloy for optimum corrosion resistance, Die Index: 677 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U677 Die, (10), Y45 Tool, U677 Die With PT-6515 Adapter, (10), Y46 Tool, U677 Die With PUADP-1 Adapter, (10)
- Standard
- RUS
- Standard Package Quantity
- 20
- Standards - Industry Standards Met
- RUS
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- FULL TENSION SLEEVE, HYSPLICE
- Sub Class Code
- B30B43F
- Trade Name
- HYSPLICE™
- Type
- YDS-M-T
- UL Listed
- No
- Width
- .80 in
