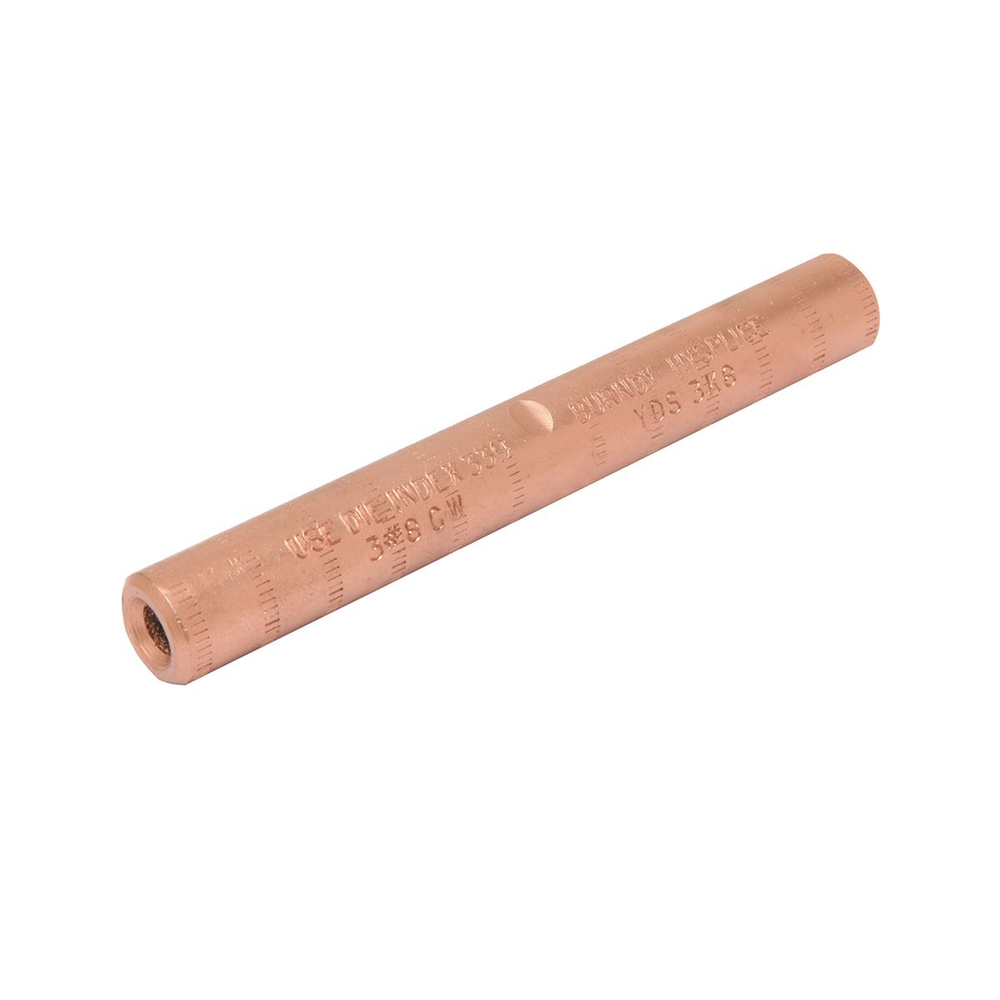

Burndy YDS6WK
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HYSPLICE Single Sleeve Full Tension Splice, Accommodates Wire: #6 Sol COPPERWELD, Die Index: 162 or 276, Made of copper tubing, Installed with standard tools and dies.CU Full Tension Splice, Accommodates Wire: #6 Sol COPPERWELD, Die Index: 162 or 276
Burndy YDS6WK is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Copperweld Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 6.750x9.688x7.753 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 30.000 lb.
- Carton - Number of Sub Packs
- 150
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810014585
- Carton - Total Units
- 150
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810014586
- Certification Agency
- Proposition 65
- Class Code
- B31
- Conductor - Copper Solid Size
- 6 AWG
- Conductor - Copper Str Size
- 1 AWG
- Conductor - CopperWeld C Solid Size
- 6 AWG
- Conductor - CopperWeld Solid Size Range
- 6 AWG
- Connector Type
- Splice
- Construction Material - Main
- Copper
- Country of Origin
- US
- Description - Invoice
- SPLICE,4.04 IN L
- Die Index
- 276;162
- Dimension - B Length inch
- 1.77 in
- Dimension - Length Overall inch
- 4.04 in
- Dimension - L Length Overall mm
- 103 mm
- Dimension - Outside Diameter inch
- 0.48 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.48 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 150 EA
- Package - Gross Weight per Pack
- 30 lb.
- Package - GTIN - Package
- 30781810014586
- Package Quantity
- 150 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810014584
- Pallet Height
- 46.250 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1485.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Crimps Required
- 6
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- N
- Product Type
- Compression
- Special Features
- Features: Full-Tension HYSPLICE Designed To Exceed The Minimum Rated Breaking Strength Of, 30 PCT Conductivity Extra High Strength Copperweld, And Lower Strength Conductors, Made Of Pure Copper Tubing, Installed With HYSPLICE Tools And Dies, Die Index: 162 Or 276, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W162 Die, (6), Y35, Y750 Tool, U276 Die, (6), Y45 Tool, U276 Die With PT-6515 Adapter, (6), Y46 Tool, U276 Die With PUADP-1 Adapter, (6), Conductor Type: Copperweld
- Standard Package Quantity
- 150
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYSPLICE
- Sub Class Code
- B31B53F
- Trade Name
- HYSPLICE™
- Type
- YDS-K
- UL Listed
- No
- Width
- 0.48 in
