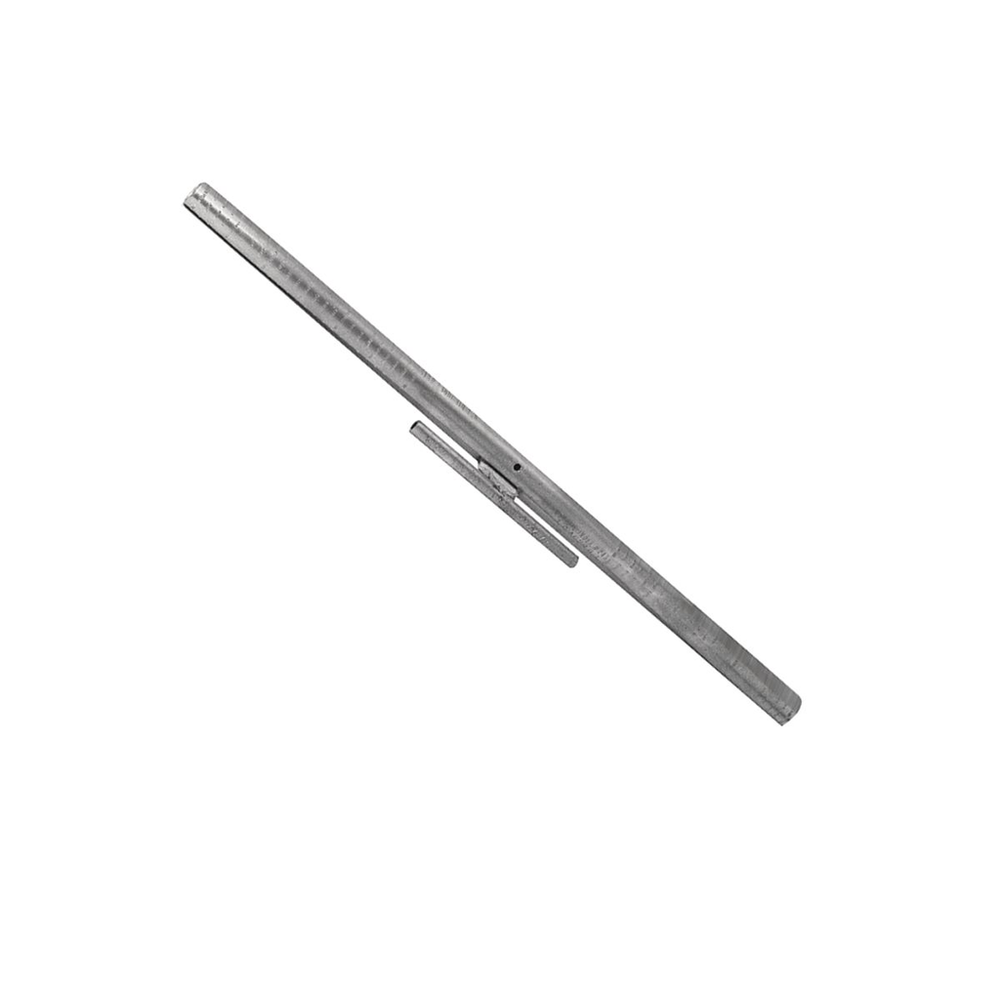

Burndy YDS36R
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
2-piece, full tension ACSR splice consists of steel inner sleeve and AL outer sleeve, Inner Sleeve: 7.88 IN L, Outer Sleeve: 26.38 IN L.2-piece, full tension ACSR splice consists of steel inner sleeve and AL outer sleeve, Inner Sleeve: 7.88 IN L, Outer Sleeve: 26.38 IN L
Burndy YDS36R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For ACSR, Compressed And Compact Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 7.375x29.813x6.443 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 25.100 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810015759
- Carton - Total Units
- 10
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810015750
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - ACSR Str Size
- 477.0 (26/7) Hawk kcmil
- Conductor - ACSR Str Size Range
- 477.0 (26/7) Hawk kcmil
- Conductor Type
- ACSR C Str-Size;AL C Str-Size
- Connector Type
- Splice
- Country of Origin
- US
- Description - Invoice
- 477 ACSR 2 PIECE SPLCE,7.88 IN L STL SLV
- Die Index
- 350;261
- Die Index - Element A
- 350
- Die Index - Element B
- 261
- Dimension - Aluminum Sleeve Length inch
- 26.375 in
- Dimension - Length Overall inch
- 7.89 in
- Dimension - L Length Overall mm
- 200 mm
- Dimension - Steel Sleeve Length inch
- 7.875 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.359 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 10 EA
- Package - Gross Weight per Pack
- 25.1 lb.
- Package - GTIN - Package
- 30781810015750
- Package Height
- 29.5 in
- Package Length
- 6.75 in
- Package - Number of Sub Packs
- 10
- Package - Pack Description
- Package
- Package Quantity
- 10 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810015759
- Package - Total Units
- 10 EA
- Package Weight
- 25.1 lb.
- Package Width
- 6.13 in
- Pallet - GTIN - Package
- 70781810015758
- Pallet Height
- 42.625 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 923.500 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Two-Piece, Full Tension HYSPLICE, Consists Of Aluminum Outer Sleeve And Steel Inner Sleeve, Tapered Outer Sleeve Provides Gradual Transition Of Stress, Filler Holes Provided For PENETROX Joint Compound, Sizes 1/0 And Larger Supplied With Plugs For Filler Hole, Installed With Standard HYSPLICE Tools And Dies (Thru 556 With Y35 Or Y750 HYPRESS), Aluminum And Steel Sleeves Can Be Ordered Separately Or In Sets, Die Index: 350 Element A, 261 Element B, Conductor Type: ACSR, Compressed, Compact, Tools, Die Set Catalog Number, And (number Of Crimps): Y35 Tool, U350 Die, (12), Y750 Tool, U261 Die, (12), Y45 Tool, U Die With Adapter PT-6515, Y46 Tool, U Die With Adapter PUADP-1, Y48B Tool, C350, C261 Die, (4), Y60BHU Tool, L350, L261 Die, (4), Includes: YDS37RP1 Aluminium Sleeve And YDS36RP2 Steel Sleeve
- Standard Package Quantity
- 10
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYSPLICE
- Sub Class Code
- B30B43F
- Trade Name
- HYSPLICE™
- Type
- YDS-R Set
- UL Listed
- No
- Width
- 1.359 in
