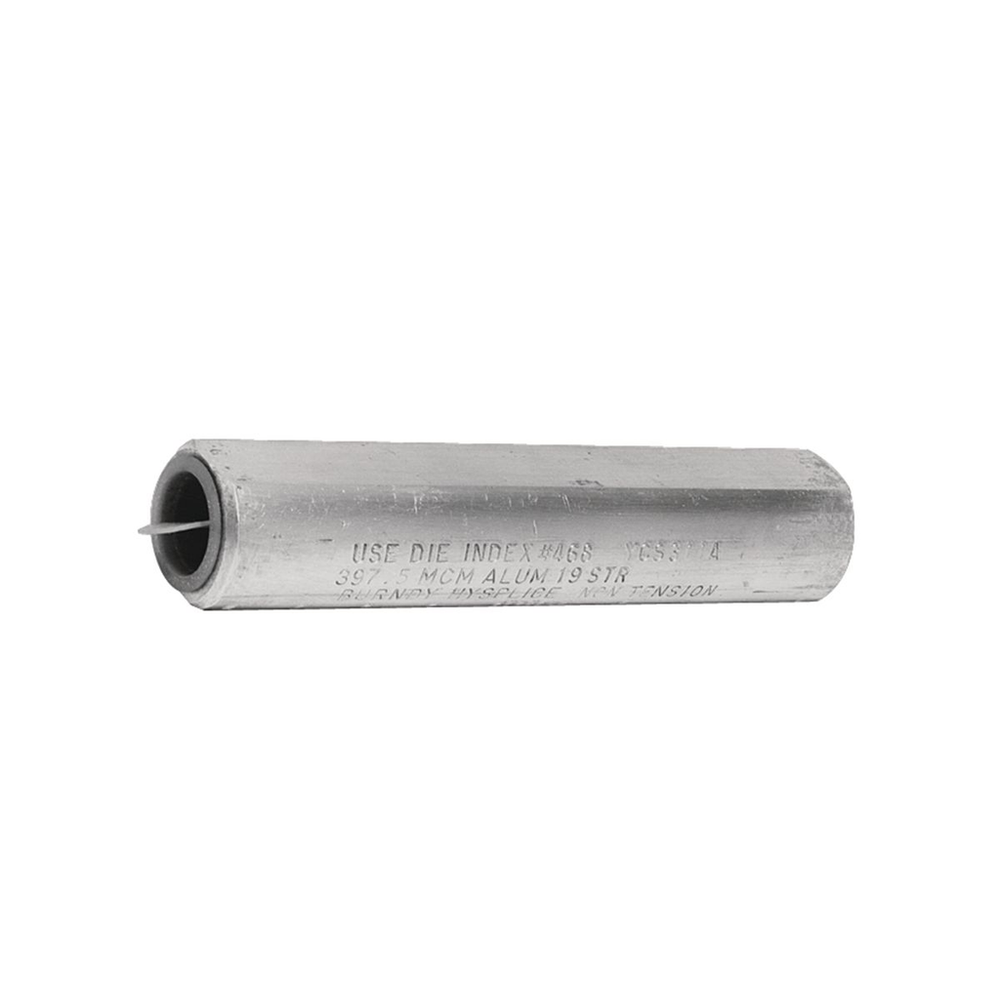

Burndy YDS351AT
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Hysplice, 556.5 (19, 37) kcmil, 12-3/4 in L, Full Tension Sleeve for All Aluminum Compressed and Compact Conductors.HYSPLICE™, 556.5 (19, 37) kcmil, 12-3/4 in L, Full Tension Sleeve for All Aluminum Compressed and Compact Conductors
Burndy YDS351AT is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For All Aluminum Compressed And Compact Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 6.625x14.563x8.313 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 12.500 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810015988
- Carton - Total Units
- 10
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810015989
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - AL Str Size
- 556.5
- Conductor - AL Str Size Range
- 556.5
- Conductor Type
- AL C Str-Size
- Connector Type
- Splice
- Country of Origin
- US
- Description - Invoice
- 556 AL FULL TEN SPLICE
- Die Index
- 261
- Dimension - B Length fraction
- 6-3/10 in
- Dimension - B Length inch
- 6.3 in
- Dimension - Length Overall inch
- 25.63 in
- Dimension - L Length Overall mm
- 651 mm
- Dimension - Outside Diameter inch
- 1.39 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.39 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Insulation
- Y
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 12.5 lb.
- Package - GTIN - Package
- 30781810015989
- Package Height
- 6 in
- Package Length
- 14.25 in
- Package - Number of Sub Packs
- 10
- Package - Pack Description
- Package
- Package Quantity
- 10 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810015988
- Package - Total Units
- 10 EA
- Package Weight
- 12.5 lb.
- Package Width
- 8 in
- Pallet - GTIN - Package
- 70781810015987
- Pallet Height
- 45.500 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1170.000 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Full-Tension HYSPLICE Sleeve Made Of Aluminum Tubing With Staked-In Cable Stop, Sizes 1/0 And Larger Tapered For Gradual Transition Of Stress, Installed With HYSPLICE Tools And Dies, Pre-Filled With PENETROX Joint Compound And Capped, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U261 Die, (9), Y45 Tool, U261 Die With PT-6515 Adapter, (9), Y46 Tool, U261 Die With PUADP-1 Adapter, (9), Y48B Tool, C261 Die, (3), Y60BHU Tool, L261 Die, (3), Die Index: 261 Element A, Conductor Type: Aluminum, Compressed Aluminum, Compact Aluminum
- Standard Package Quantity
- 10
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYSPLICE
- Sub Class Code
- B30B43F
- Trade Name
- HYSPLICE™
- Type
- YDS-AT
- UL Listed
- No
- Width
- 1.39 in
