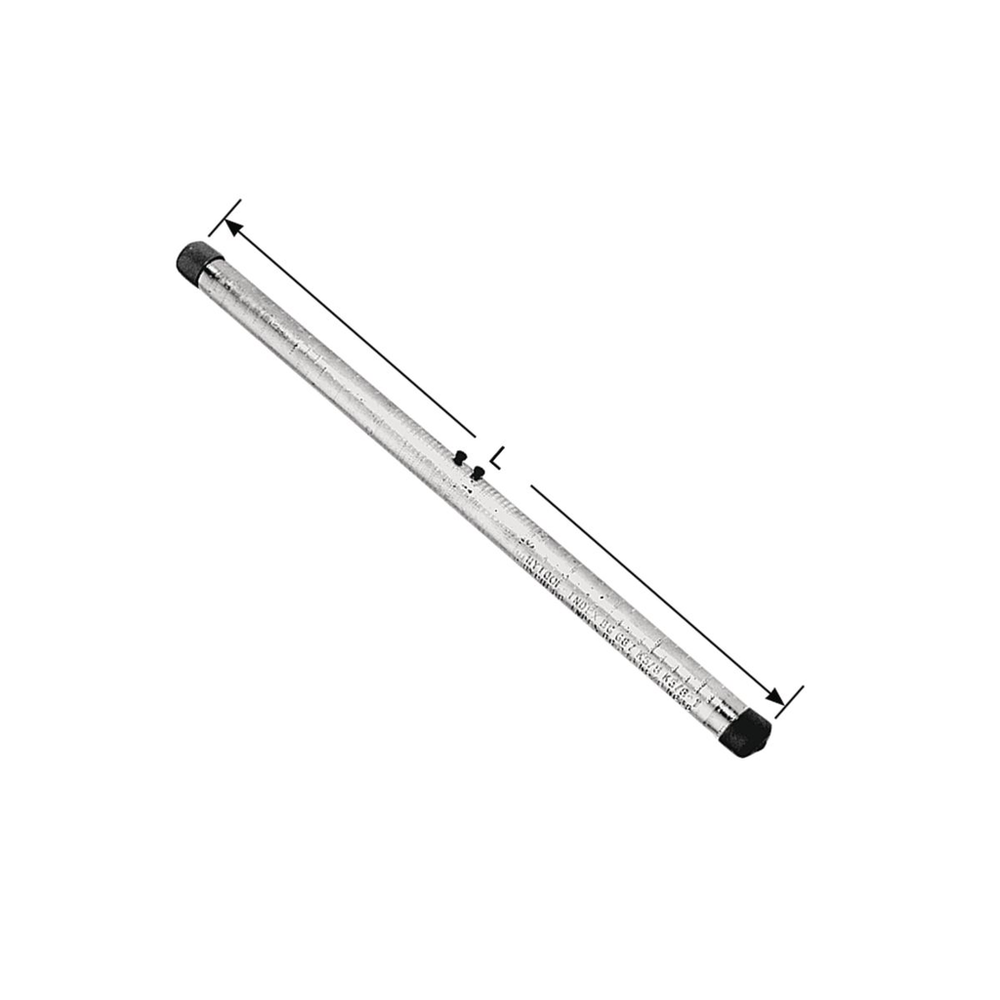

Burndy YDS321RLY
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
One piece full tension aluminum splice designed to eliminate possible basketing of conductor. Installed by crimping from end of connector towards the center, Accommodates ACSR with aluminized steel core: 336.4 ACSR (18-1),336.4 AAC (19).1-piece full tension AL splice for ACSR with aluminized steel core
Burndy YDS321RLY is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For ACSR, Aluminum, 6201 And 5005 Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 6.625x22.813x5.943 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 27.400 lb.
- Carton - Number of Sub Packs
- 20
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810015940
- Carton - Total Units
- 20
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810015941
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - ACSR Str Size
- 336.4 (18/1) Merlin
- Conductor - ACSR Str Size Range
- 336.4 (18/1) Merlin
- Conductor - AL Str Size
- 336.4
- Conductor - AL Str Size Range
- 336.4
- Conductor Type
- ACSR C Str-Size;AL C Str-Size
- Connector Type
- Splice
- Country of Origin
- US
- Description - Invoice
- 336 ACSR 1 PIECE SPLICE
- Die Index
- 655
- Dimension - Length Overall inch
- 20.5 in
- Dimension - L Length Overall mm
- 521 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.13 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 20 EA
- Package - Gross Weight per Pack
- 27.4 lb.
- Package - GTIN - Package
- 30781810015941
- Package Height
- 6 in
- Package Length
- 22.5 in
- Package - Number of Sub Packs
- 20
- Package - Pack Description
- Package
- Package Quantity
- 20 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810015940
- Package - Total Units
- 20 EA
- Package Weight
- 27.4 lb.
- Package Width
- 5.63 in
- Pallet - GTIN - Package
- 70781810015949
- Pallet Height
- 45.500 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2017.800 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Single Sleeve Splice Similar To UNISPLICE Type YDS-RL, Except Designed To Eliminate Possible Conductor Basketing On ACSR, Installed By Crimping From End Of Connector Towards Center With Standard Tooling, Supplied Pre-Filled With PENETROX Joint Compound And Capped, Factory Installed Plugs In Pressure Relief Holes Must Be In Place When Conductors Are Inserted, Plugs Drop Out When Sleeve Is Crimped, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U655 Die, Y45 Tool, U655 Die With PUADP-1 Adapter, Y46 Tool, U655 Die With PT-6515 Adapter, Die Index: 655 Element A, Conductor Type: ACSR, 6201, 5005, Aluminum
- Standard Package Quantity
- 20
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- UNISPLICE
- Sub Class Code
- B30B43F
- Trade Name
- UNISPLICE™
- Type
- YDS-RLY
- UL Listed
- No
- Width
- 1.13 in
