Burndy YDS32
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

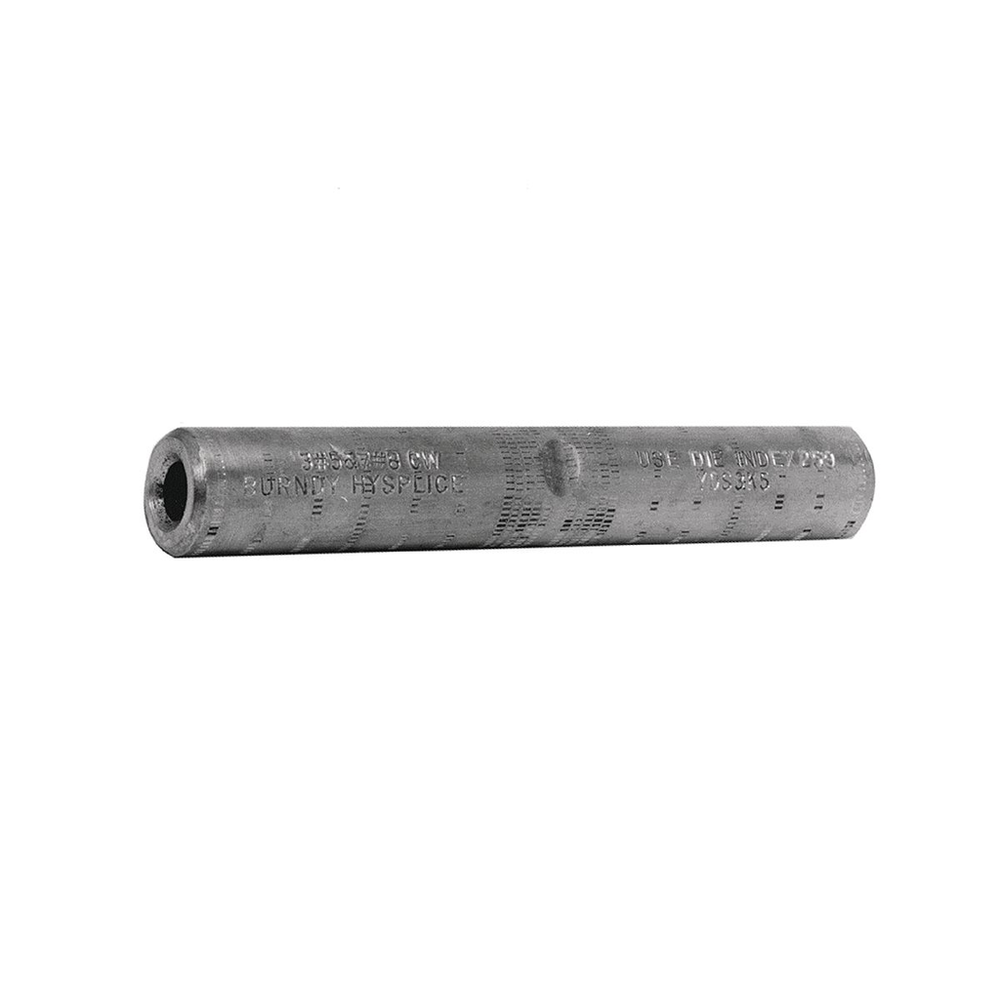

HYSPLICE Single Sleeve Full Tension Splice, Accommodates Wire: 400 kcmil Cu (Hard, Medium, or Soft Drawn), Die Index: 209, Made of copper tubing, Installed with standard tools and dies.CU Full Tension Splice, Accommodates Wire: 400 kcmil Cu (Hard, Medium, or Soft Drawn), Die Index: 209
Burndy YDS32 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- BOX SIZE
- 6.185x14.943x3.063 (in)
- Carton - Gross Weight per Pack
- 18.360 lb.
- Carton - Number of Sub Packs
- 6
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810014660
- Carton - Total Units
- 6
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810014661
- Class Code
- B31
- Conductor - Copper Str Size
- 400 kcmil
- Connector Type
- Splice
- Country of Origin
- US
- Die Index
- 209
- Dimension - B Length fraction
- 6-1/4 in
- Dimension - B Length inch
- 6.25 in
- Dimension - Length Overall inch
- 12.83 in
- Dimension - L Length Overall mm
- 326 mm
- Dimension - Outside Diameter inch
- 1.24 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Material
- Copper
- Oxide Inhibitor Type
- Penetrox E
- Package - GTIN - Package
- 30781810014661
- Package Quantity
- 6 EA
- Package - Total Units
- 6 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810014669
- Pallet Height
- 49.045 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2193.120 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Crimps Required
- 5
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Standard Package Quantity
- 6
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B31B53F
- Trade Name
- HYSPLICE™
- UL Listed
- No
