Description

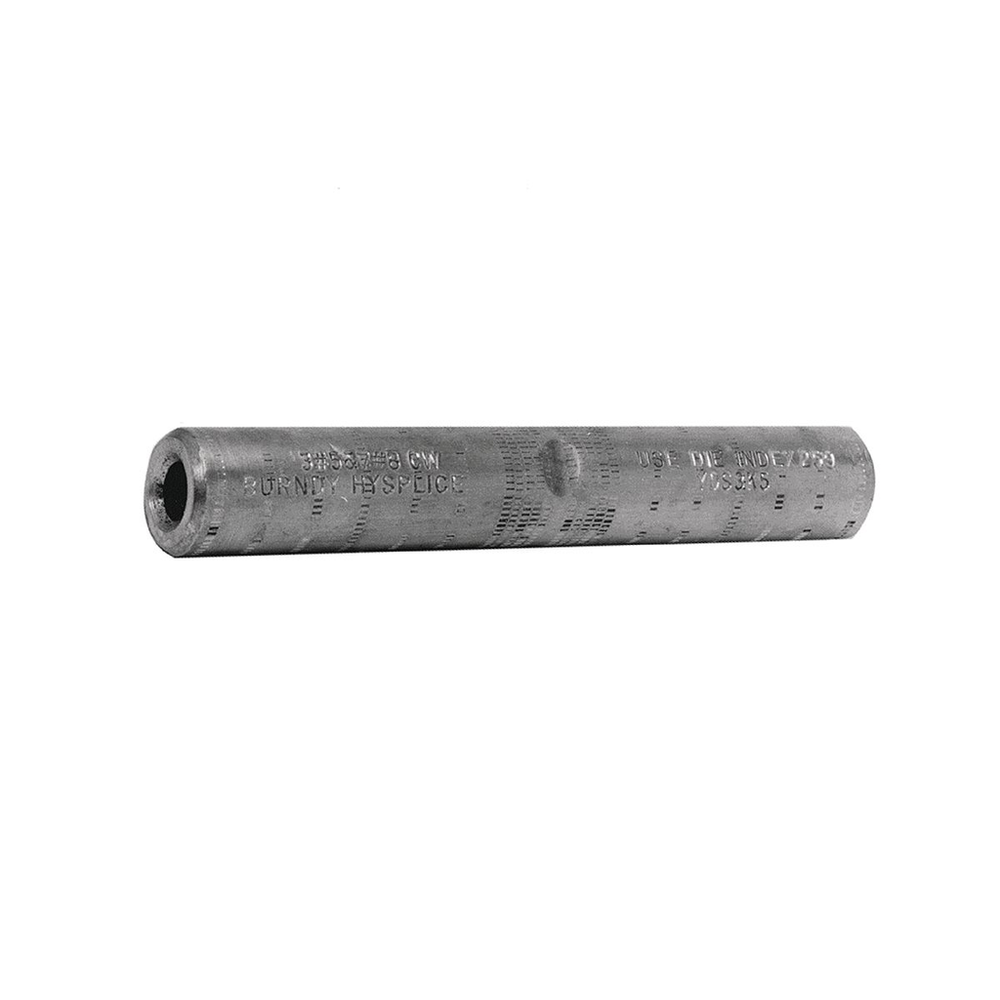

HYSPLICE Single Sleeve Full Tension Splice, Accommodates Wire: 300 kcmil Cu (Hard, Medium, or Soft Drawn), Die Index: 170, Made of copper tubing, Installed with standard tools and dies.CU Full Tension Splice, Accommodates Wire: 300 kcmil Cu (Hard, Medium, or Soft Drawn), Die Index: 170
Burndy YDS30 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Stranded Copper Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 4.875x9.313x6.443 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 13.800 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810014653
- Carton - Total Units
- 10
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810014654
- Certification Agency
- Proposition 65
- Class Code
- B31
- Conductor - Copper Str Size
- 300 kcmil
- Connector Type
- Splice
- Country of Origin
- US
- Description - Invoice
- 300 STR CU FULL TEN SPLI
- Die Index
- 170
- Dimension - B Length fraction
- 3-43/50 in
- Dimension - B Length inch
- 3.86 in
- Dimension - Length Overall inch
- 8.09 in
- Dimension - L Length Overall mm
- 205 mm
- Dimension - Outside Diameter inch
- 1.05 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.05 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Oxide Inhibitor Type
- Penetrox E
- Package - Gross Weight per Pack
- 13.8 lb.
- Package - GTIN - Package
- 30781810014654
- Package Height
- 4.25 in
- Package Length
- 9 in
- Package - Number of Sub Packs
- 10
- Package - Pack Description
- Package
- Package Quantity
- 10 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810014653
- Package - Total Units
- 10 EA
- Package Weight
- 13.8 lb.
- Package Width
- 6.13 in
- Pallet - GTIN - Package
- 70781810014652
- Pallet Height
- 44.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1287.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Crimps Required
- 3
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Made Of Pure Copper Tubing, Designed To Develop The Full Rated Breaking Strength Of Hard Drawn Or Medium Hard Drawn Copper Conductor, Installed With Standard Tooling, Die Index: 170 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U170 Die, (13), Y45 Tool, U170 Die With PT-6515 Adapter, (13), Y46 Tool, U170 Die With PUADP-1 Adapter, (13), Y48B Tool, C170 Die, (3), Y60BHU Tool, L170 Die, (3), Conductor Type: Stranded Copper
- Standard Package Quantity
- 10
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- HYSPLICE
- Sub Class Code
- B31B53F
- Trade Name
- HYSPLICE™
- Type
- YDS
- UL Listed
- No
- Width
- 1.05 in
