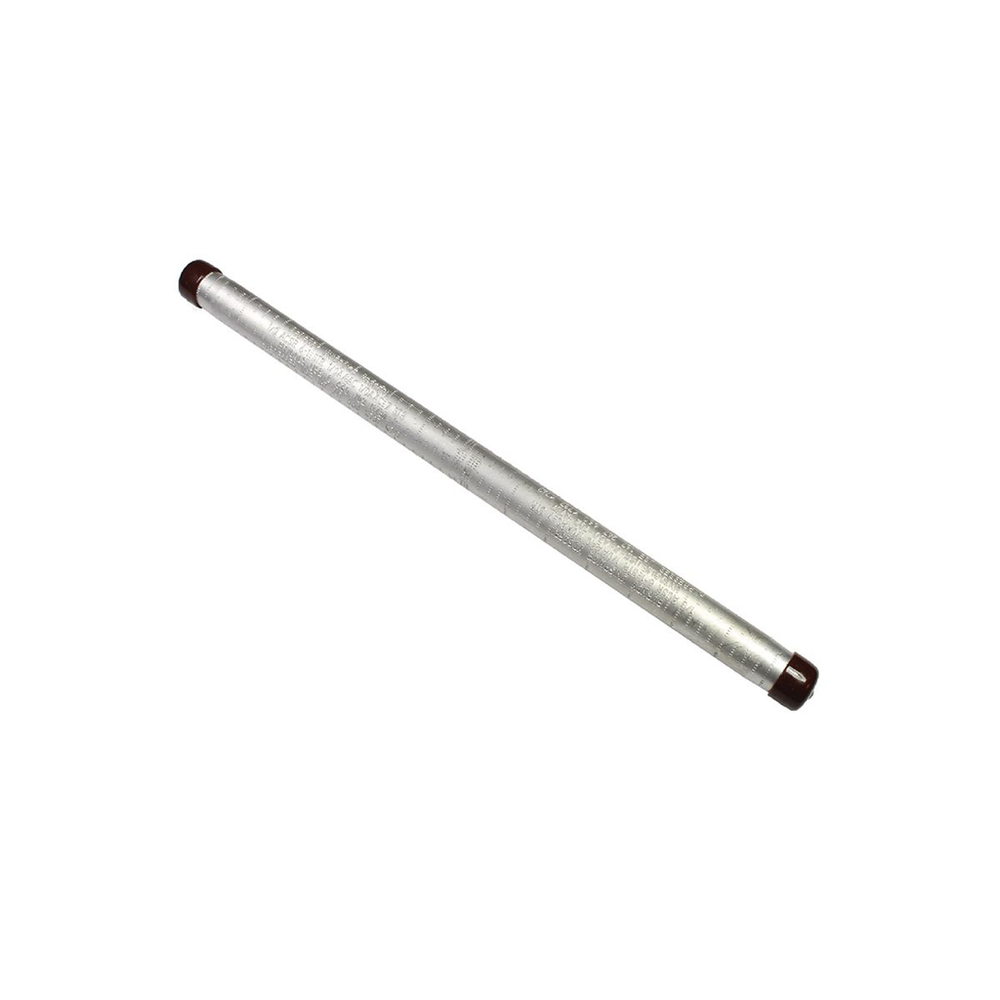

Burndy YDS28RL
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
AL Overhead Compression Splice - Single Sleeve Full Tension, Accommodates: AAC, ACSR and AAC, 18-1/4 IN L.AL Overhead Compression Splice - Single Sleeve Full Tension, Accommodates: AAC, ACSR and AAC, 18-1/4 IN L
Burndy YDS28RL is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For ACSR, Aluminum, 6201 And 5005 Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 6.625x22.813x5.943 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 27.500 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810820742
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810820743
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - AAAC 5005 Size
- 246.9 (7) kcmil
- Conductor - AAAC 5005 Size Range
- 246.9 (7) kcmil
- Conductor - AAAC 6201 Size
- 246.9 (7) kcmil
- Conductor - AAAC 6201 Size Range
- 246.9 (7) kcmil
- Conductor - ACSR Cmpt Size
- 4/0 AWG
- Conductor - ACSR Cmpt Size Range
- 4/0 AWG
- Conductor - ACSR Str Size
- 4/0 (6/1) Penquin AWG
- Conductor - ACSR Str Size Range
- 4/0 (6/1) Penquin AWG
- Conductor - AL Str Size
- 4/0 AWG
- Conductor - AL Str Size Range
- 4/0 AWG
- Conductor Type
- ACSR C Str-Size;AL C Str-Size
- Connector Type
- Splice
- Country of Origin
- US
- Description - Invoice
- 4/0 ACSR 1 PIECE SPLICE,18 .25 In L
- Die Index
- 654
- Dimension - B Length fraction
- 9-3/50 in
- Dimension - B Length inch
- 9.06 in
- Dimension - Length Overall inch
- 18.25 in
- Dimension - L Length Overall mm
- 464 mm
- Dimension - Outside Diameter inch
- 1.02 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.02 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 27.5 lb.
- Package - GTIN - Package
- 30781810820743
- Package Height
- 6 in
- Package Length
- 22.5 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810820742
- Package - Total Units
- 25 EA
- Package Weight
- 27.5 lb.
- Package Width
- 5.63 in
- Pallet - GTIN - Package
- 70781810820741
- Pallet Height
- 45.500 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2025.000 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Replaced Catalog Number
- YDS28RL
- Special Features
- Features: Single-Sleeve Aluminum UNISPLICE Designed To Splice ACSR As Simply As All Aluminum, Pre-Filled With PENETROX Joint Compound And Capped, Eliminates Strand Stripping, Installing Separate Steel Sleeve And Filling With Joint Compound, Ends ACSR Joint Failure Due To Faulty Positioning Of Sleeve And Lack Of Joint Compound, Simplifies Hot-Line Splicing, Electrical And Mechanical Performance Equal To Two-Piece Sleeves, Die Index: 654 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U654 Die, Y45 Tool, U654 Die With PUADP-1 Adapter, Y46 Tool, U654 Die With PT-6515 Adapter, Conductor Type: ACSR, Aluminum, 6201, 5005 Compressed
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- UNISPLICE
- Sub Class Code
- B30B43F
- Trade Name
- UNISPLICE™
- Type
- YDS-RL
- UL Listed
- No
- Width
- 1.02 in
