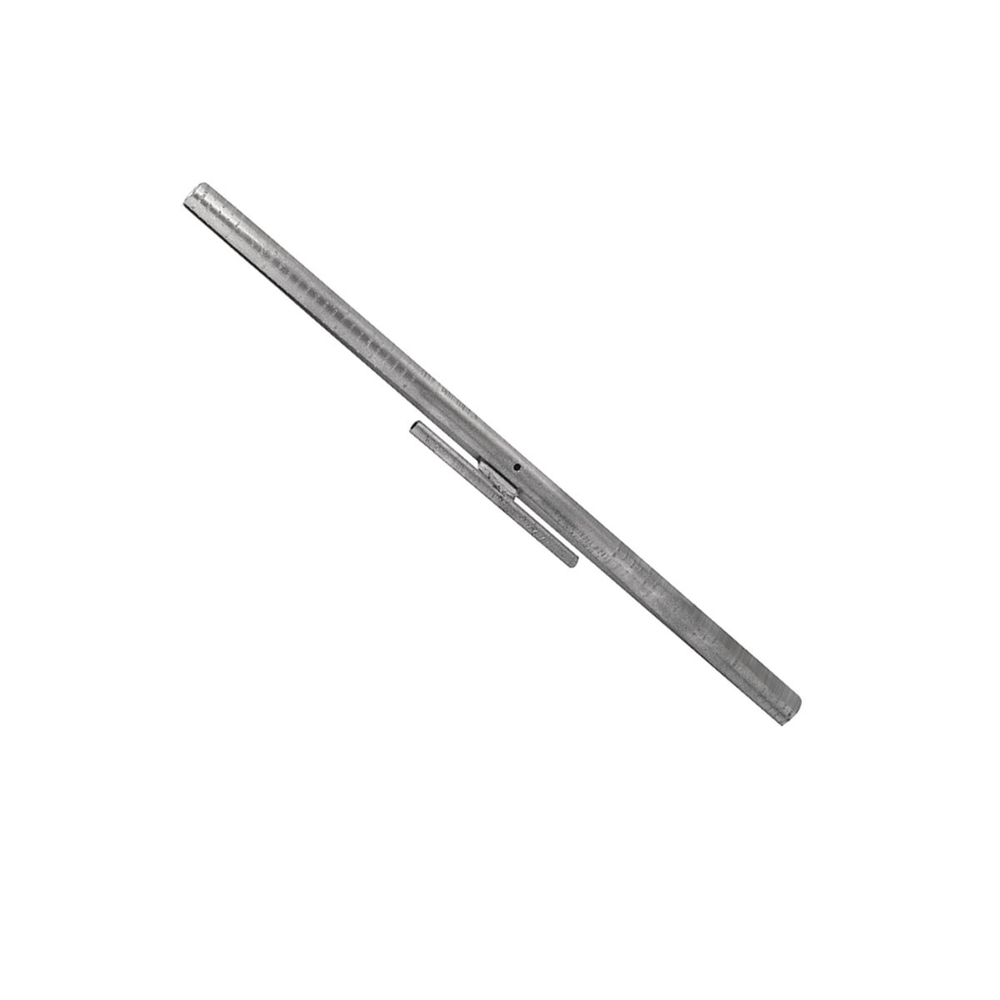

Burndy YDS27R
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
2-piece, full tension ACSR splice consists of steel inner sleeve and AL outer sleeve, ANSI C119.4 Class 1 (Full Tension), Conductor: 3/0 (6/1) Pigeon.2-piece, full tension ACSR splice consists of steel inner sleeve and AL outer sleeve, ANSI C119.4 Class 1 (Full Tension), Conductor: 3/0 (6/1) Pigeon
Burndy YDS27R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For ACSR, Compressed And Compact Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 7.125x20.943x4.813 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 11.600 lb.
- Carton - Number of Sub Packs
- 20
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810015551
- Carton - Total Units
- 20
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810015552
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - ACSR Cmpt Size
- 3/0 AWG
- Conductor - ACSR Cmpt Size Range
- 3/0 AWG
- Conductor - ACSR Str Size
- 3/0 (6/1) Pigeon AWG
- Conductor - ACSR Str Size Range
- 3/0 (6/1) Pigeon AWG
- Conductor Type
- ACSR C Str-Size;AL C Str-Size
- Connector Type
- Splice
- Country of Origin
- US
- Description - Invoice
- 3/0 ACSR 2 PIECE SPLICE
- Die Index
- 248;247
- Die Index - Element A
- 247
- Die Index - Element B
- 248
- Dimension - Aluminum Sleeve Length inch
- 16.75 in
- Dimension - B Length fraction
- 2-1/2 in
- Dimension - B Length inch
- 2.5 in
- Dimension - Length Overall inch
- 5.25 in
- Dimension - L Length Overall mm
- 133 mm
- Dimension - Outside Diameter inch
- 0.78 in
- Dimension - Steel Sleeve Length inch
- 5.25 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.78 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 11.6 lb.
- Package - GTIN - Package
- 30781810015552
- Package Height
- 20.63 in
- Package Length
- 6.5 in
- Package - Number of Sub Packs
- 20
- Package - Pack Description
- Package
- Package Quantity
- 20 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810015551
- Package - Total Units
- 20 EA
- Package Weight
- 11.6 lb.
- Package Width
- 4.5 in
- Pallet - GTIN - Package
- 70781810015550
- Pallet Height
- 48.500 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1158.600 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Two-Piece, Full Tension HYSPLICE, Consists Of Aluminum Outer Sleeve And Steel Inner Sleeve, Tapered Outer Sleeve Provides Gradual Transition Of Stress, Filler Holes Provided For PENETROX Joint compound, Sizes 1/0 AWG And Larger Supplied With Plugs For Filler Hole, Installed With Standard HYSPLICE Tools And Dies (Through 556 KCMIL With Y35 Or Y750 HYPRESS), Aluminum And Steel Sleeves Can Be Ordered Separately Or In Sets, Die Index: 248 Element A, 247 Element B, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W246 Die, (16), W247 Die, (12), Y35, Y750 Tool, U248 Die, (8), U247 Die, (6), Y45 Tool, U248 Die With PT-6515 Adapter, (8), U247 Die With PT-6515 Adapter, (6), Y46 Tool, U248 Die With PUADP-1 Adapter, (8), U247 Die With PUADP-1 Adapter, (6), Y48B Tool, C248 Die, (3), C247 Die, (2), Y60BHU Tool, L248 Die, (3), L247 Die, (2), Includes: YDS27RP1 Aluminium Sleeve And YDS27RP2 Steel Sleeve, Conductor Type: ACSR, Compressed, Compact
- Standard Package Quantity
- 20
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- HYSPLICE
- Sub Class Code
- B30B43F
- Trade Name
- HYSPLICE™
- Type
- YDS-R SET
- UL Listed
- No
- Width
- 0.78 in
