Description
AL Compression Splices - Single Sleeve Full Tension, Accommodates: AAC, ACSR and AAAC, Length: 17 IN L.AL Compression Splices - Single Sleeve Full Tension, Accommodates: AAC, ACSR and AAAC, Length: 17 IN L
Burndy YDS25RLY is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For ACSR, Aluminum, 6201 And 5005 Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 7.125x20.943x4.813 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 16.500 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810820988
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810820989
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - AAAC 5005 Size
- 123.3 (7) kcmil
- Conductor - AAAC 5005 Size Range
- 123.3 (7) kcmil
- Conductor - AAAC 6201 Size
- 123.3 (7) kcmil
- Conductor - AAAC 6201 Size Range
- 123.3 (7) kcmil
- Conductor - ACSR Cmpt Size
- 1/0 AWG
- Conductor - ACSR Cmpt Size Range
- 1/0 AWG
- Conductor - ACSR Str Size
- 1/0 (6/1) Raven AWG
- Conductor - ACSR Str Size Range
- 1/0 (6/1) Raven AWG
- Conductor - AL Str Size
- 1/0 AWG
- Conductor - AL Str Size Range
- 1/0 AWG
- Conductor Type
- ACSR C Str-Size;AL C Str-Size
- Connector Type
- Splice
- Country of Origin
- US
- Description - Invoice
- 1/0 ACSR 1 PIECE SPLICE
- Die Index
- 167;247;660;702;C
- Dimension - B Length fraction
- 8-16/39 in
- Dimension - B Length inch
- 8.41 in

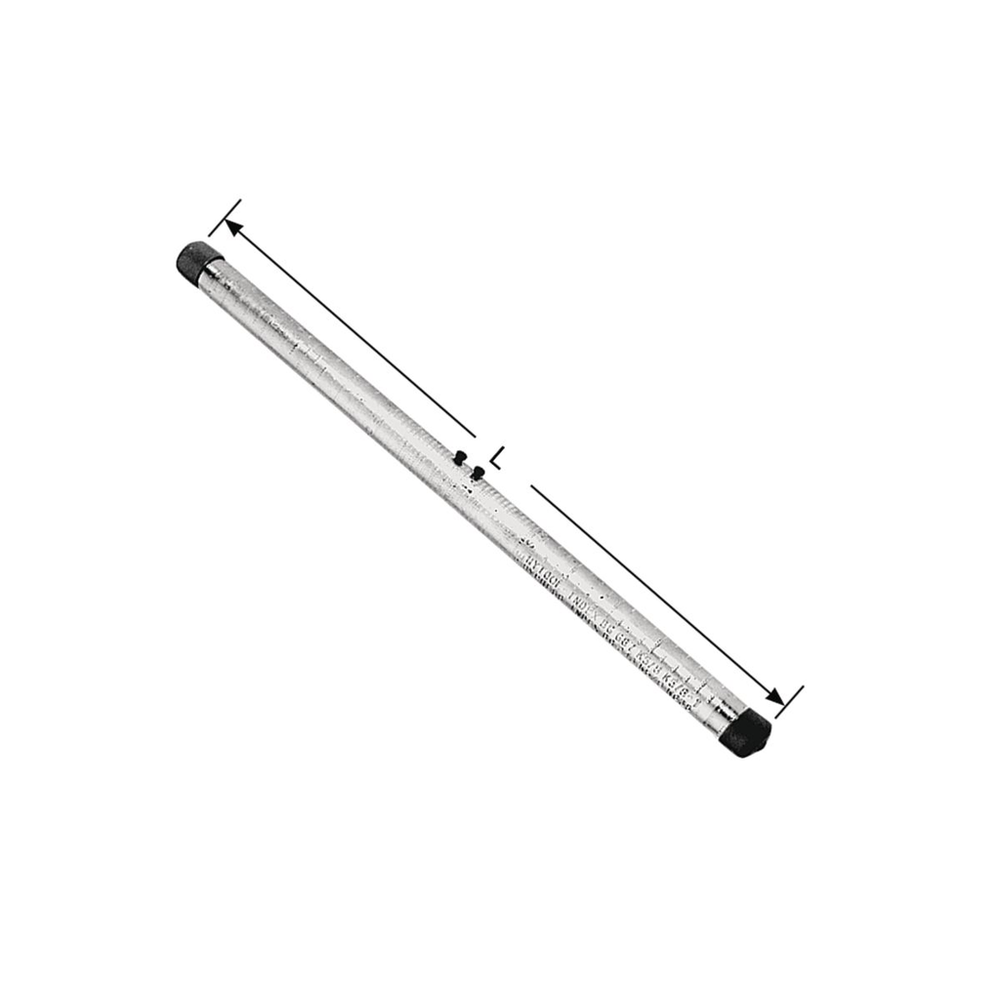

- Dimension - Length Overall inch
- 16.94 in
- Dimension - L Length Overall mm
- 430 mm
- Dimension - Outside Diameter inch
- 0.8 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.8 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 16.5 lb.
- Package - GTIN - Package
- 30781810820989
- Package Height
- 6.5 in
- Package Length
- 20.63 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810820988
- Package - Total Units
- 25 EA
- Package Weight
- 16.5 lb.
- Package Width
- 4.5 in
- Pallet - GTIN - Package
- 70781810820987
- Pallet Height
- 48.500 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1629.000 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Single Sleeve Splice Similar To UNISPLICE Type YDS-RL, Except Designed To Eliminate Possible Conductor Basketing On ACSR, Installed By Crimping From End Of Connector Towards Center With Standard Tooling, Supplied Pre-Filled With PENETROX Joint Compound And Capped, Factory Installed Plugs In Pressure Relief Holes Must Be In Place When Conductors Are Inserted, Plugs Drop Out When Sleeve Is Crimped, Die Index: C Or 660 Or 167 Or 247 Or 702, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W702 Die, (12), W660 Die, (16), W-C Die, (32), Non-Bow, Y35, Y750 Tool, U660, U247 Die, (8), U167 Die, (16), Y45 Tool, U660, U247 Die With PT-6515 Adapter, (8), U167 Die With PT-6515 Adapter, (16), Y46 Tool, U660, U247 Die With PUADP-1 Adapter, (8), U167 Die With PUADP-1 Adapter, (16), Y48B Tool, C167 Die, (5), Y60BHU Tool, L167 Die, (5), Conductor Type: ACSR, 6201, 5005, Aluminum
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- UNISPLICE
- Sub Class Code
- B30B43F
- Trade Name
- UNISPLICE™
- Type
- YDS-RLY
- UL Listed
- No
- Width
- 0.8 in
