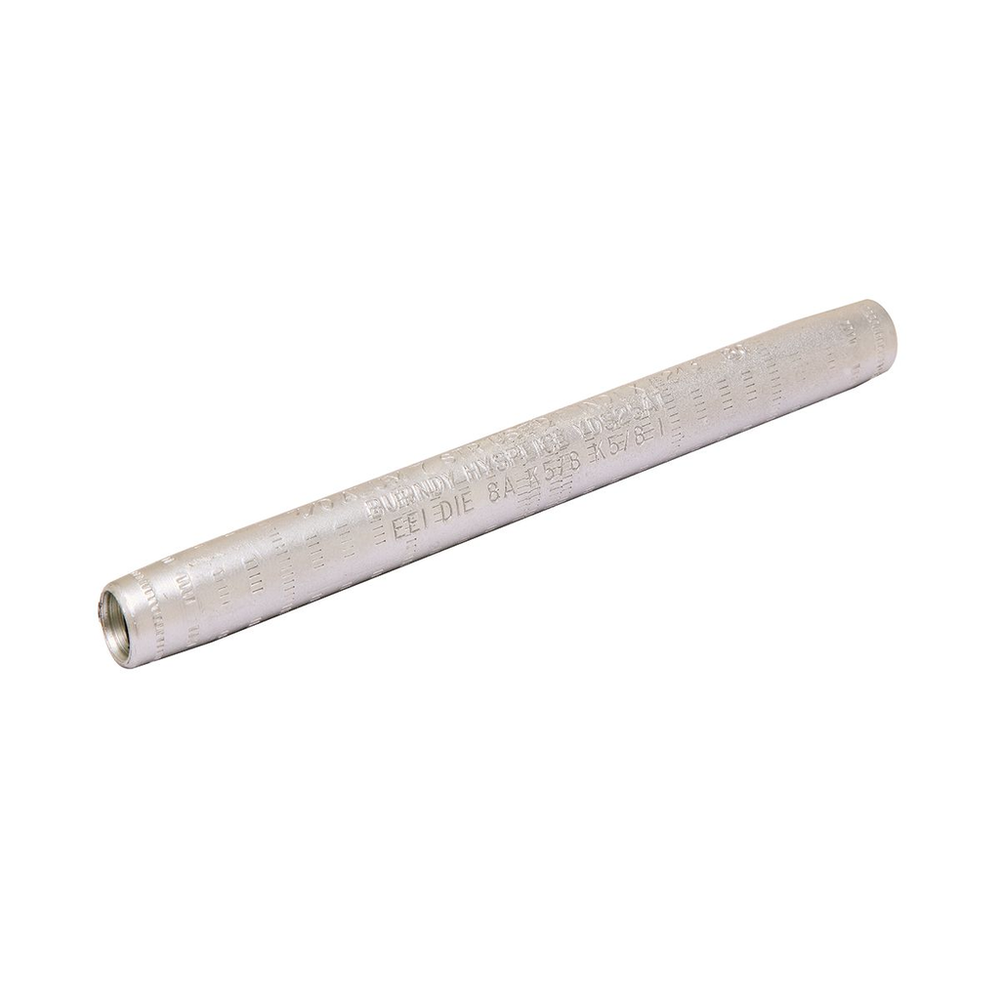

Burndy YDS25AT
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminium Hysplice, 7-1/4 in L, Full Tension Sleeve for All Aluminum Compressed and Compact Conductors,Die index:243.Aluminium HYSPLICE™, 7-1/4 in L, Full Tension Sleeve for All Aluminum Compressed and Compact Conductors, Die index:243
Burndy YDS25AT is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For All Aluminum Compressed And Compact Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x8.438x4.063 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 3.750 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810820971
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810820972
- Certification Agency
- Proposition 65
- Class Code
- B30
- Color Code
- Yellow
- Conductor - ACSR Cmpt Size
- 1/0 AWG
- Conductor - ACSR Cmpt Size Range
- 1/0 AWG
- Conductor - AL Str Size
- 1/0 AWG
- Conductor - AL Str Size Range
- 1/0 AWG
- Conductor Type
- ACSR C Str-Size;AL C Str-Size
- Connector Type
- Splice
- Country of Origin
- US
- Description - Invoice
- 1/0 AL FULL TEN SPLICE
- Die Index
- BG or 243
- Dimension - B Length fraction
- 3-53/93 in
- Dimension - B Length inch
- 3.57 in
- Dimension - Length Overall inch
- 7.27 in
- Dimension - L Length Overall mm
- 185 mm
- Dimension - Outside Diameter inch
- 0.62 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.62 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Insulation
- Y
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 3.75 lb.
- Package - GTIN - Package
- 30781810820972
- Package Height
- 4.5 in
- Package Length
- 8.13 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810820971
- Package - Total Units
- 25 EA
- Package Weight
- 3.75 lb.
- Package Width
- 3.75 in
- Pallet - GTIN - Package
- 70781810820970
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1515.000 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Full-Tension HYSPLICE Sleeve Made Of Aluminum Tubing With Staked-In Cable Stop, Sizes 1/0 And Larger Tapered For Gradual Transition Of Stress, Installed With HYSPLICE Tools And Dies, Pre-Filled With PENETROX Joint Compound And Capped, Die Index: 243 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W243 Die, (6) Or BG Die, (12), Y35, Y750 Tool, BG Or U243 Die, (3), Y45 Tool, U243 Die With PT-6515 Adapter, (3), Y46 Tool, U243 Die With PUADP-1 Adapter, (3), Conductor Type: Aluminum, Compressed Aluminum, Compact Aluminum
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYSPLICE
- Sub Class Code
- B30B43F
- Trade Name
- HYSPLICE™
- Type
- YDS-AT
- UL Listed
- No
- Width
- 0.62 in
