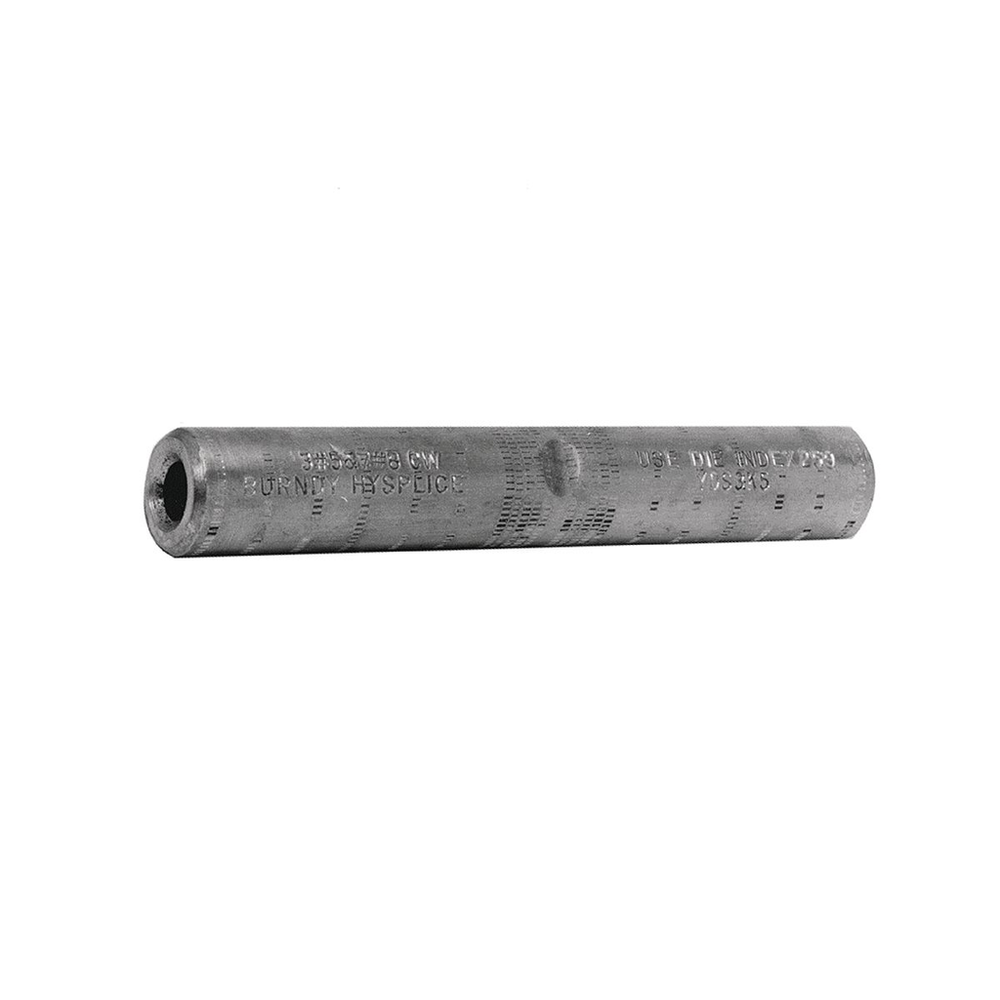

Burndy YDS25
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HYSPLICE Single Sleeve Full Tension Splice, Accommodates Wire: 1/0 Cu STR (Hard, Medium, or Soft Drawn), Die Index: 165, Made of copper tubing, Installed with standard tools and dies.CU Full Tension Splice, Accommodates Wire: #1 Cu STR (Hard, Medium, or Soft Drawn), Die Index: 164
Burndy YDS25 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Stranded Copper Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x8.438x4.063 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 7.750 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810564820
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810564821
- Certification Agency
- Proposition 65
- Class Code
- B31
- Conductor - Copper Str Size
- 1/0 AWG
- Connector Type
- Splice
- Country of Origin
- US
- Description - Invoice
- 1/0 STR CU FULL TEN SPLI
- Die Index
- 165
- Dimension - B Length fraction
- 2-3/5 in
- Dimension - B Length inch
- 2.59 in
- Dimension - Length Overall inch
- 5.38 in
- Dimension - L Length Overall mm
- 137 mm
- Dimension - Outside Diameter inch
- 0.63 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.63 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- RUS
- Lead Time
- 50 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 25 EA
- Oxide Inhibitor Type
- Penetrox E
- Package - Gross Weight per Pack
- 7.75 lb.
- Package - GTIN - Package
- 30781810564821
- Package Height
- 4.5 in
- Package Length
- 8.13 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810564820
- Package - Total Units
- 25 EA
- Package Weight
- 7.75 lb.
- Package Width
- 3.75 in
- Pallet - GTIN - Package
- 70781810564829
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1564.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Crimps Required
- 6
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Replaced Catalog Number
- YDS25
- Special Features
- Features: Made Of Pure Copper Tubing, Designed To Develop The Full Rated Breaking Strength Of Hard Drawn Or Medium Hard Drawn Copper Conductor, Installed With Standard Tooling, Die Index: 165 Element A, Conductor Type: Stranded Copper, Tools, Die Set Catalog Number, And (number Of Crimps): MD7, MD6 Tool, W165 Die, (6), Y35, Y750 Tool, U165/U205 Die, (6), Y45 Tool, U Die With Adapter PT-6515, Y46 Tool, U Die With Adapter PUADP-1
- Standard
- RUS
- Standard Package Quantity
- 25
- Standards - Industry Standards Met
- RUS
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYSPLICE
- Sub Class Code
- B31B53F
- Trade Name
- HYSPLICE™
- Type
- YDS
- UL Listed
- No
- Width
- 0.63 in
