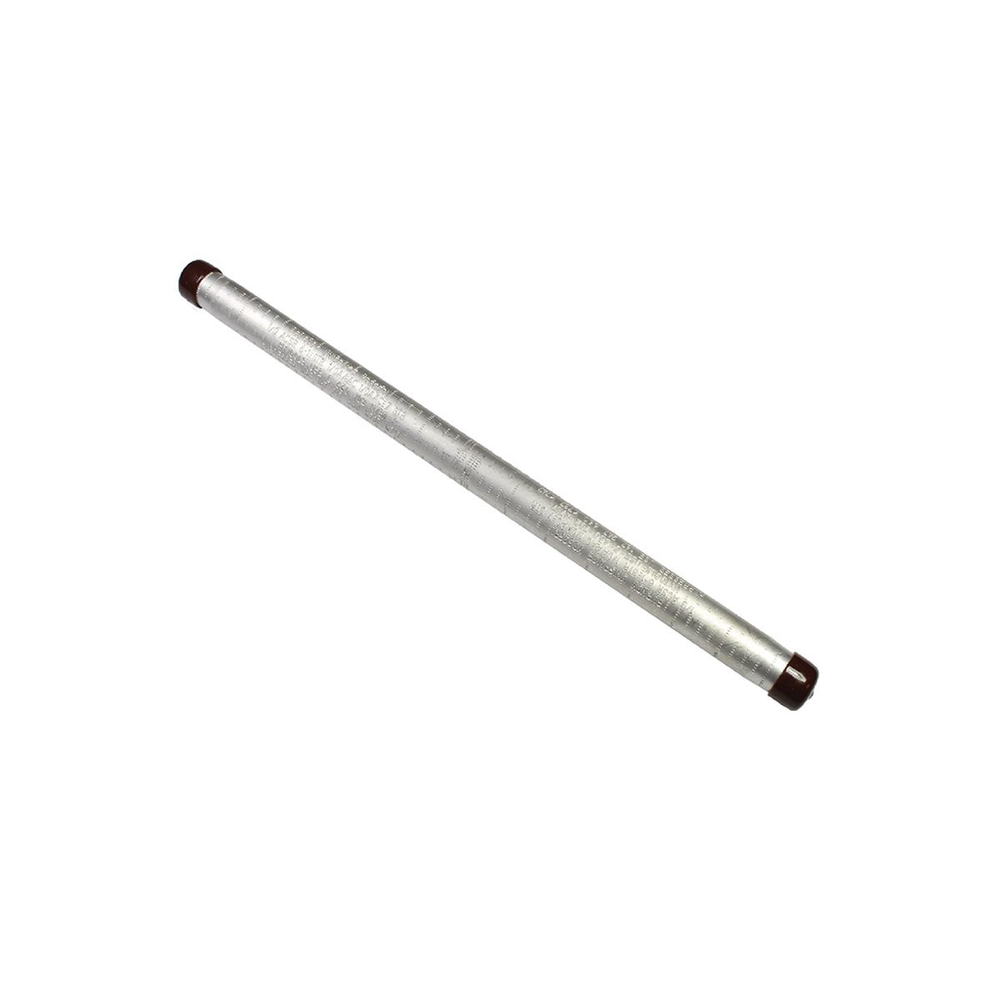

Burndy YDS021RL
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
AL Overhead Compression Splice - Single Sleeve Full Tension, Accommodates: AAC, ACSR and AAC, 11-1/4 IN L.AL Overhead Compression Splice - Single Sleeve Full Tension, Accommodates: AAC, ACSR and AAC, 11-1/4 IN L
Burndy YDS021RL is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Contact Manufacturer
- UL Recognized
- No
Specifications
- Application
- For ACSR, Aluminum, 6201 And 5005 Conductors
- ARRA Compliant
- Contact Manufacturer
- Base Unit of Measure
- EA
- BOX SIZE
- 5.250x12.943x6.688 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 12.000 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810820780
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810820781
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - AAAC 5005 Size
- 77.47 (7) kcmil
- Conductor - AAAC 5005 Size Range
- 77.47 (7) kcmil
- Conductor - AAAC 6201 Size
- 77.47 (7) kcmil
- Conductor - AAAC 6201 Size Range
- 77.47 (7) kcmil
- Conductor - ACSR Str Size
- 2 (6/1) Sparrow AWG;2 (7/1) Sparate AWG
- Conductor - ACSR Str Size Range
- 2 (6/1) Sparrow AWG-2 (7/1) Sparate AWG
- Conductor - AL Str Size
- 2 AWG
- Conductor - AL Str Size Range
- 2 AWG
- Conductor Type
- ACSR C Str-Size;AL C Str-Size
- Connector Type
- Splice
- Country of Origin
- US
- Description - Invoice
- 2 ACSR 1 PIECE SPLICE,11.18 IN L
- Die Index
- 167;247;702;C
- Dimension - B Length fraction
- 5-44/83 in
- Dimension - B Length inch
- 5.53 in
- Dimension - Length Overall inch
- 11.18 in
- Dimension - L Length Overall mm
- 284 mm
- Dimension - Outside Diameter inch
- 0.8 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.8 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 25 EA
- Package - Gross Weight per Pack
- 12 lb.
- Package - GTIN - Package
- 30781810820781
- Package Height
- 4.63 in
- Package Length
- 12.63 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810820780
- Package - Total Units
- 25 EA
- Package Weight
- 12 lb.
- Package Width
- 6.38 in
- Pallet - GTIN - Package
- 70781810820789
- Pallet Height
- 47.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2061.000 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Single-Sleeve Aluminum UNISPLICE Designed To Splice ACSR As Simply As All Aluminum, Pre-Filled With PENETROX Joint Compound And Capped, Eliminates Strand Stripping, Installing Separate Steel Sleeve And Filling With Joint Compound, Ends ACSR Joint Failure Due To Faulty Positioning Of Sleeve And Lack Of Joint Compound, Simplifies Hot-Line Splicing, Electrical And Mechanical Performance Equal To Two-Piece Sleeves, Die Index: C Or 167 Or 247 Or 702, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W247 Die, (14), W702 Die, (11), W-C Die, (28), Non-Bow, Y35, Y750 Tool, U167/U568 Die, (16), U247 Die, (7), Y45 Tool, U167/U568 Die With PT-6515 Adapter, (7), Y46 Tool, U167/U568 Die With PUADP-1 Adapter, (7), Y48B Tool, C167 Die, (7), Y60BHU Tool, L167 Die, (7), Conductor Type: ACSR, Aluminum, 6201 Compressed
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- UNISPLICE
- Sub Class Code
- B30B43F
- Trade Name
- UNISPLICE™
- Type
- YDS-RL
- UL Listed
- No
- Width
- 0.8 in
