Description

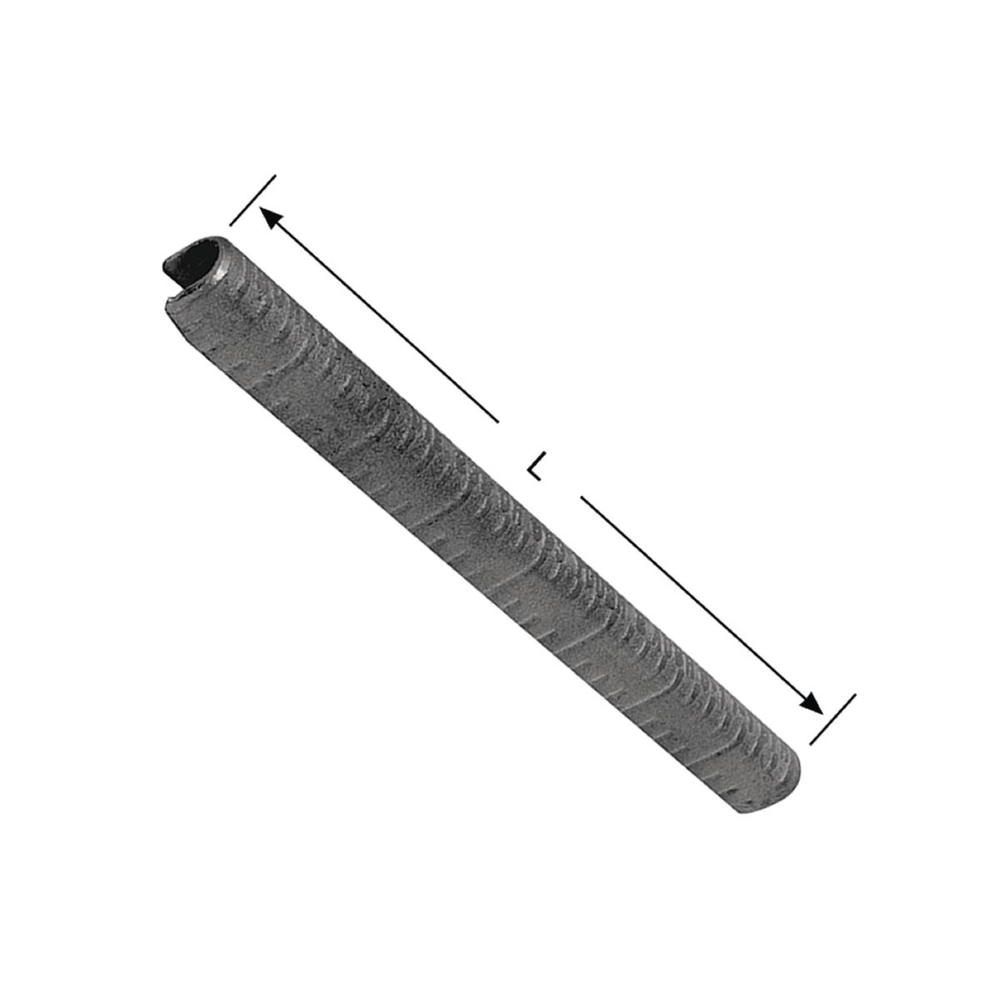

Cast AL repair sleeve for restoring conductivity to damaged conductor, 11-7/8 IN L.Cast AL repair sleeve for restoring conductivity to damaged conductor, 11-7/8 IN L
Burndy YCU28R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For ACSR and Compressed And Compact Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810015261
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810015262
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - ACSR Cmpt Size
- 4/0 AWG
- Conductor - ACSR Cmpt Size Range
- 4/0 AWG
- Conductor - ACSR Str Size
- 159 kcmil (12/7)
- Conductor - ACSR Str Size Range
- 4/0 (6/1) Penquin AWG-159 (12/7) Guinea kcmil
- Conductor - AL Str Size
- 4/0 AWG
- Conductor - AL Str Size Range
- 4/0 AWG
- Connector Type
- Sleeve
- Country of Origin
- US
- Description - Invoice
- 4/0 ACSR REPAIR SLEEVE
- Die Index
- 249
- Dimension - Length Overall inch
- 11.82 in
- Dimension - L Length Overall mm
- 300 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- .88 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 25 EA
- Package - Gross Weight per Pack
- 8.5 lb.
- Package - GTIN - Package
- 30781810015262
- Package Height
- 5.75 in
- Package Length
- 12 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810015261
- Package - Total Units
- 25 EA
- Package Weight
- 8.5 lb.
- Package Width
- 9 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: For Restoring Conductivity To Damaged Conductors, Made Of Cast Aluminum, Sizes Up Through 266.8 KCMIL Are U-Shaped, For 300 KCMIL And Larger, Sleeves Are Two-Piece Interlocking Elements, Use Same Die As Equivalent Full-Tension Sleeve, Use Of PENETROX Joint Compound Required, Die Index: 249 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W249 Die, (28), Y35, Y750 Tool, U249 Die, (14), Y45 Tool, U249 Die With PT-6515 Adapter, (14), Y46 Tool, U249 Die With PUADP-1 Adapter, (14), Y48B Tool, C249 Die, (7), Y60BHU Tool, L249 Die, (7), Conductor Type: ACSR, Compressed ACSR, Compact ACSR
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- REPAIR SLEEVE
- Sub Class Code
- B30B44F
- Type
- YCU-R
- UL Listed
- No
- Width
- .88 in
