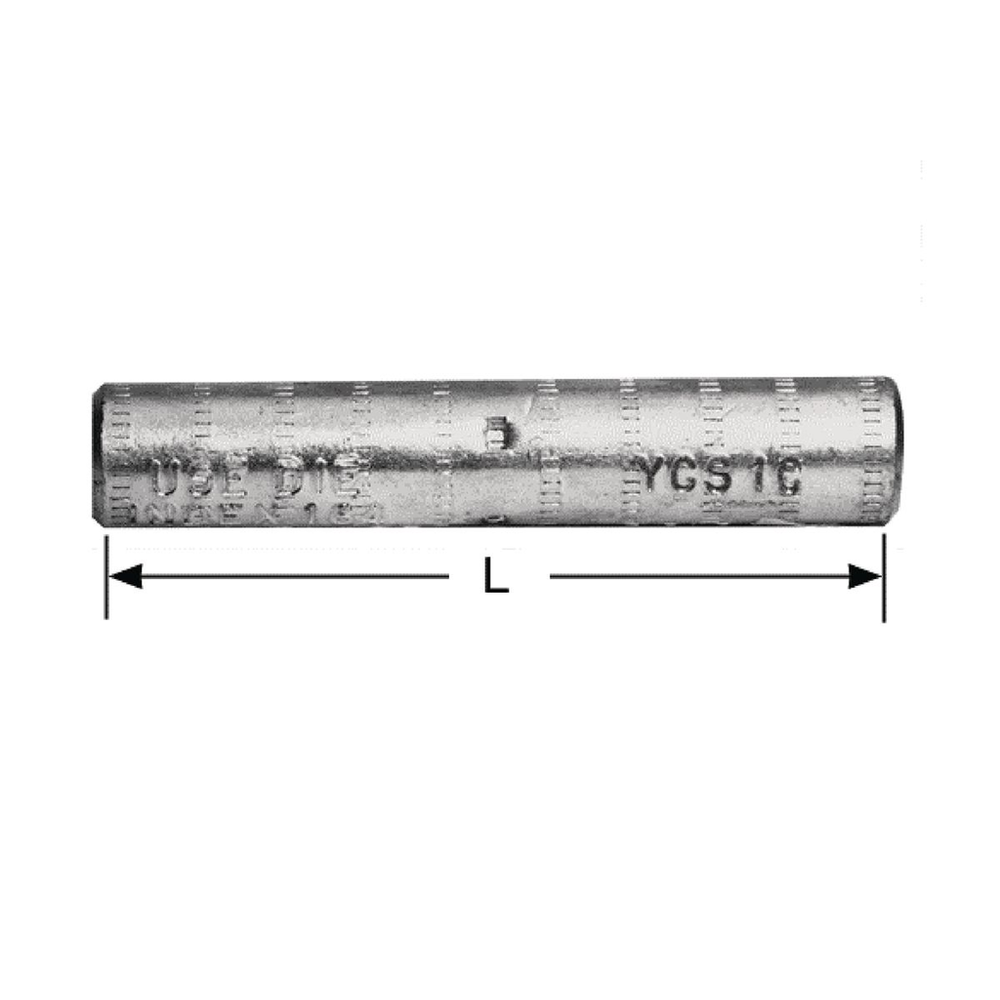

Burndy YCS361R
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HYSPLICE AL sleeve with staked cable stop, designed to withstand jumper loop tensile and vibration stresses. ANSI C119.4 CLASS 2 (PARTIAL TENSION), IndeX: 327.HYSPLICE AL sleeve with staked cable stop, designed to withstand jumper loop tensile and vibration stresses. ANSI C119.4 CLASS 2 (PARTIAL TENSION), IndeX: 327.
Burndy YCS361R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Contact Manufacturer
- UL Recognized
- No
Specifications
- Application
- For ACSR, All Aluminum, 6201, 5005 And Compressed Conductors
- ARRA Compliant
- Contact Manufacturer
- Base Unit of Measure
- EA
- BOX SIZE
- 6.750x9.688x7.753 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 16.000 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810820575
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810820576
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - ACSR Str Size
- 477.0 (18/1) Pelican kcmil
- Conductor - ACSR Str Size Range
- 477.0 (18/1) Pelican kcmil
- Conductor - AL Str Size
- 477 kcmil (18/1)
- Conductor - AL Str Size Range
- 477 kcmil
- Connector Type
- Splice
- Country of Origin
- US
- Description - Invoice
- 477 AL JUMPER,8.25 IN L
- Die Index
- 327
- Dimension - B Length fraction
- 4-3/50 in
- Dimension - B Length inch
- 4.06 in
- Dimension - Length Overall inch
- 8.25 in
- Dimension - L Length Overall mm
- 210 mm
- Dimension - Outside Diameter inch
- 1.3 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.3 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 25 EA
- Package - Gross Weight per Pack
- 16 lb.
- Package - GTIN - Package
- 30781810820576
- Package Height
- 6.13 in
- Package Length
- 9.38 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810820575
- Package - Total Units
- 25 EA
- Package Weight
- 16 lb.
- Package Width
- 7.44 in
- Pallet - GTIN - Package
- 70781810820574
- Pallet Height
- 46.250 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2349.000 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Replaced Catalog Number
- YCS361R
- Special Features
- Features: HYSPLICE Sleeve Designed To Withstand Jumper Loop Tensile And Vibration Stresses, Made Of Aluminum With Staked-In Cable Stop, Installed With Same Die As Equivalent Fulltension Sleeves, Pre-Filled With PENETROX Joint Compound, Die Index: 327 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U327 Die, (6), Y45 Tool, U327 Die With PT-6515 Adapter, (6), Y46 Tool, U327 Die With PUADP-1 Adapter, (6), Y48B Tool, C327 Die, (2), Y60BHU Tool, L327 Die, (2), Conductor Type: ACSR, 6201, 5005, Aluminum
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- HYSPLICE
- Sub Class Code
- B30B44F
- Trade Name
- HYSPLICE™
- Type
- YCS-R
- UL Listed
- No
- Width
- 1.3 in
