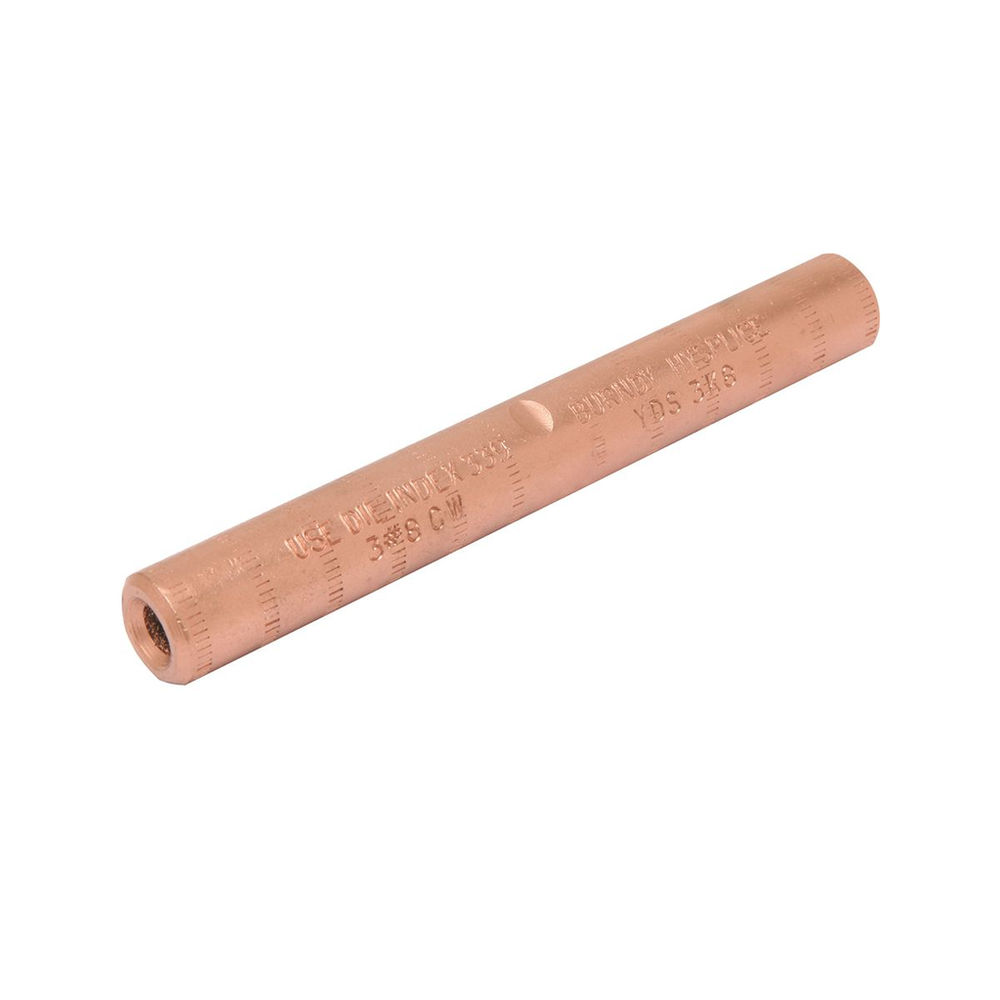

Burndy YCS28
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
CU loop splice connector designed to withstand jumper loop tensile and vibration stresses up to 60 percentage RBS, 3-1/8 IN L.CU loop splice connector designed to withstand jumper loop tensile and vibration stresses up to 60 percentage RBS, 3-1/8 IN L
Burndy YCS28 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Copper Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x6.438x4.875 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 8.750 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810014219
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810014210
- Class Code
- B31
- Conductor - Copper Str Size
- 4/0 AWG
- Conductor - Copper Str Size Range
- 4/0 AWG
- Connector Type
- Splice
- Country of Origin
- US
- Description - Invoice
- 4/0 CU JUMPER
- Die Index
- 168
- Dimension - A Outside Diameter inch
- 0.89 in
- Dimension - B Length fraction
- 1-8/17 in
- Dimension - B Length inch
- 1.47 in
- Dimension - B Outside Diameter inch
- 0.89 in
- Dimension - Length Overall inch
- 3.09 in
- Dimension - L Length Overall mm
- 78 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.89 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 8.75 lb.
- Package - GTIN - Package
- 30781810014210
- Package Height
- 4.5 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810014219
- Package - Total Units
- 25 EA
- Package Weight
- 8.75 lb.
- Package Width
- 4.56 in
- Pallet - GTIN - Package
- 70781810014218
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2075.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Crimps Required
- 3
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- N
- Product Type
- Compression
- Special Features
- Features: Loop HYSPLICE Connector Designed To Withstand Jumper Loop Tensile And Vibration Stresses, Made Of Pure Copper Tubing, Installed With Standard HYSPLICE Tools And Dies, Tools, Die Set Catalog Number, And (number Of Crimps): Y750, Y35 Tool, U168 Die, (3), Y45 Tool, U168 Die With PT-6515 Adapter, (3), Y46 Tool, U168 Die With PUADP-1 Adapter, (3), Y48B Tool, C168 Die, (1), Y60BHU Tool, L168 Die, (1), Die Index: 168 Element A, Conductor Type: Copper
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYSPLICE
- Sub Class Code
- B31B54F
- Trade Name
- HYSPLICE™
- Type
- YCS
- UL Listed
- No
- Width
- 0.89 in
