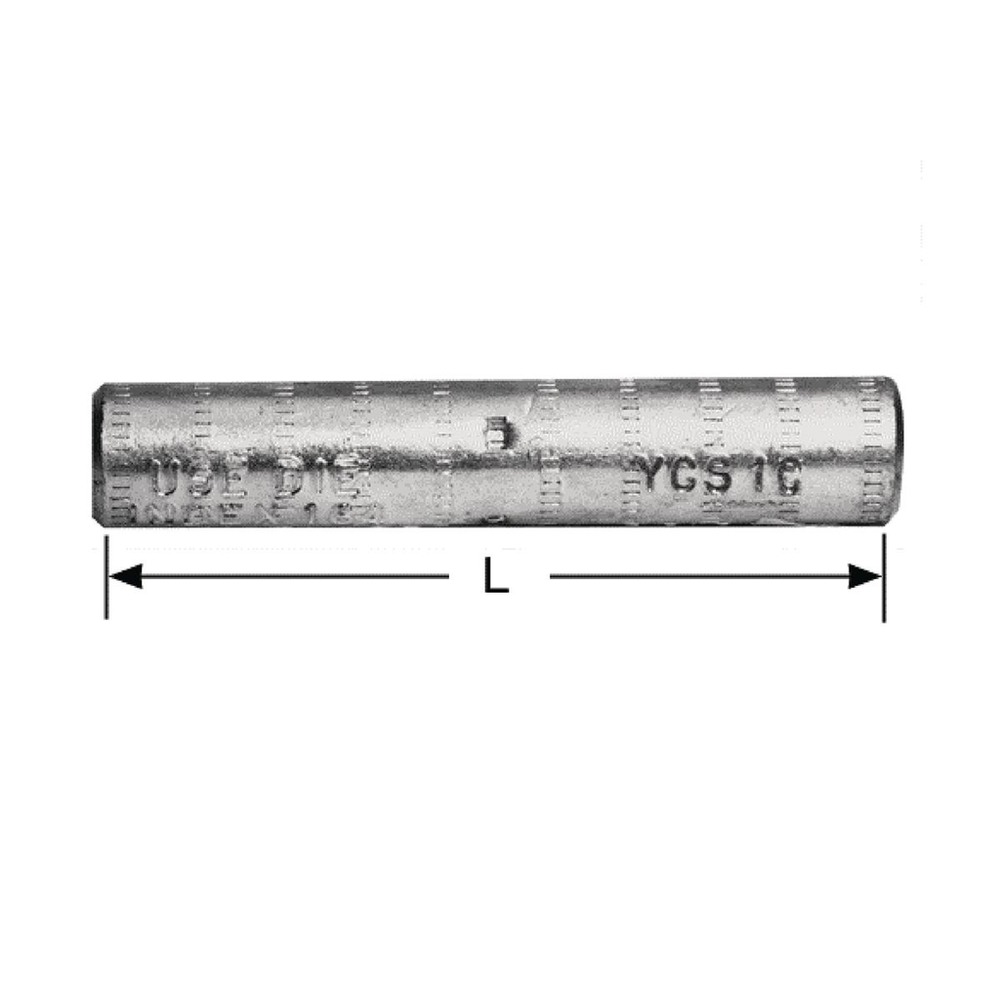

Burndy YCS27R
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HYSPLICE AL sleeve with staked cable stop, designed to withstand jumper loop tensile and vibration stresses. ANSI C119.4 CLASS 2 (PARTIAL TENSION), 5-3/4 IN L.Al Jumper sleeve, 3/0 6-1 str, 5-11/16"L, 247 index
Burndy YCS27R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Contact Manufacturer
- UL Recognized
- No
Specifications
- Application
- HYSPLICE sleeve designed to withstand jumper loop tensile and vibration stresses
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 4.000 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810015025
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810015026
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - ACSR Str Size
- 3/0 (6/1) Pigeon AWG;4/0 (6/1) Penquin AWG;80 (8/1) Grouse kcmil;101.8 (12/7) Petrel kcmil;110.8 (12/7) Minorca kcmil
- Conductor - ACSR Str Size Range
- 3/0 (6/1) Pigeon AWG-110.8 (12/7) Minorca kcmil
- Conductor - AL Str Size
- 3/0 AWG
- Conductor - AL Str Size Range
- 3/0 AWG
- Connector Type
- Splice
- Construction Material - Main
- Aluminum
- Country of Origin
- US
- Description - Invoice
- 3/0 AL JUMPER
- Die Index
- 247
- Dimension - B Length inch
- 2.81 in
- Dimension - Length Overall inch
- 5.75 in
- Dimension - L Length Overall mm
- 146 mm
- Dimension - Outside Diameter inch
- 0.78 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.78 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- RUS
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 25 EA
- Package - GTIN - Package
- 30781810015026
- Package Quantity
- 25 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810015024
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1229.000 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Standard
- RUS
- Standard Package Quantity
- 25
- Standards - Industry Standards Met
- RUS
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYSPLICE
- Sub Class Code
- B30B44F
- Trade Name
- HYSPLICE™
- Type
- YCS-R
- UL Listed
- No
- Width
- 0.78 in
