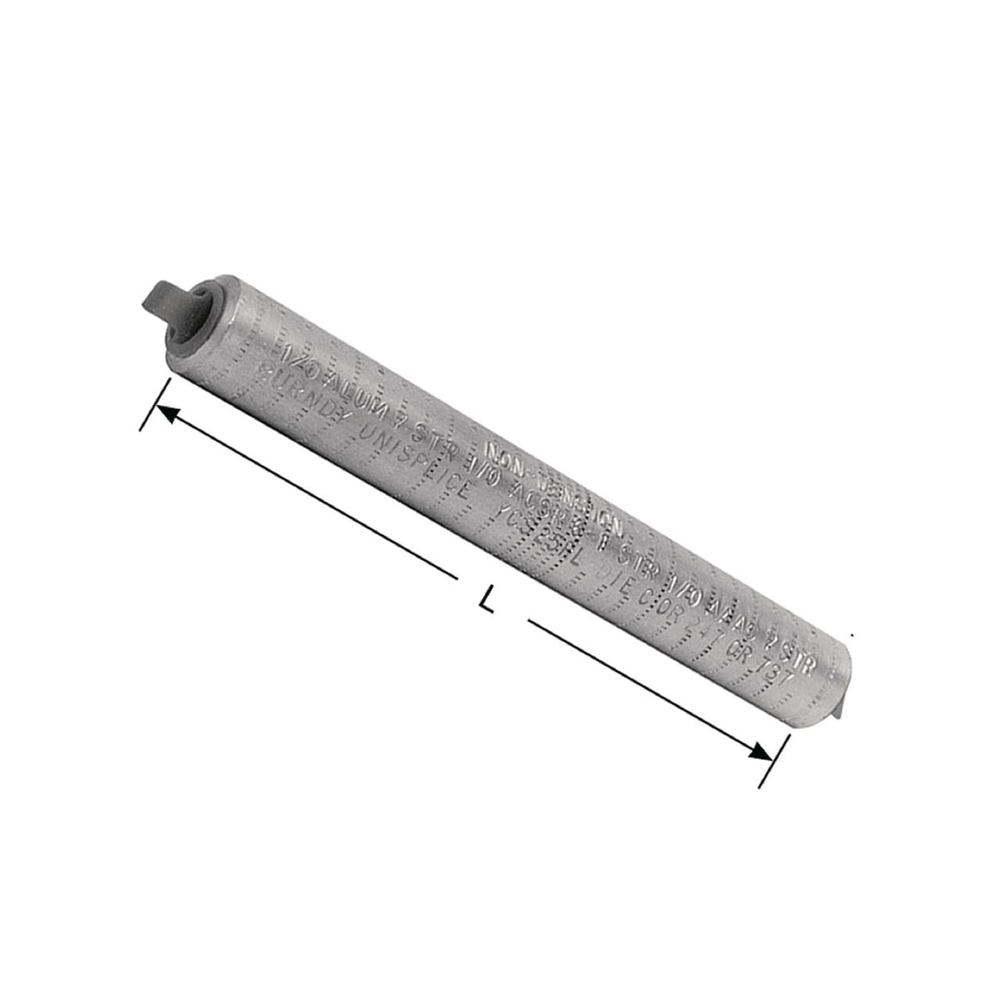

Burndy YCS25RL
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HYSPLICE AL sleeve with staked cable stop, designed to withstand jumper loop tensile and vibration stresses. ANSI C119.4 CLASS 2 (PARTIAL TENSION), 6-1/4 IN L.HYSPLICE AL sleeve with staked cable stop, designed to withstand jumper loop tensile and vibration stresses. ANSI C119.4 CLASS 2 (PARTIAL TENSION), 6-1/4 IN L.
Burndy YCS25RL is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For ACSR, All Aluminum 6201, 5005 Compressed And Compact Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x8.438x4.063 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 5.750 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810014998
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810014999
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - AAAC 5005 Size
- 1/0 (7) AWG
- Conductor - AAAC 5005 Size Range
- 1/0 (7) AWG
- Conductor - AAAC 6201 Size
- 1/0 (7) AWG
- Conductor - AAAC 6201 Size Range
- 1/0 (7) AWG
- Conductor - ACSR Str Size
- 1/0 (6/1) Raven AWG
- Conductor - ACSR Str Size Range
- 1/0 (6/1) Raven AWG
- Conductor - AL Str Size
- 1/0 (7) AWG
- Conductor - AL Str Size Range
- 1/0 (7) AWG
- Connector Type
- Splice
- Country of Origin
- US
- Description - Invoice
- 1/0 AL JUMPER
- Die Index
- C or 247
- Dimension - B Length inch
- 3.03 in
- Dimension - Length Overall inch
- 6.22 in
- Dimension - L Length Overall mm
- 158 mm
- Dimension - Outside Diameter inch
- 0.8 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.8 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 25 EA
- Package - Gross Weight per Pack
- 5.75 lb.
- Package - GTIN - Package
- 30781810014999
- Package Height
- 4.5 in
- Package Length
- 8.13 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810014998
- Package - Total Units
- 25 EA
- Package Weight
- 5.75 lb.
- Package Width
- 3.75 in
- Pallet - GTIN - Package
- 70781810014997
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2299.000 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Replaced Catalog Number
- YCS25RL
- Special Features
- Features: Aluminum Jumper Sleeve, With Cable Stop, Designed To Be Installed With Same Dies As Equivalent Full-Tension UNISPLICE, Withstands Jumper Loop-Tensile And Vibration Stresses, Pre-Filled With PENETROX Joint Compound And Capped, Accommodates ACSR With Aluminized Steel Core, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W702 Die, (4), W-C Die, (12), Non - Bow Die, Y35, Y750 Tool, U247 Die, (3), Y45 Tool, U247 Die With PT-6515 Adapter, (3), Y46 Tool, U247 Die With PUADP-1 Adapter, (3), Die Index: 247 Element A, Conductor Type: ACSR, 6201, 5005, Commercial Aluminum
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- UNISPLICE
- Sub Class Code
- B30B44F
- Trade Name
- UNISPLICE™
- Type
- YCS-RL
- UL Listed
- No
- Width
- 0.8 in
