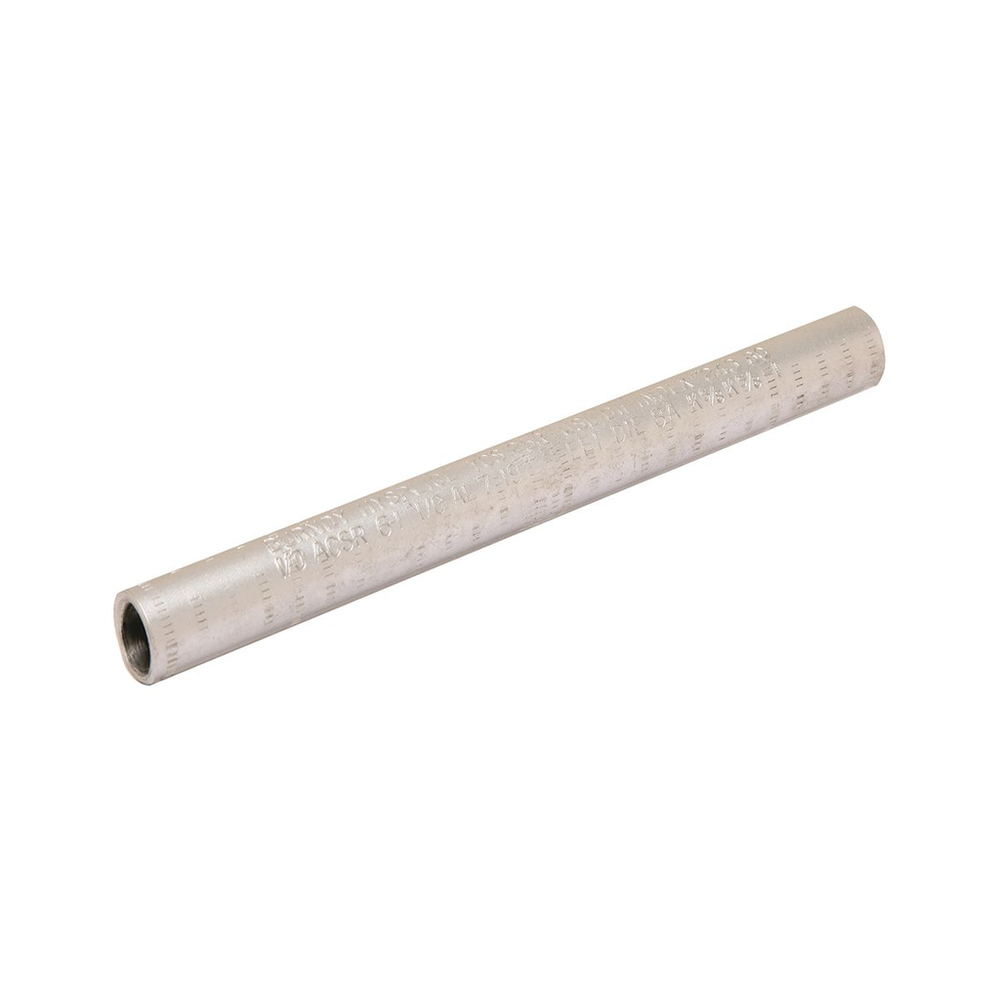

Burndy YCS25R
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HYSPLICE AL sleeve with staked cable stop, designed to withstand jumper loop tensile and vibration stresses. ANSI C119.4 CLASS 2 (PARTIAL TENSION), 7-1/8 IN L.HYSPLICE AL sleeve with staked cable stop, designed to withstand jumper loop tensile and vibration stresses. ANSI C119.4 CLASS 2 (PARTIAL TENSION), 7-1/8 IN L.
Burndy YCS25R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For ACSR, All Aluminum, 6201, 5005 And Compressed Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x8.438x4.063 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 3.750 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810820513
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810820514
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - ACSR Str Size
- 1/0 (6/1) Raven AWG
- Conductor - ACSR Str Size Range
- 1/0 (6/1) Raven AWG
- Conductor - AL Str Size
- 1/0 (7, 19) AWG
- Conductor - AL Str Size Range
- 1/0 (7, 19) AWG
- Connector Type
- Splice
- Country of Origin
- US
- Description - Invoice
- 1/0 AL JUMPER,0.621 IN OD
- Die Index
- 243
- Dimension - B Length inch
- 3.48 in
- Dimension - Length Overall inch
- 7.09 in
- Dimension - L Length Overall mm
- 180 mm
- Dimension - Outside Diameter inch
- 0.62 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.621 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- RUS
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 3.75 lb.
- Package - GTIN - Package
- 30781810820514
- Package Height
- 4.5 in
- Package Length
- 8.13 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810820513
- Package - Total Units
- 25 EA
- Package Weight
- 3.75 lb.
- Package Width
- 3.75 in
- Pallet - GTIN - Package
- 70781810820512
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1515.000 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: HYSPLICE Sleeve Designed To Withstand Jumper Loop Tensile And Vibration Stresses, Made Of Aluminum With Staked-In Cable Stop, Installed With Same Die As Equivalent Fulltension Sleeves, Pre-Filled With PENETROX Joint Compound, Die Index: 243 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W243 Die, (6), WBG Die, (10), Y35, Y750 Tool, U243 Die, (3), UBG Die, (6), Y45 Tool, U243 Die With PT-6515 Adapter, (3), UBG Die With PT-6515 Adapter, (6), Y46 Tool, U243 Die With PUADP-1 Adapter, (3), UBG Die With PUADP-1 Adapter, (6), Conductor Type: ACSR, 6201, 5005, Aluminum
- Standard
- RUS
- Standard Package Quantity
- 25
- Standards - Industry Standards Met
- RUS
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYSPLICE
- Sub Class Code
- B30B44F
- Trade Name
- HYSPLICE™
- Type
- YCS-R
- UL Listed
- No
- Width
- 0.621 in
