Description

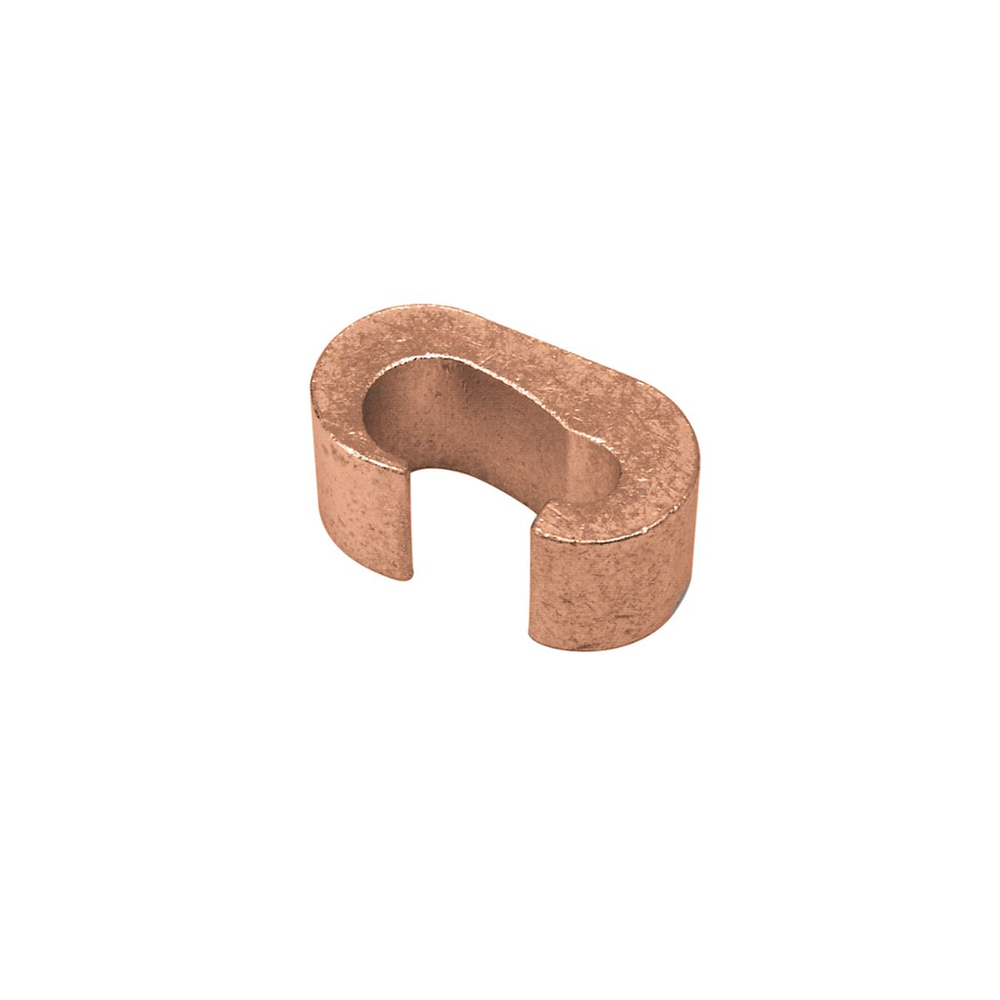

Copper Compression C Tap, 750-500 kcmil (Main), 750-350 kcmil (Tap), Tin Plated.Copper Compression C Tap, 750-500 kcmil (Main), 750-350 kcmil (Tap), Tin Plated
Burndy YCHC39TC39 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Contact Manufacturer
- UL Recognized
- No
Specifications
- Application
- Wire Tap
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 8.550 lb.
- Carton - Number of Sub Packs
- 15
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810013793
- Carton - Total Units
- 15
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810013794
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Blue
- Conductor - Copper Flex I Run Range
- 500 kcmil
- Conductor - Copper Flex I Tap Range
- 350 kcmil-500 kcmil
- Conductor - Copper Flex K Run Range
- 500 kcmil
- Conductor - Copper Flex K Tap Range
- 350 kcmil-500 kcmil
- Conductor - Copper Flex M Run Range
- 500 kcmil
- Conductor - Copper Flex M Tap Range
- 350 kcmil-500 kcmil
- Conductor - Copper Str Run
- 750 KCMIL-350 KCMIL
- Conductor - Copper Str Run Range
- 750 KCMIL-350 KCMIL
- Conductor - Copper Str Tap
- 750 KCMIL-350 KCMIL
- Conductor - Copper Str Tap Range
- 750 KCMIL-350 KCMIL
- Conductor - Material
- COPPER
- Conductor Size
- 750 KCMIL-750 KCMIL
- Conductor Type
- CODE/FLEX
- Connector Type
- C-TAP
- Construction Material - Main
- Copper
- Country of Origin
- US
- Description - Invoice
- 750-500 TO 750-350 CU FI
- Description - Slang
- C TAP TIN PLATED
- Die Index
- 1103
- Dimension - Height inch
- 3.12 in
- Dimension - Length Overall inch
- 1.06 in
- Dimension - L Length Overall mm
- 27 mm
- Dimension - Strip Length inch
- 1-1/8
- Dimension - Width inch
- 1.53 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 3.12 in
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Insulation
- N
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 15 EA
- Package - GTIN - Package
- 30781810013794
- Package Quantity
- 15 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810013792
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1943.100 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- RUN/TAP
- Special Features
- Accomadates wide range of Run/Tap combinations; connections are cleraly marked with stamping
- Standard
- UL 486A-486B
- Standard Package Quantity
- 15
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- CRIMPIT
- Sub Class Code
- B55BI4F
- Trade Name
- CRIMPIT™
- Type
- YCHC
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Width
- 3.12 in
