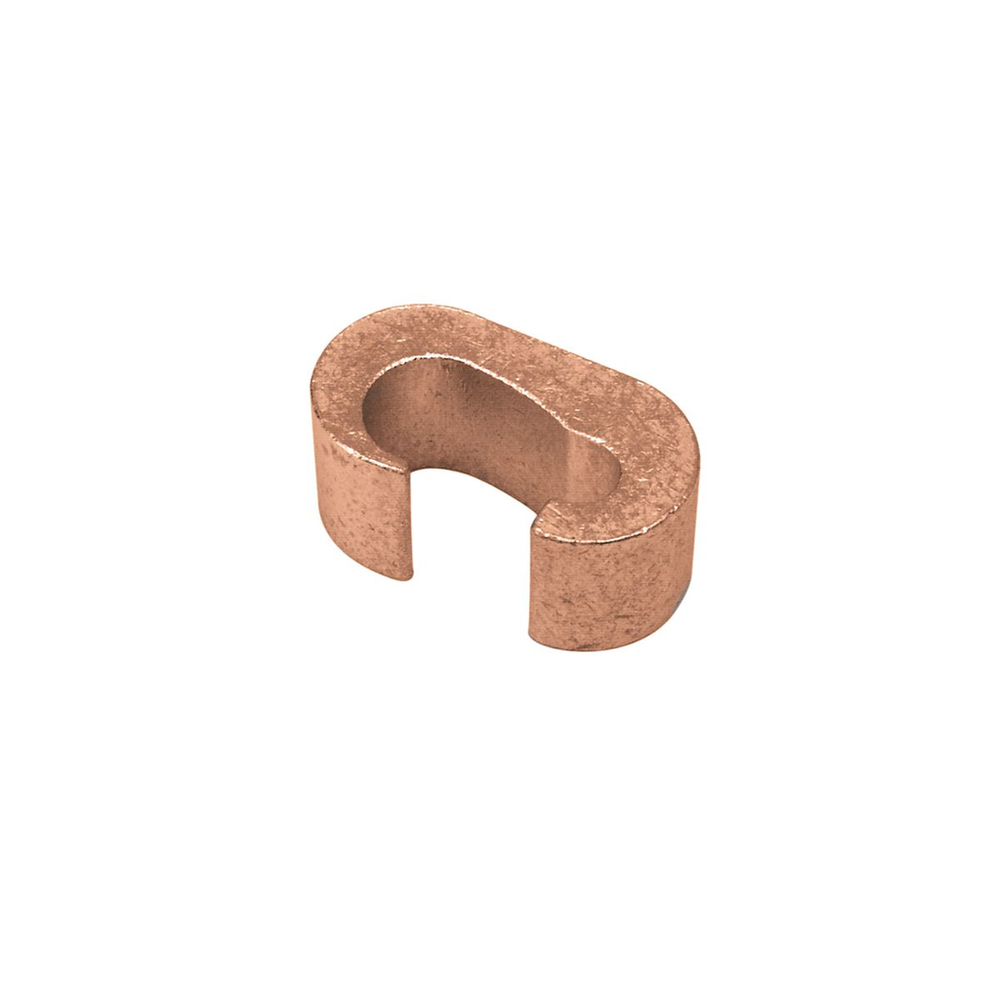

Burndy YCHC34TC2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Cu compression C-Tap, 500-4/0(350-4/0)(Main), 2-6 Str./Sol(2-8)(Tap), 8-14(8-14)(Tap2), Tin plated, Brown, 1104 Index , Flame retardent.Cu compression C-Tap, 500-4/0(350-4/0)(Main), 2-6 Str./Sol(2-8)(Tap), 8-14(8-14)(Tap2), Tin plated, Brown, 1104 Index, Flame retardent
Burndy YCHC34TC2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Wire Tap
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 10.000 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810013731
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810013732
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Brown
- Conductor - Copper Flex I Run Range
- 4/0 AWG-350 kcmil
- Conductor - Copper Flex K Run Range
- 4/0 AWG-350 kcmil
- Conductor - Copper Flex M Run Range
- 4/0 AWG-350 kcmil
- Conductor - Copper Solid Tap
- 6;5;4;3;2
- Conductor - Copper Str Run
- 500 KCMIL-4/0 AWG
- Conductor - Copper Str Run Range
- 500 KCMIL-4/0 AWG
- Conductor - Copper Str Tap
- 2 AWG-6 AWG
- Conductor - Copper Str Tap Range
- 2 AWG-6 AWG
- Conductor - Material
- COPPER
- Conductor Size
- 500 KCMIL-2 AWG
- Conductor Type
- CODE/FLEX
- Connector Type
- C-TAP
- Country of Origin
- US
- Description - Invoice
- 500-4/0 TO 2-6 CU FIG C
- Description - Slang
- C TAP TIN PLATED
- Die Index
- 1104
- Dimension - Height inch
- 2.45 in
- Dimension - Length Overall inch
- 0.94 in
- Dimension - L Length Overall mm
- 24 mm
- Dimension - Strip Length inch
- 1 in
- Dimension - Width inch
- 1.26 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.22 in
- Finish
- Tin-Plated
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- COPPER
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 10 lb.
- Package - GTIN - Package
- 30781810013732
- Package Height
- 4.5 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810013731
- Package - Total Units
- 25 EA
- Package Weight
- 10 lb.
- Package Width
- 6.13 in
- Pallet - GTIN - Package
- 70781810013730
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1895.000 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- RUN/TAP
- Special Features
- Features: Wide Range Of Run/Tap Combinations Including Class B Code I And Locomotive Flexible Conductor Combinations, All (B/B, B/I, I/I) Combinations Are Recommended: Each Connector Accommodates Many Cable Combinations, Allowing Maximum Flexibility For The Design And Installation Of A System, Color-Coded On The Connector That Matches The Die: Provides Matched System For Fast And Easy Installation, Each Connector Has A Recommended Insulating Cover Available, Flame Retardant Type CF-FR Covers Meet Oxygen Index 28 And UL94 V-O Requirements: A Complete Insulated UL Listed Installation Is Provided, Die Index Embossed On Connector After Completion Of Crimp: Permanent Inspectability Of Installed Connector Is Insure Consistently Reliable And Dependable Connections, Use PUADP-1 Adaptor With U Dies In Y46, Color Code: Brown, Die Index: 1104 Element A, Wire Strip Length: 1 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Y750 Tool, U1104 Die, (2), Y46 Tool, P1104 Die, (1), Flame Retardant Cover: CFN-FR, Conductor Type: Run: Commercial Stranded Copper, Flexible Copper, Tap: Commercial Stranded Copper, Flexible Copper, Conductor Size (run - Range): Commercial Copper: 4/0 AWG - 500 KCMIL, Flex Copper: 4/0 AWG - 350 KCMIL, Conductor Size (tap Range): Commercial Copper: 8 - 2 AWG, Flex Copper: 6 - 2 AWG, Shape: C
- Standard
- UL 486A-486B
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- CRIMPIT
- Sub Class Code
- B55BI4F
- Trade Name
- CRIMPIT™
- Type
- YCHC Series
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Width
- 1.22 in
