Burndy YCHC29TC29
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

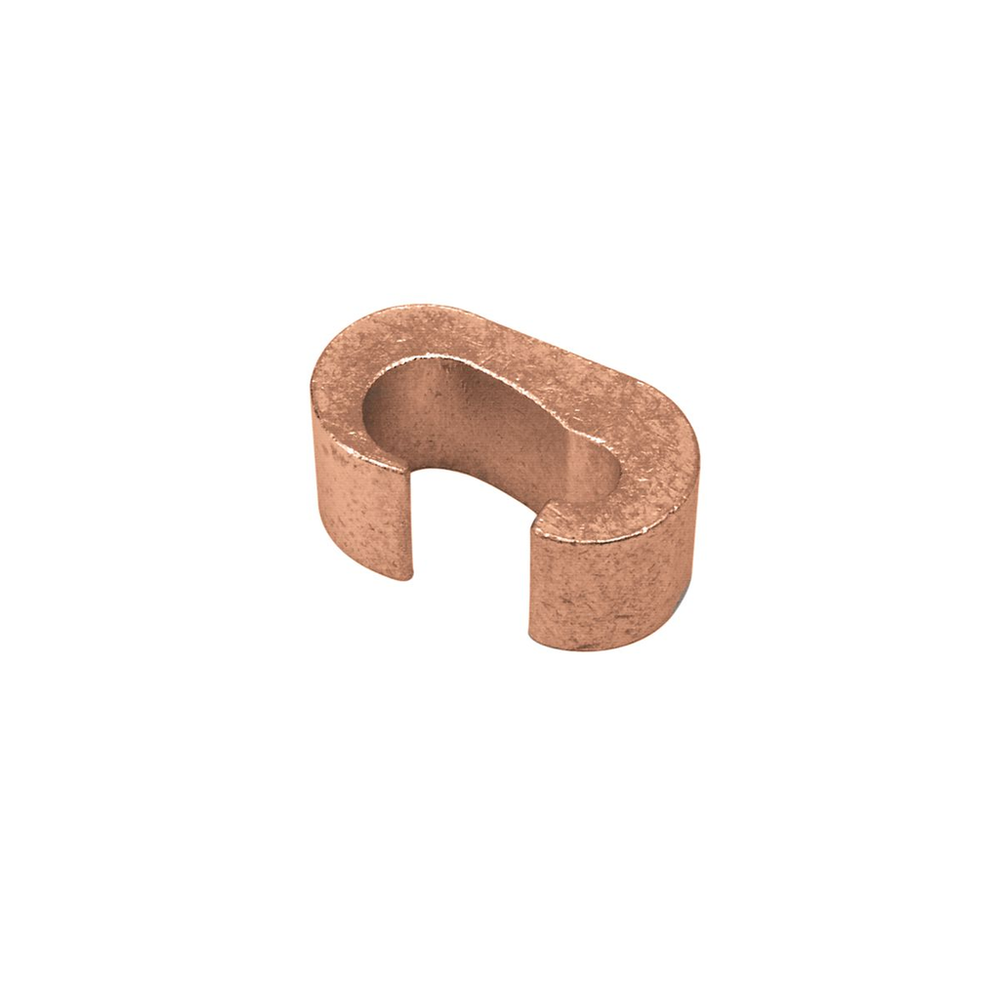

Copper Compression C Tap, 250 kcmil- 2 AWG (Main), 250 kcmil- 2 AWG (Tap), Tin Plated.Copper Compression C Tap, 250 kcmil- 2 AWG (Main), 250 kcmil- 2 AWG (Tap), Tin Plated
Burndy YCHC29TC29 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Wire Tap
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x8.438x4.063 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 5.760 lb.
- Carton - Number of Sub Packs
- 24
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810013717
- Carton - Total Units
- 24
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810013718
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Orange
- Conductor - Copper Flex I Run Range
- 2 AWG-4/0 AWG
- Conductor - Copper Flex I Tap Range
- 2 AWG-4/0 AWG
- Conductor - Copper Flex K Run Range
- 2 AWG-4/0 AWG
- Conductor - Copper Flex K Tap Range
- 2 AWG-4/0 AWG
- Conductor - Copper Flex M Run Range
- 2 AWG-4/0 AWG
- Conductor - Copper Flex M Tap Range
- 2 AWG-4/0 AWG
- Conductor - Copper Str Run
- 250 KCMIL-2 AWG
- Conductor - Copper Str Run Range
- 250 KCMIL-2 AWG
- Conductor - Copper Str Tap
- 250 KCMIL-2 AWG
- Conductor - Copper Str Tap Range
- 250 KCMIL-2 AWG
- Conductor - Material
- COPPER
- Conductor Size
- 250 KCMIL-250 KCMIL
- Conductor Type
- CODE/FLEX
- Connector Type
- C-TAP
- Country of Origin
- US
- Description - Invoice
- 250-2 TO 250-2 CU FIG C
- Description - Slang
- C TAP TIN PLATED
- Die Index
- 997
- Dimension - Height inch
- 2.12 in
- Dimension - Length Overall inch
- 0.94 in
- Dimension - L Length Overall mm
- 24 mm
- Dimension - Strip Length inch
- 1 in
- Dimension - Width inch
- 0.98 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.98 in
- Finish
- Tin-Plated
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- COPPER
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 5.76 lb.
- Package - GTIN - Package
- 30781810013718
- Package Height
- 4.5 in
- Package Length
- 8.13 in
- Package - Number of Sub Packs
- 24
- Package - Pack Description
- Package
- Package Quantity
- 24 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810013717
- Package - Total Units
- 24 EA
- Package Weight
- 5.76 lb.
- Package Width
- 3.75 in
- Pallet - GTIN - Package
- 70781810013716
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2302.920 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Product Type
- RUN/TAP
- Special Features
- Features: Wide Range Of Run/Tap Combinations Including Class B Code I And Locomotive Flexible Conductor Combinations, All (B/B, B/I, I/I) Combinations Are Recommended: Each Connector Accommodates Many Cable Combinations, Allowing Maximum Flexibility For The Design And Installation Of A System, Color-Coded On The Connector That Matches The Die: Provides Matched System For Fast And Easy Installation, Each Connector Has A Recommended Insulating Cover Available, Flame Retardant Type CF-FR Covers Meet Oxygen Index 28 And UL94 V-O Requirements: A Complete Insulated UL Listed Installation Is Provided, Die Index Embossed On Connector After Completion Of Crimp: Permanent Inspectability Of Installed Connector Is Insure Consistently Reliable And Dependable Connections, Use PUADP-1 Adaptor With U Dies In Y46, Color Code: Orange, Tools, Die Set Catalog Number, And (number Of Crimps): Y750 Tool, U997 Die, (1), Y46 Tool, U997 Die With PUADP-1 Adapter, (1), Flame Retardant Cover: CFD-FR, Wire Strip Length: 1 IN, Die Index: 997 Element A, Conductor Size (run - Range): Commercial Copper: 2 AWG - 250 KCMIL, Flex Copper: 2 - 4/0 AWG, Conductor Type: Run: Commercial Stranded Copper, Flexible Copper, Tap: Commercial Stranded Copper, Flexible Copper, Conductor Size (tap Range): Commercial Copper: 2 AWG - 250 KCMIL, Flex Copper: 2 - 4/0 AWG, Shape: C
- Standard
- UL 486A-486B
- Standard Package Quantity
- 24
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- CRIMPIT
- Sub Class Code
- B55BI4F
- Trade Name
- CRIMPIT™
- Type
- YCHC Series
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Width
- 0.98 in
