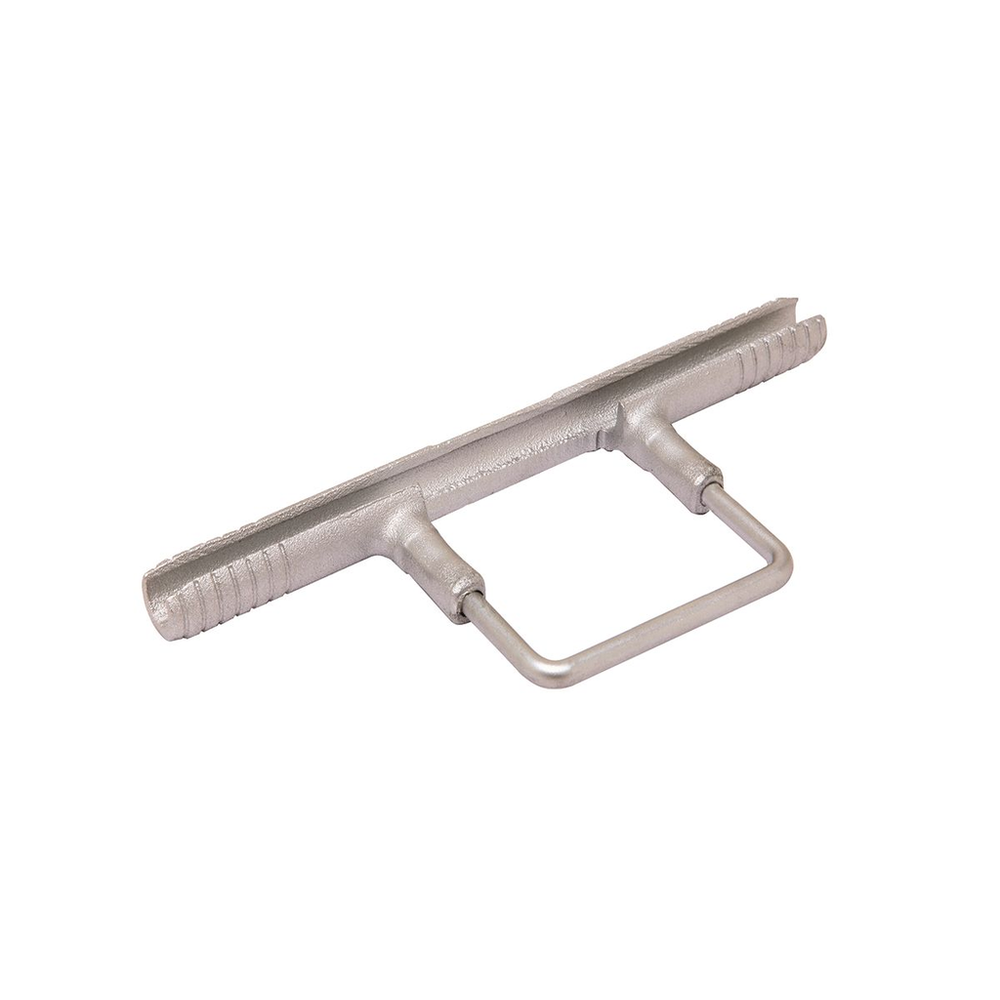

Burndy YCB25R
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Permanent compression hot-line clamp adapter with aluminum run and copper bail. Permits hot-line tapping without arcing or chafing damage to aluminum conductor,Aluminum:1/0 (7, 19).Stirrup Connector,Aluminum:1/0 AWG, ACSR:1/0 (6-1) AWG-80 (8-1) kcmil ACSR
Burndy YCB25R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Aluminum, ACSR, 6201, 5005, Compressed And Compact Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810151716
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810151717
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - ACSR Str Size
- 1/0 (6/1) Raven AWG;2/0 (6/1) Quail AWG;3/0 (6/1) Pigeon AWG;4/0 (6/1) Penquin AWG;80 (8/1) Grouse kcmil
- Conductor - ACSR Str Size Range
- 1/0 (6/1) Raven AWG-80 (8/1) Grouse kcmil
- Conductor - AL Str Size
- 1/0 AWG
- Conductor - AL Str Size Range
- 1/0 AWG
- Country of Origin
- US
- Description - Invoice
- 1/0 AL STIRRUP W/ SPLICE
- Die Index
- C
- Dimension - Bail Size
- 2
- Dimension - D inch
- 2.50 in
- Dimension - F Width Center to Center inch
- 3.50 in
- Dimension - Height inch
- 4.91 in
- Dimension - Length Overall inch
- 9.69 in
- Dimension - L Length Overall mm
- 246 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.72 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- Material - Bail
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 6.15 lb.
- Package - GTIN - Package
- 30781810151717
- Package Height
- 5.75 in
- Package Length
- 12 in
- Package - Number of Sub Packs
- 15
- Package - Pack Description
- Package
- Package Quantity
- 15 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810151716
- Package - Total Units
- 15 EA
- Package Weight
- 6.15 lb.
- Package Width
- 9 in
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- N
- Product Type
- Compression
- Special Features
- Features: Permanent Compression Hot-Line Clamp Adapter With Aluminum Run And Copper Bail, Accommodates Any Standard Copper Hotline Clamp On Bail Elements, Permits Hot-Line Tapping Without Arcing Or Chafing Damage To Aluminum Conductor, Installed With Standard Tools And Dies, With Splice, Bail Size: 2 AWG Solid, Conductor Size (run - Range): 4/0 AWG - 80 KCMIL, Conductor Type: ACSR, Aluminum, 6201, 5005, Die Index: C Element A, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W-C Die, (4), Y35, Y750 Tool, U-C Die, (2), Y45 Tool, U-C Die With PT-6515 Adapter, (2), Y46 Tool, U-C Die With PUADP-1 Adapter, (2)
- Standard Package Quantity
- 15
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- CRIMPIT
- Sub Class Code
- B30B40F
- Type
- Stirrups
- UL Listed
- No
- Width
- 0.72 in
