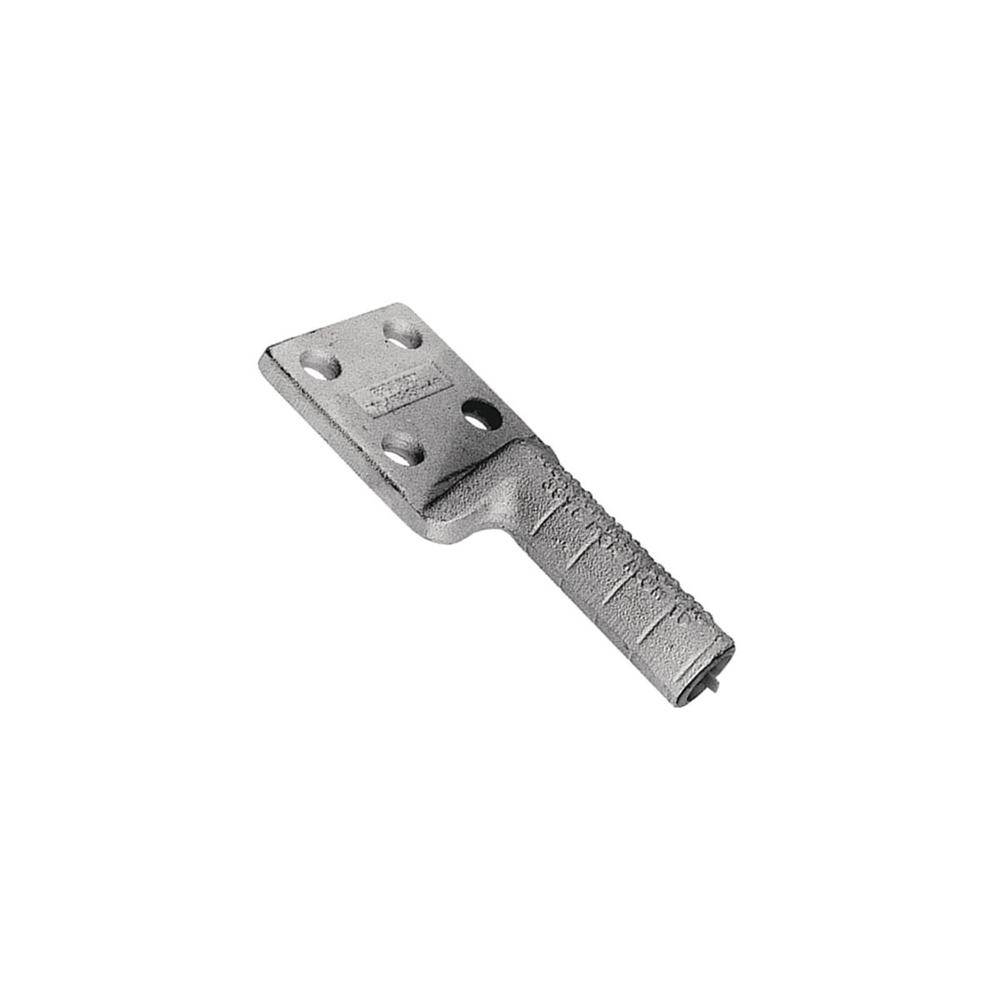

Burndy YCAK45R4N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminum Compression Terminal, 795 (26-7, 54-7) ACSR 900(61, 91),954(37, 61),1000(61) Al, 1/2" Stud.Aluminum Compression Terminal, 795 (26-7, 54-7) ACSR 900(61, 91), 954(37, 61), 1000(61) Al, 1/2" Stud
Burndy YCAK45R4N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For AAC(STR,Compressed,compact), ACSR AND AAAC
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810016794
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810016795
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - ACSR Str Size
- 795 kcmil (54-7 STR)
- Conductor - AL Str Size Range
- 900 kcmil (61,91 STR), 954 kcmil (37,61 STR),1000 kcmil (61 STR)
- Country of Origin
- US
- Description - Invoice
- 795 AL 4 HOLE LUG NEMA,9.64 IN L
- Die Index
- 352
- Dimension - B Length inch
- 5.25 in
- Dimension - Bolt Hole Size inch
- 0.5 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Length Overall inch
- 9.64 in
- Dimension - L Length Overall mm
- 254 mm
- Dimension - Pad Width inch
- 4.00 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 3 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 13.2 lb.
- Package - GTIN - Package
- 30781810016795
- Package Height
- 5.75 in
- Package Length
- 12 in
- Package - Number of Sub Packs
- 8
- Package - Pack Description
- Package
- Package Quantity
- 8 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810016794
- Package - Total Units
- 8 EA
- Package Weight
- 13.2 lb.
- Package Width
- 9 in
- Physical Attribute - Pad Configuration
- 4 Hole NEMA
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Replaced Catalog Number
- YCAK45R4N
- Special Features
- Features:Aluminum Compression Terminals
- Standard Package Quantity
- 8
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- COMPRESSION TERMINAL
- Sub Class Code
- B30B47F
- Type
- YCAK-R-N
- UL Listed
- No
- Width
- 3 in
