Description

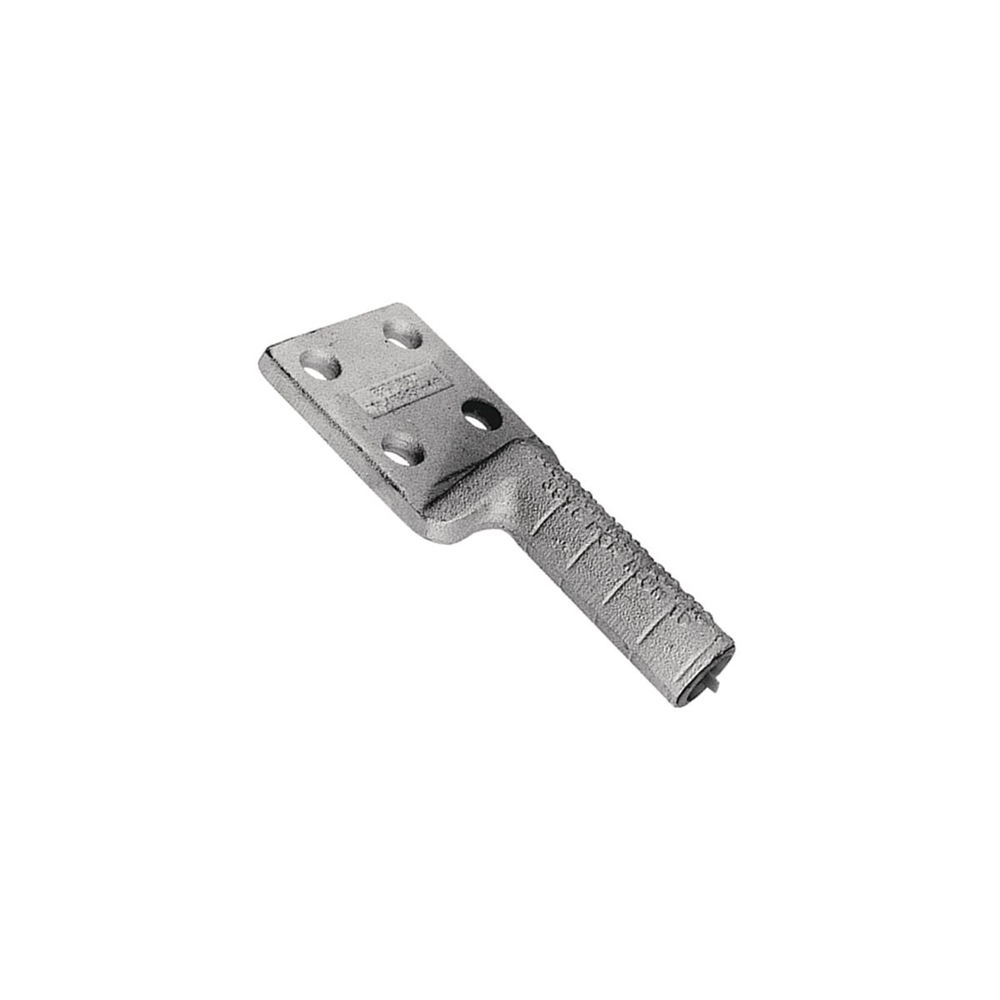

Aluminum Terminal, 4 Pad Holes, 266.8 (18-1, 6-7, 26-7) kcmil ACSR, 266.8 (7, 19) kcmil Al., 251 IndexAluminum Terminal, 4 Pad Holes, 266.8 (18-1, 6-7, 26-7) kcmil ACSR, 266.8 (7, 19) kcmil Al., 251 Index
Burndy YCAK30R4N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810016732
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810016733
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - ACSR Str Size
- 266.8 (18-1) kcmil;266.8 (6-7) kcmil;266.8 (26-7) kcmil
- Conductor - ACSR Str Size Range
- 266.8 (18-1) kcmil;266.8 (6-7) kcmil;266.8 (26-7) kcmil
- Conductor - AL Str Size
- 266.8 kcmil
- Conductor - AL Str Size Range
- 266 kcmil
- Country of Origin
- US
- Die Index
- 251
- Dimension - B Length inch
- 2.65 in
- Dimension - Bolt Hole Size inch
- 0.56 in
- Dimension - E Spacing between Holes fraction
- 1-3/4 in
- Dimension - Length Overall inch
- 7.38 in
- Dimension - L Length Overall mm
- 187 mm
- Dimension - Pad Width inch
- 3 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Material
- Aluminum
- Package - GTIN - Package
- 30781810016733
- Package Quantity
- 6 EA
- Package - Total Units
- 6 EA
- Package Weight
- 0.000 lb.
- Physical Attribute - Pad Configuration
- 4 Hole NEMA
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Replaced Catalog Number
- YCAK30R4N
- Standard Package Quantity
- 6
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B30B47F
- Trade Name
- HYLUG™
- UL Listed
- No
