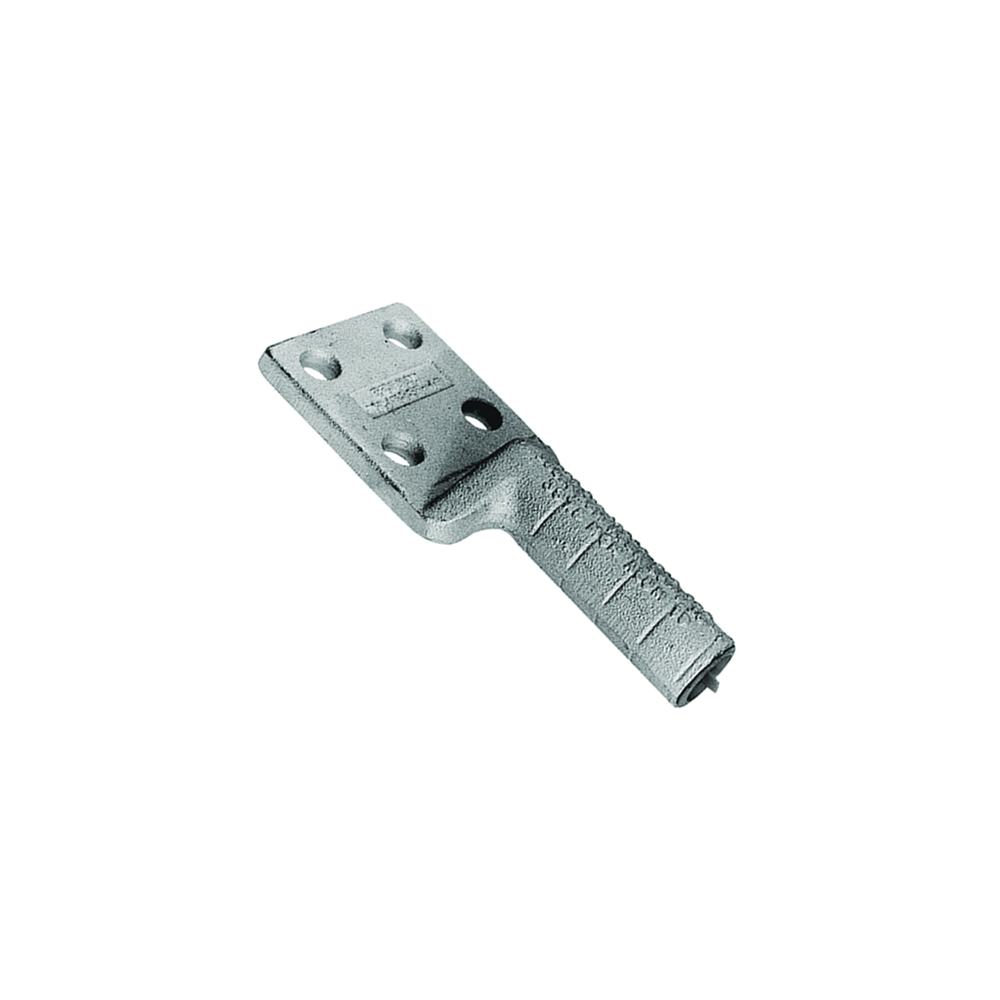

Burndy YCAK28R4N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
AL compression lug designed for terminating jumper loop and equiptment taps to switch pads and other substation switch yard apparatus, 7.36. IN L.YCAK28R4N
Burndy YCAK28R4N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
- UL Listed
- No
Conductor Related
- Conductor - ACSR Str Size
- 4/0 (6-1) AWG;4/0 (6-7) AWG
- Conductor - ACSR Str Size Range
- 4/0 (6-1) AWG;4/0 (6-7) AWG
- Conductor - AL Str Size
- 4/0 AWG
- Conductor - AL Str Size Range
- 4/0 AWG
Dimensions
- Dimension - B Length inch
- 3.10 in
- Dimension - Bolt Hole Size inch
- 0.56 in
- Dimension - E Spacing between Holes fraction
- 1-3/4 in
- Dimension - Length Overall inch
- 7.36 in
- Dimension - L Length Overall mm
- 187 mm
- Dimension - Pad Width inch
- 3 in
General
- Application
- For ACSR/6201/5005 (Compressed/Compact), Aluminum
- Die Index
- 249
- Material
- Aluminum
- Physical Attribute - Pad Configuration
- 4 Hole NEMA
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Sub Brand
- TERMINALS
- Trade Name
- HYLUG™
- Type
- YCAK-R-N, Terminal
- UPC
- 781810016749
- UPC 12 Digit
- 7818100167499
