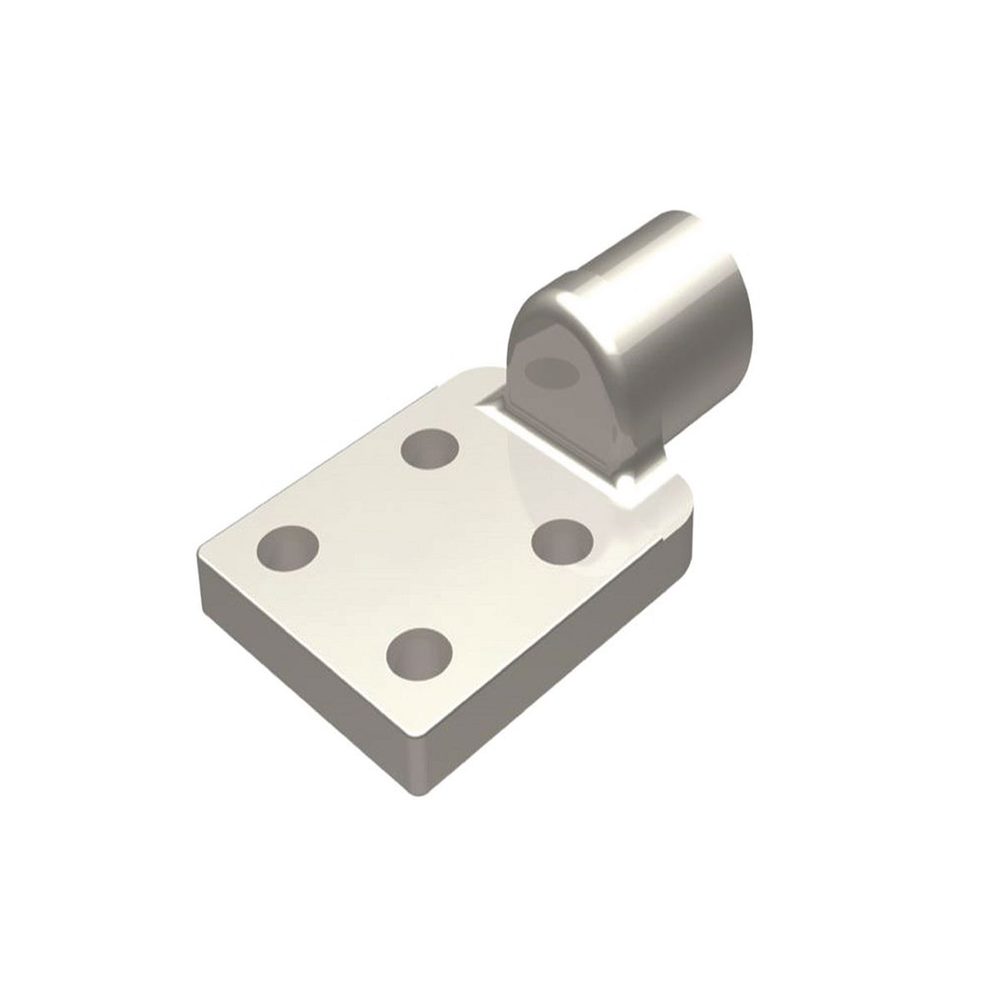

Burndy YCAB394N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Copper compression lug designed for terminating copper conductors to switch pads and other substation switch yard apparatus, Die Index: 627.Copper compression lug designed for terminating copper conductors to switch pads and other substation switch yard apparatus, Die Index: 627
Burndy YCAB394N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Designed for terminating copper conductors to switch pads and other substation or switch yard apparatus
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810014868
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810014869
- Certification Agency
- Proposition 65
- Class Code
- B31
- Conductor - Copper Str Size
- 750 kcmil
- Conductor - Copper Str Size Range
- 750 kcmil
- Connector Type
- Terminal
- Country of Origin
- MX
- Description - Invoice
- 750 CU 4 HOLE LUG NEMA
- Die Index
- 627
- Dimension - B Length inch
- 3 in
- Dimension - F Width Center to Center inch
- 1.75 in
- Dimension - Hole Size fraction
- 14/25 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 8.53 in
- Dimension - L Length Overall mm
- 217 mm
- Dimension - N inch
- 0.62 in
- Dimension - Outside Diameter inch
- 1.7 in
- Dimension - Pad Width inch
- 3 in
- Dimension - Strip Length inch
- 3 1/16
- Dimension - Stud Size inch
- 33/64
- Dimension - Z inch
- 0.63 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 3 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 51 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 5 EA
- Oxide Inhibitor Type
- Penetrox A
- Package - Gross Weight per Pack
- 18.2 lb.
- Package - GTIN - Package
- 30781810014869
- Package Height
- 4.25 in
- Package Length
- 9 in
- Package - Number of Sub Packs
- 5
- Package - Pack Description
- Package
- Package Quantity
- 5 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810014868
- Package - Total Units
- 5 EA
- Package Weight
- 18.2 lb.
- Package Width
- 6.13 in
- Physical Attribute - Number of Crimps Required
- 2
- Physical Attribute - Number of Holes
- 4
- Physical Attribute - Tongue Angle
- Straight
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features:NEMA standard mounting holes, Made of pure copper.
- Standard Package Quantity
- 5
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- N - Non-stock
- Sub Brand
- TERMINALS, HYLUG
- Sub Class Code
- B31B57F
- Trade Name
- HYLUG™
- Type
- YCAB-4N
- UL Listed
- No
- Width
- 3 in
