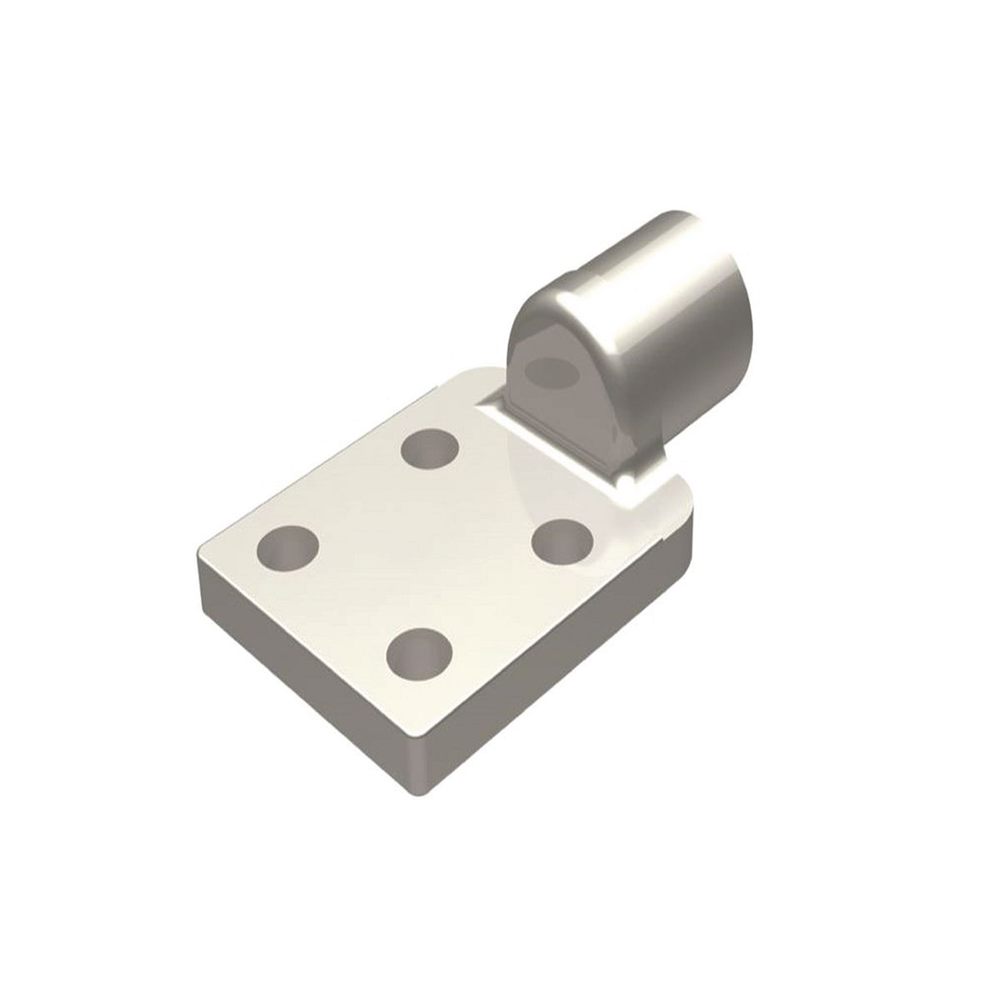

Burndy YCAB344N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Copper compression lug designed for terminating copper conductors to switch pads and other substation switch yard apparatus, Pad width: 2-3/8 IN.Copper compression lug designed for terminating copper conductors to switch pads and other substation switch yard apparatus, Pad width: 3 IN.
Burndy YCAB344N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Terminating Copper Conductors To Switch Pads And Other Substation Or Switch Yard Apparatus
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Buy American Compliant
- Yes
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810014851
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810014852
- Certification Agency
- Proposition 65
- Class Code
- B31
- Conductor - Copper Str Size
- 500 kcmil
- Conductor - Copper Str Size Range
- 500 kcmil
- Connector Type
- Terminal
- Country of Origin
- MX
- Description - Invoice
- 500 CU 4 HOLE LUG NEMA
- Die Index
- 210
- Dimension - B Length fraction
- 2-9/17 in
- Dimension - B Length inch
- 2.53 in
- Dimension - D inch
- 3.00 in
- Dimension - F Width Center to Center inch
- 1.75 in
- Dimension - Hole Size fraction
- 14/25 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 6.81 in
- Dimension - L Length Overall mm
- 173 mm
- Dimension - N inch
- 0.62 in
- Dimension - Outside Diameter inch
- 1.38 in
- Dimension - Pad Width inch
- 3.00 in
- Dimension - Strip Length inch
- 2 5/8
- Dimension - Stud Size inch
- 1/2
- Dimension - Z inch
- 0.63 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 3 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 13.8 lb.
- Package - GTIN - Package
- 30781810014852
- Package Height
- 4.5 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 6
- Package - Pack Description
- Package
- Package Quantity
- 6 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810014851
- Package - Total Units
- 6 EA
- Package Weight
- 13.8 lb.
- Package Width
- 6.13 in
- Physical Attribute - Number of Holes
- 4
- Physical Attribute - Tongue Angle
- Straight
- Physical Attribute - Tongue Type
- Standard
- Plated
- N
- Plating Type
- Tin
- Prefilled Oxide Inhibitor
- N
- Product Type
- Compression
- Special Features
- Features: Compression HYLUG Terminals Designed For Terminating Copper Conductors To Switch Pads And Other Substation Or Switch Yard Apparatus, NEMA Standard Mounting Holes, Made Of Pure Copper, Installed With Same Die As Equivalent Full Tension Jumper Loop And Repair Sleeves, Have Brazed Pads, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750 Tool, U210 Die, (6), Y45 Tool, U210 Die With PT-6515 Adapter, (6), Y46 Tool, U210 Die With PUADP-1 Adapter, (6), Y48B Tool, C210 Die, (2), Y60BHU Tool, L210 Die, (2), Die Index: 210
- Standard Package Quantity
- 6
- Standards - RoHS Compliance Status
- EX
- Stock Indicator
- N - Non-stock
- Sub Brand
- HYLUG
- Sub Class Code
- B31B57F
- Trade Name
- HYLUG™
- Type
- YCAB-4N
- UL Listed
- No
- Width
- 3 in
