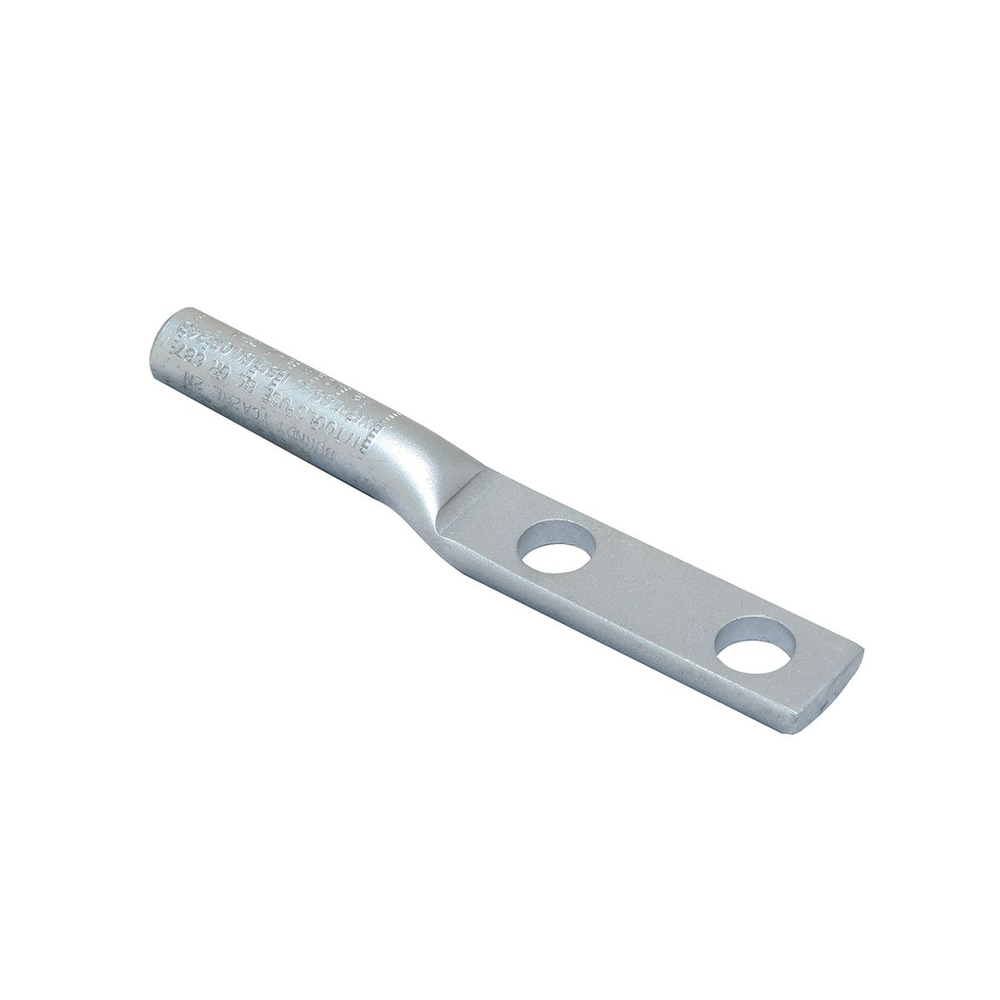

Burndy YCA35R2N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
AL compression lug designed for terminating jumper loop and equiptment taps to switch pads and other substation switch yard apparatus, 7.44 IN L.AL compression lug designed for terminating jumper loop and equipment taps to switch pads and other substation switch yard apparatus, 7.44 IN L
Burndy YCA35R2N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Used for terminating jumper loops and equipment taps at switchpads and other substation apparatus, or to YDW-R deadends.
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x8.438x4.063 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 5.100 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810810712
- Carton - Total Units
- 10
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810810713
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - ACSR Str Size
- 397.5 (26-7) kcmil; 397.5 (18-1) 397.5 (30-7)kcmil
- Conductor - ACSR Str Size Range
- 397.5 (26-7) kcmil; 397.5 (18-1) 397.5 (30-7)kcmil
- Conductor - AL Str Size
- 477 kcmil-500 kcmil
- Conductor - AL Str Size Range
- 477 kcmil-500 kcmil
- Connector Type
- Terminal
- Country of Origin
- US
- Description - Invoice
- 397 AL 2 HOLE LUG NEMA
- Die Index
- 317
- Dimension - B Length inch
- 3.02 in
- Dimension - Bolt Hole Size inch
- 0.56 in
- Dimension - E Spacing between Holes fraction
- 1-3/4 in
- Dimension - Length Overall inch
- 7.44 in
- Dimension - L Length Overall mm
- 188 mm
- Dimension - Pad Width inch
- 1.84 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.84 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 5.1 lb.
- Package - GTIN - Package
- 30781810810713
- Package Height
- 4.5 in
- Package Length
- 8.13 in
- Package - Number of Sub Packs
- 10
- Package - Pack Description
- Package
- Package Quantity
- 10 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810810712
- Package - Total Units
- 10 EA
- Package Weight
- 5.1 lb.
- Package Width
- 3.75 in
- Pallet - GTIN - Package
- 70781810810711
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2044.200 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Pad Configuration
- 2 Hole NEMA
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features:Aluminum compression HYLUG , NEMA standard mounting holes,Installed with same dies as equivalent full-tension sleeves
- Standard Package Quantity
- 10
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- COMPRESSION TERMINAL
- Sub Class Code
- B30B46F
- Trade Name
- HYLUG™
- Type
- YCA-R-N
- UL Listed
- No
- Width
- 1.84 in
