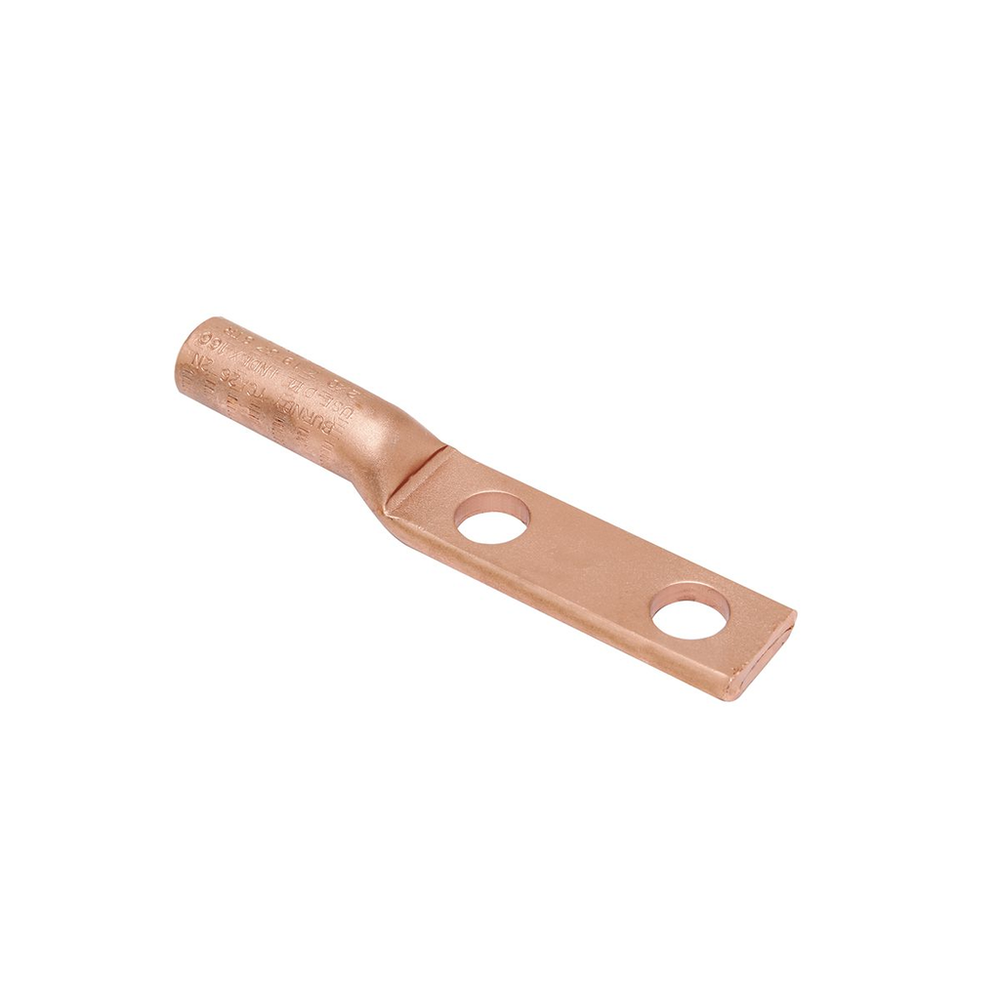

Burndy YCA302N
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Copper compression lug designed for terminating copper conductors to switch pads and other substation switch yard apparatus, 5-1/2 IN L.Copper compression lug designed for terminating copper conductors to switch pads and other substation switch yard apparatus, 5.54 IN L
Burndy YCA302N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Designed for terminating copper conductors to switch pads and other substation or switch yard apparatus
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x7.373x6.438 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 17.440 lb.
- Carton - Number of Sub Packs
- 20
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810014813
- Carton - Total Units
- 20
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810014814
- Class Code
- B31
- Conductor - Copper Str Size
- 300 kcmil
- Conductor - Copper Str Size Range
- 300 kcmil
- Connector Type
- Terminal
- Country of Origin
- US
- Description - Invoice
- 300 CU 2 HOLE LUG NEMA
- Die Index
- 170
- Dimension - B Length inch
- 1.71 in
- Dimension - D inch
- 3.00 in
- Dimension - Hole Size fraction
- 14/25 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 5.54 in
- Dimension - L Length Overall mm
- 141 mm
- Dimension - N inch
- 0.63 in
- Dimension - Outside Diameter inch
- 1.05 in
- Dimension - Pad Width inch
- 1.42 in
- Dimension - Stud Size inch
- 1/2
- Dimension - Z inch
- 0.62 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.05 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 17.44 lb.
- Package - GTIN - Package
- 30781810014814
- Package Height
- 4.5 in
- Package Length
- 7.06 in
- Package - Number of Sub Packs
- 20
- Package - Pack Description
- Package
- Package Quantity
- 20 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810014813
- Package - Total Units
- 20 EA
- Package Weight
- 17.44 lb.
- Package Width
- 6.13 in
- Pallet - GTIN - Package
- 70781810014812
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1980.840 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Crimps Required
- 1
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Tongue Angle
- Straight
- Physical Attribute - Tongue Type
- Standard
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- N
- Product Type
- Compression
- Special Features
- Features: NEMA standard mounting holes, Made of pure copper, Installed with same die as equivalent full-tension jumper loop and repair sleeves
- Standard Package Quantity
- 20
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- N - Non-stock
- Sub Brand
- TERMINALS, HYLUG
- Sub Class Code
- B31B57F
- Trade Name
- HYLUG™
- Type
- YCA-2N
- UL Listed
- No
- Width
- 1.05 in
