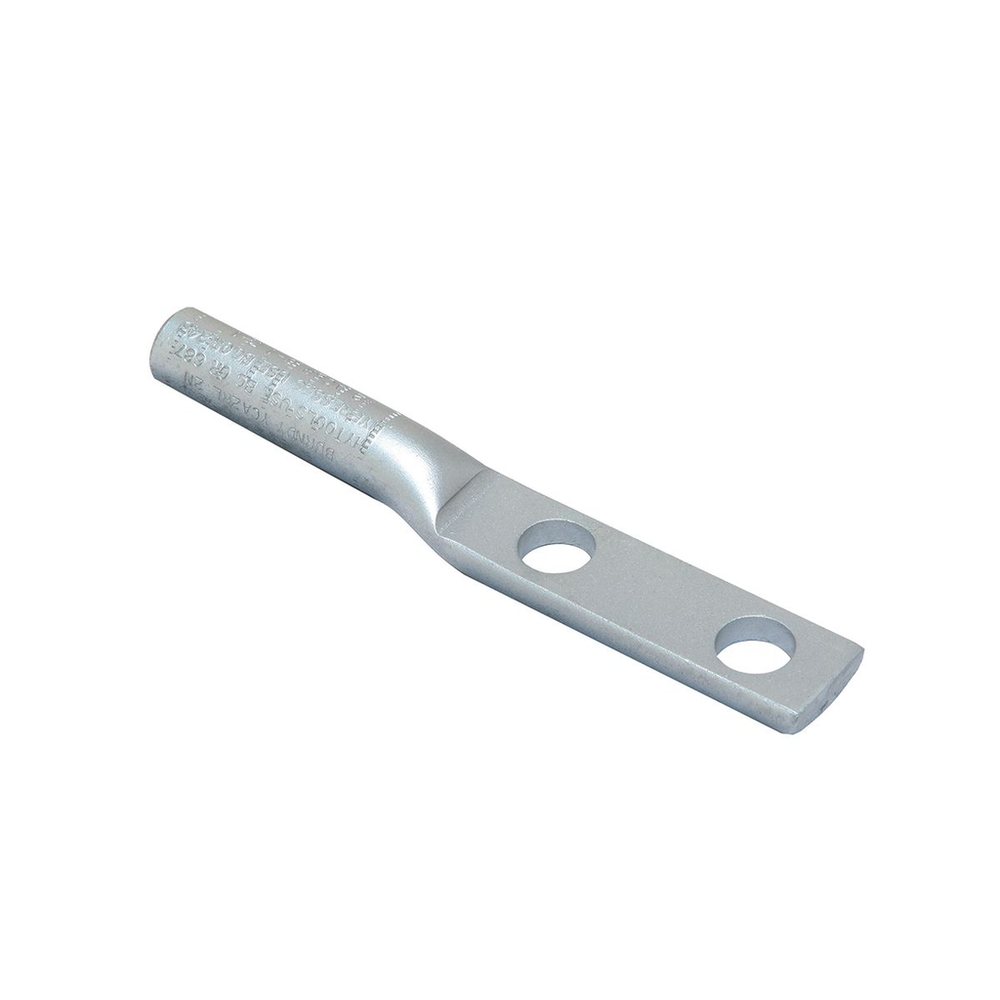

Burndy YCA26R2N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
AL compression lug designed for terminating jumper loop and equiptment taps to switch pads and other substation switch yard apparatus, 6.30 IN L.AL compression lug designed for terminating jumper loop and equipment taps to switch pads and other substation switch yard apparatus, 6.30 IN L
Burndy YCA26R2N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For ACSR/6201/5005 (Compressed/Compact), Aluminum
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x8.438x4.063 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 3.250 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810810439
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810810430
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - ACSR Str Size
- 2/0 (6/1) Quail AWG
- Conductor - ACSR Str Size Range
- 2/0 (6/1) Quail AWG
- Conductor - AL Str Size
- 2/0 AWG
- Conductor - AL Str Size Range
- 2/0 AWG
- Connector Type
- Terminal
- Country of Origin
- US
- Description - Invoice
- 2/0 AL 2 HOLE LUG NEMA,6.30 IN L
- Die Index
- 245;9A
- Dimension - B Length inch
- 2.43 in
- Dimension - Bolt Hole Size inch
- 0.5 in
- Dimension - E Spacing between Holes fraction
- 1-3/4 in
- Dimension - Length Overall inch
- 6.30 in
- Dimension - L Length Overall mm
- 160 mm
- Dimension - Outside Diameter inch
- 0.70 in
- Dimension - Pad Width inch
- 0.97 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- .97 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 11 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 3.25 lb.
- Package - GTIN - Package
- 30781810810430
- Package Height
- 4.5 in
- Package Length
- 8.13 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810810439
- Package - Total Units
- 25 EA
- Package Weight
- 3.25 lb.
- Package Width
- 3.75 in
- Pallet - GTIN - Package
- 70781810810438
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1319.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Pad Configuration
- 2 Hole NEMA
- Plated
- N
- Plating Type
- Unplated
- Prefilled Oxide Inhibitor
- Y
- Product Type
- Compression
- Special Features
- Features: Compression Terminal, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W245 Die, (4), Y35, Y750 Tool, U245 Die, (2), Y45 Tool, U245 Die With PT-6515 Adapter, (2), Y46 Tool, U245 Die With PUADP-1 Adapter, (2), Y48B Tool, C245 Die, (2), Y60BHU Tool, L245 Die, (1), Conductor Type: ACSR/6201/5005 (Compressed/Compact), Aluminum, Die Index: 245 Or 9A
- Standard Package Quantity
- 25
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- TERMINAL,TERMINALS
- Sub Class Code
- B30B46F
- Type
- YCA-R-N, Terminal
- UL Listed
- No
- Width
- .97 in
