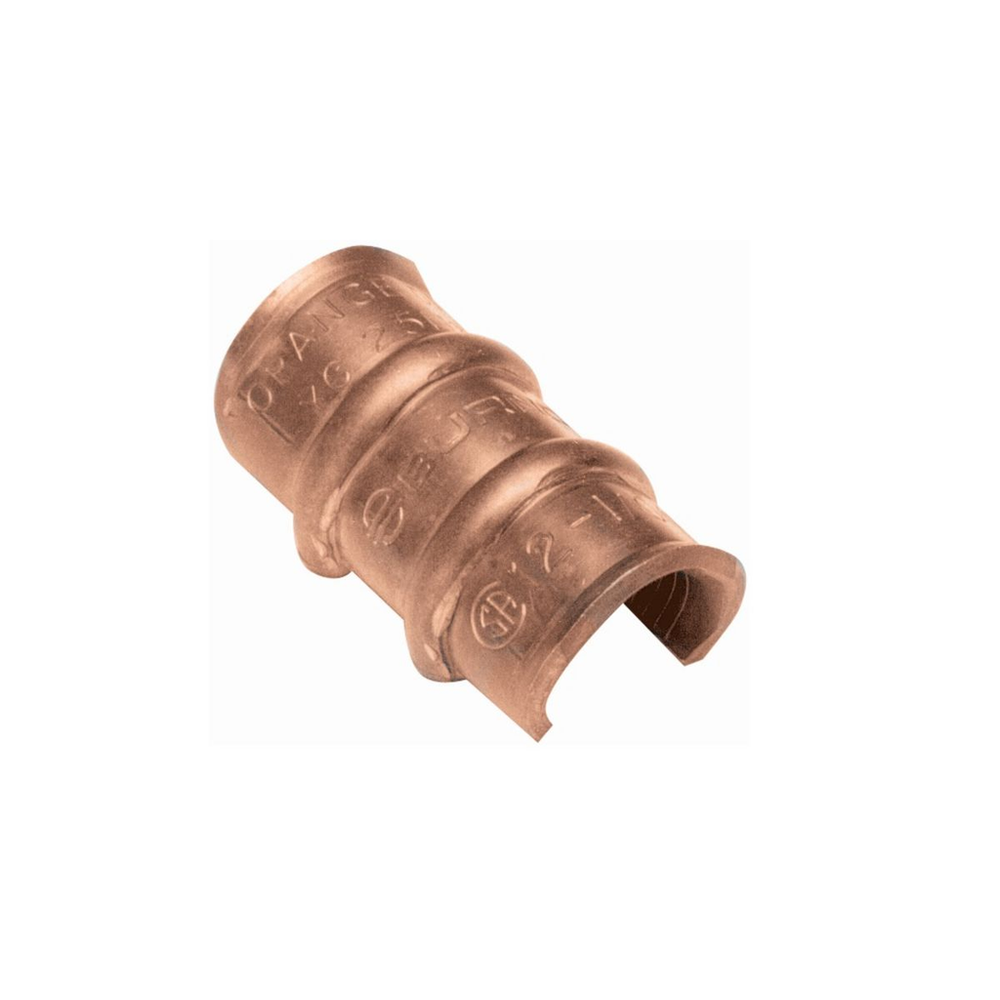

Burndy YC3L12
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Copper Compression C Tap, Thin Wall, 5-4 AWG (Run), 6-5 AWG (Tap).Copper Compression C Tap, Thin Wall, 5-4 AWG (Run), 6-5 AWG (Tap)
Burndy YC3L12 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- Wire Tap
- ARRA Compliant
- No
- Base Unit of Measure
- EA
- BOX SIZE
- 4.005x6.063x3.193 (in)
- Buy American Compliant
- No
- Carton - Gross Weight per Pack
- 3.400 lb.
- Carton - Number of Sub Packs
- 100
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810040140
- Carton - Total Units
- 100
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810040141
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Green
- Conductor - Copper Str Run
- 3 AWG-5 AWG
- Conductor - Copper Str Run Range
- 3 AWG-5 AWG
- Conductor - Copper Str Tap
- 5 AWG-12 AWG
- Conductor - Copper Str Tap Range
- 5 AWG-12 AWG
- Conductor - Material
- COPPER
- Conductor Size
- 3 AWG-12 AWG
- Conductor Type
- CODE
- Connector Type
- C-TAP
- Country of Origin
- US
- Description - Invoice
- THIN C-TAP4-5RUN6-5T
- Description - Slang
- C TAP THIN WALL BARE
- Die Index
- 11
- Dimension - B Length fraction
- 7/16 in
- Dimension - B Length inch
- 0.46 in
- Dimension - D inch
- 1.18 in
- Dimension - Pad Width inch
- 0.27 in
- Dimension - Strip Length inch
- 1-3/16
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.46 in
- Finish
- Tin-Plated
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- COPPER
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 3.4 lb.
- Package - GTIN - Package
- 30781810040141
- Package Height
- 3.38 in
- Package Length
- 5.75 in
- Package - Number of Sub Packs
- 100
- Package - Pack Description
- Package
- Package Quantity
- 100 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810040140
- Package - Total Units
- 100 EA
- Package Weight
- 3.4 lb.
- Package Width
- 2.88 in
- Pallet - GTIN - Package
- 70781810040149
- Pallet Height
- 45.800 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2003.400 lb.
- Pallet Width
- 40.000 in
- Plated
- Y
- Plating Type
- Tin - Bright
- Product Type
- RUN/TAP
- Special Features
- Features: Manufactured Form High Conductivity Wrought Copper: Provides Low Resistance And Excellent Electrical Conductivity, Range-Taking Connector: Lowers Inventory Requirements, Reinforced Ribs: Provides Maximum Pull-Out Values, Compact Size: Easy To Tape And Insulate Connection, Economical: Provides Low Installed Cost, Use PUADP-1 Adapter With U Dies In Y46 HYPRESS, Color Code: Green, Wire Strip Length: 1-3/16 IN, Die Index: 11 Element A, Shape: C, Number Of Ribs: 1, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R, Y2MR Tool, W1CVT Die, (2)
- Standard
- UL 486A-486B
- Standard Package Quantity
- 100
- Standards - Industry Standards Met
- UL467
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- CRIMPIT
- Sub Class Code
- B55BI5F
- Temperature Rating
- 194
- Trade Name
- CRIMPIT™
- Type
- YC-L Series
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Width
- 0.46 in
