Burndy YC2A2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

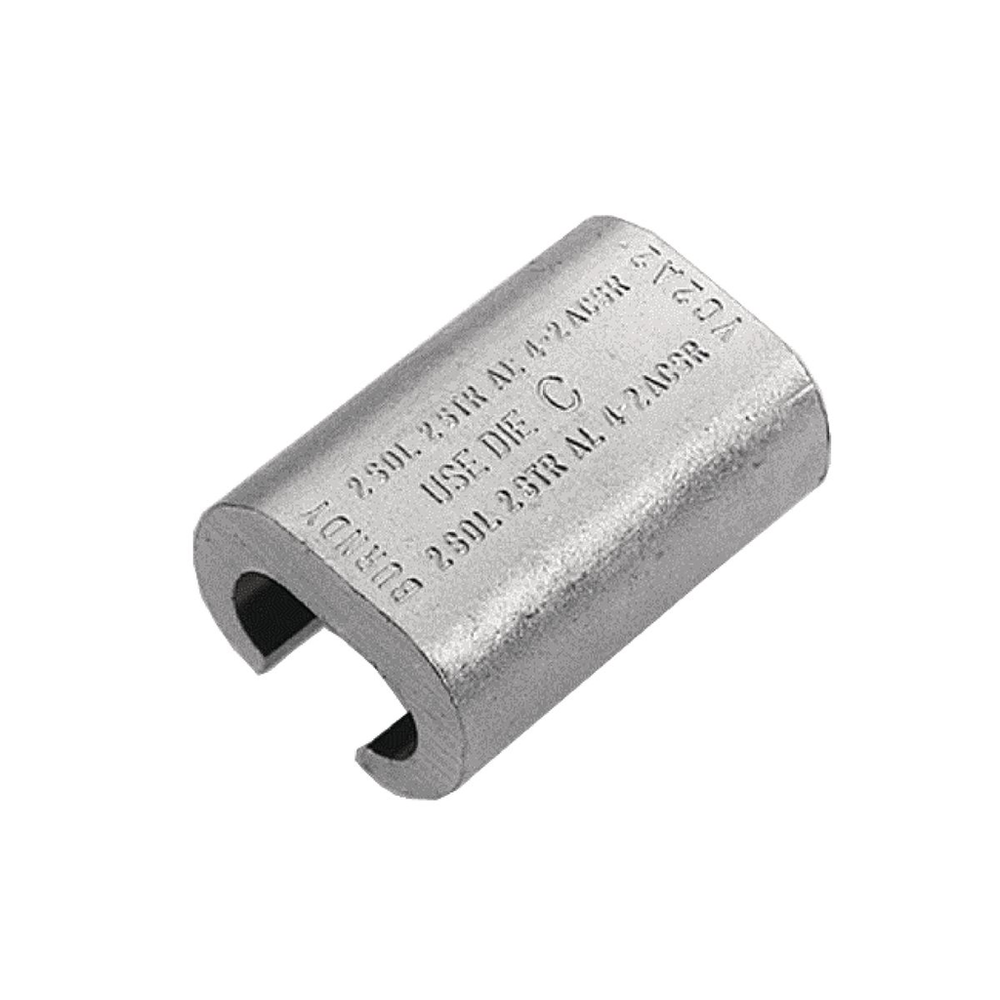

Range-taking, C-shaped AL compression tap, or dead-ending connector designed to eliminate the effects of cold flow, 1-1/2" L,Run(Aluminum):2 Sol. & Str.Range-taking, C-shaped AL compression tap, or dead-ending connector designed to eliminate the effects of cold flow, 1-1/2" L,Run(Aluminum):2 Sol. & Str.
Burndy YC2A2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Combinations Of Aluminum, ACSR, 6201, 5005, Compressed and Compact Conductors
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 4.875x9.313x6.443 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 5.000 lb.
- Carton - Number of Sub Packs
- 100
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810121504
- Carton - Total Units
- 100
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810121505
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - AAAC 5005 Run
- 48.69 (7) kcmil;77.47 (7) kcmil
- Conductor - AAAC 5005 Run Range
- 48.69 (7) kcmil-77.47 (7) kcmil
- Conductor - AAAC 5005 Tap
- 48.69 (7) kcmil;77.47 (7) kcmil
- Conductor - AAAC 5005 Tap Range
- 48.69 (7) kcmil-77.47 (7) kcmil
- Conductor - AAAC 6201 Run
- 48.69 (7) kcmil;77.47 (7) kcmil
- Conductor - AAAC 6201 Run Range
- 48.69 (7) kcmil-77.47 (7) kcmil
- Conductor - AAAC 6201 Tap
- 48.69 (7) kcmil;77.47 (7) kcmil
- Conductor - AAAC 6201 Tap Range
- 48.69 (7) kcmil-77.47 (7) kcmil
- Conductor - ACSR Cmpt Run
- 4 AWG;3 AWG;2 AWG
- Conductor - ACSR Cmpt Run Range
- 4 AWG-2 AWG
- Conductor - ACSR Cmpt Tap
- 4 AWG;3 AWG;2 AWG
- Conductor - ACSR Cmpt Tap Range
- 4 AWG-2 AWG
- Conductor - ACSR Str Run Range
- 4 AWG- 2 AWG
- Conductor - ACSR Str Tap Range
- 4 AWG - 2 AWG
- Conductor - AL Str Run
- 2 AWG
- Conductor - AL Str Run Range
- 2 Sol. - 2 Str
- Conductor - AL Str Tap
- 2 AWG
- Conductor - AL Str Tap Range
- 2 Sol. - 2 Str.
- Construction Material - Main
- Aluminum
- Country of Origin
- US
- Description - Invoice
- 2 TO 2 AL FIG C
- Die Index
- C
- Dimension - Height inch
- 1.00 in
- Dimension - Length Overall inch
- 1.50 in
- Dimension - L Length Overall mm
- 38 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Aluminum
- MSDS Flag
- No
- Order Multiple
- 100 EA
- Package - Gross Weight per Pack
- 5 lb.
- Package - GTIN - Package
- 30781810121505
- Package Quantity
- 100 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810121503
- Pallet Height
- 44.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1245.000 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Compression
- Special Features
- Features: Range-Taking, C-Shaped Aluminum Compression Tap, Or Dead-Ending Connector Designed To Eliminate Effects Of Cold Flow, Can Be Gripped In Tool And Slipped Over Line For Easy Crimping, Pre-Filled With PENETROX Joint Compound And Stripsealed, Tools, Die Set Catalog Number, And (number Of Crimps): MD6, MD7 Tool, W-C Die, (4), Y35, Y750 Tool, U-C Die (2), Y45 Tool, U-C Die With PT-6515 Adapter, (2), Y46 Tool, U-C Die With PUADP-1 Adapter, (2), Die Index: C Element A, Compressed / Compact: No, Conductor Size (run - Range): 2 AWG Solid - 2 AWG Stranded, Conductor Type: Run: Aluminum, Tap: Aluminum, Conductor Size (tap Range): 4 AWG Solid - 4 AWG Stranded, Shape: C
- Standard Package Quantity
- 100
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- CRIMPIT
- Sub Class Code
- B30B3NF
- Trade Name
- CRIMPIT™
- Type
- YC-A
- UL Listed
- No
- Width
- 1 in
