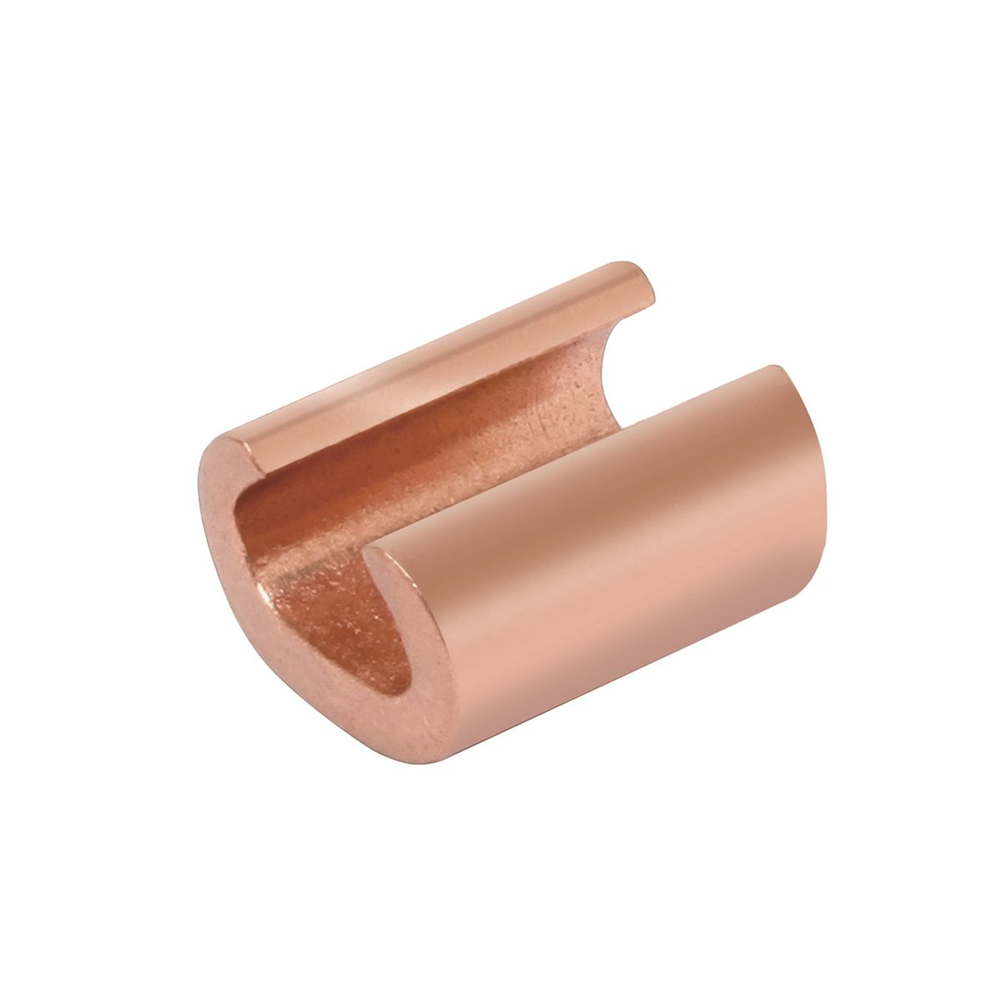

Burndy YC28C2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
CU Compression C Shape Compression Connector, 600 Volts to 35 Kv, Run: 3/0 Str. - 4/0 Str., Tap: 6 Sol. - 2 Str.CU Compression C Shape Compression Connector
Burndy YC28C2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- Application
- For Making Tap Or Parallel Copper Connections
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x6.438x4.875 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 7.500 lb.
- Carton - Number of Sub Packs
- 25
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810115756
- Carton - Total Units
- 25
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810115757
- Certification Agency
- Proposition 65
- Class Code
- B30
- Conductor - Copper Str Run Range
- 3/0 AWG-4/0 AWG
- Conductor - Copper Str Tap Range
- 6 Sol. - 2 Str
- Conductor Type
- Cu C Sol-Size
- Country of Origin
- US
- Description - Invoice
- 3/0-4/0 TO 6-2 CU FIG C
- Die Index
- F or D3
- Dimension - Height inch
- 1.65 in
- Dimension - Length Overall inch
- 1.07 in
- Dimension - L Length Overall mm
- 27 mm
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.93 in
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908040
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A;UL486B
- Lead Time
- 10 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Package - Gross Weight per Pack
- 7.5 lb.
- Package - GTIN - Package
- 30781810115757
- Package Height
- 4.5 in
- Package Length
- 6.13 in
- Package - Number of Sub Packs
- 25
- Package - Pack Description
- Package
- Package Quantity
- 25 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810115756
- Package - Total Units
- 25 EA
- Package Weight
- 7.5 lb.
- Package Width
- 4.56 in
- Pallet - GTIN - Package
- 70781810115755
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1785.000 lb.
- Pallet Width
- 40.000 in
- Plated
- N
- Plating Type
- Unplated
- Product Type
- Compression
- Special Features
- Features: Range-Taking Connector: Lowers Inventory Requirements, Compact Size: Easy To Tape And Insulate Connection, Manufactured From High Conductivity Wrought Copper: Provides Low Resistance And Excellent Electrical Conductivity, Economical: Provides Low Installed Cost, 8A - Use CRIMPITS Accommodating 6 Stranded Copper, 6A - Use CRIMPITS Accommodating 4 Stranded Copper, 4A - Use CRIMPITS Accommodating 2 Stranded Copper, 2A - Use CRIMPITS Accommodating 1/0 And 2/0 Copper, Use PUADP-1 Adapter When Using U Dies In The Y46 HYPRESS, Die Index: D3 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750, Y45 Tool, U-D3 Die, (1), U-F Die, (3), Y46 Tool, U-D3 Die With PUADP-1 Adapter, (1), U-F Die With PUADP-1 Adapter, (3), Conductor Size (run - Range): 3/0 - 4/0 AWG, Conductor Type: Run: Commercial Stranded Copper, Tap: Commercial Stranded Copper, Shape: C, Conductor Size (tap Range): 6 - 2 AWG
- Standard
- UL 486A;UL486B
- Standard Package Quantity
- 25
- Standards - Industry Standards Met
- UL 486A;UL486B
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- CRIMPIT
- Sub Class Code
- B30B3AF
- Trade Name
- CRIMPIT™
- Type
- YC-C Series
- UL Listed
- Yes
- Width
- 0.93 in
