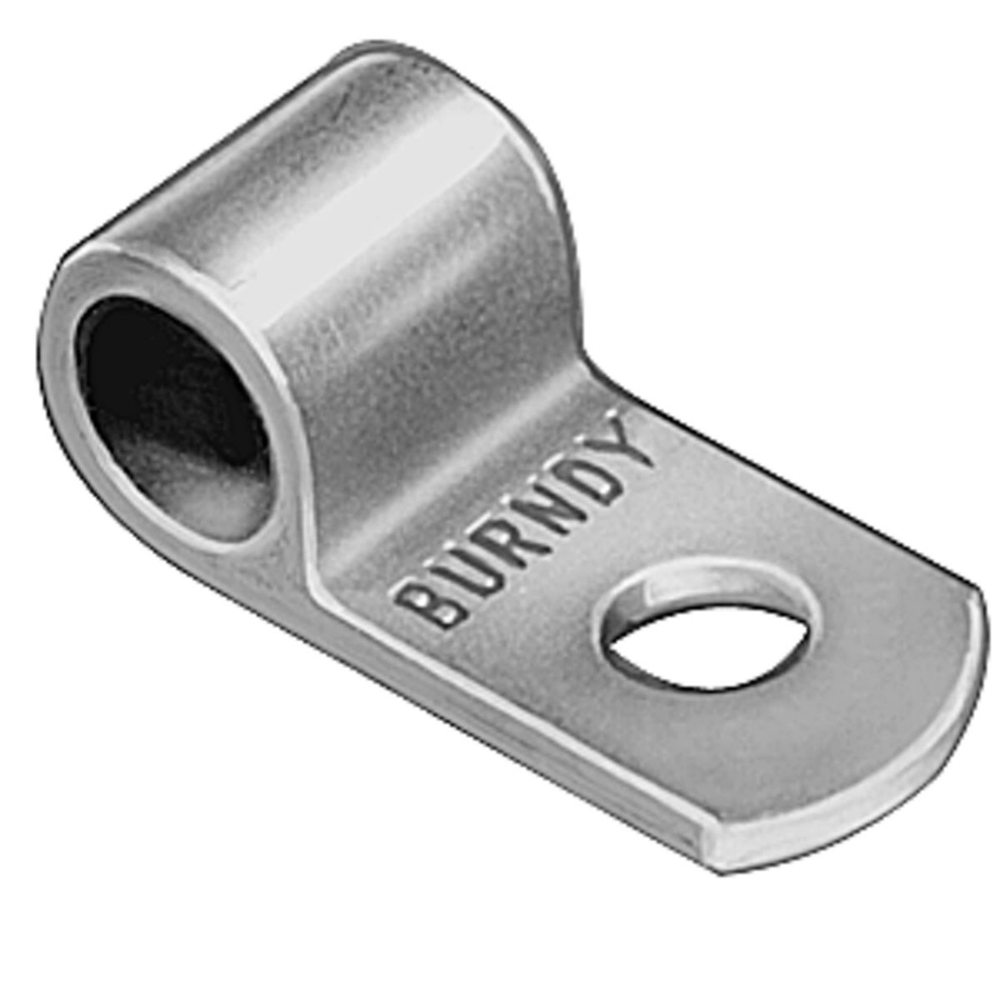

Burndy YBM25L
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Pure Electrolytic Copper Flag Terminal, 1/0 AWG, 3/8 IN Stud, Tin PlatedUninsulated Flag-Type Ring Terminal For 1/0 AWG
Burndy YBM25L is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- No
- cULus
- No
- ETL
- No
- EU RoHS Indicator
- Yes
- UL Recognized
- No
Specifications
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- BOX SIZE
- 5.125x8.438x4.063 (in)
- Buy American Compliant
- Contact Manufacturer
- Carton - Gross Weight per Pack
- 7.000 lb.
- Carton - Number of Sub Packs
- 100
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810026304
- Carton - Total Units
- 100
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810026305
- Certification Agency
- Proposition 65
- Class Code
- B57
- Conductor - Copper DLO Size
- 1/0 (275/#24)
- Conductor - Copper Flex I Size
- 1/0
- Conductor - Copper Str Aircraft Size
- AN 1/0
- Conductor - Copper Str Size
- 1/0
- Conductor - Copper Str Size Range
- 1/0 AWG
- Conductor Size
- 1/0 AWG
- Conductor Type
- CU C Solid-Size;CU C Str-Size
- Connector Type
- Flag Ring Terminal
- Construction Material - Main
- Copper
- Country of Origin
- US
- Description - Invoice
- 1/0 FLAG TERMINAL 3/8 ST
- Die Index
- 58
- Dimension - B Length fraction
- 11/16 in
- Dimension - B Length inch
- 0.66 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Bolt Size fraction
- 3/8
- Dimension - Length Overall inch
- 1.62 in
- Dimension - N inch
- 0.36 in
- Dimension - Outside Diameter inch
- 0.67 in
- Dimension - Pad Width inch
- 0.72 in
- Dimension - Strip Length inch
- 3/4
- Dimension - Stud Size inch
- 3/8
- Dimension - Z inch
- 0.49 in
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 0.72 in
- Feature - Barrel Style
- Chamfered
- Feature - Barrel Type
- Standard
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Lead Time
- 12 wk
- Lowest Level UOM
- Each
- Material
- Copper
- MSDS Flag
- No
- Number of Holes
- 1
- Order Multiple
- 1 EA
- Package - GTIN - Package
- 30781810026305
- Package Quantity
- 100 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810026303
- Pallet Height
- 46.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2103.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 1
- Physical Attribute - Tongue Angle
- 90 Degree
- Physical Attribute - Tongue Type
- Ring
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Special Features
- Made ofpure electrolytic copper for maximum conductivity and ductility. Seamless extrusion tin plated to resist corrosion
- Standard Package Quantity
- 100
- Standards - Industry Standards Met
- UL486
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYLUG
- Sub Class Code
- B57BLHF
- Trade Name
- HYLUG™
- Type
- YBM
- UL Listed
- Yes
- Width
- 0.72 in
