Description

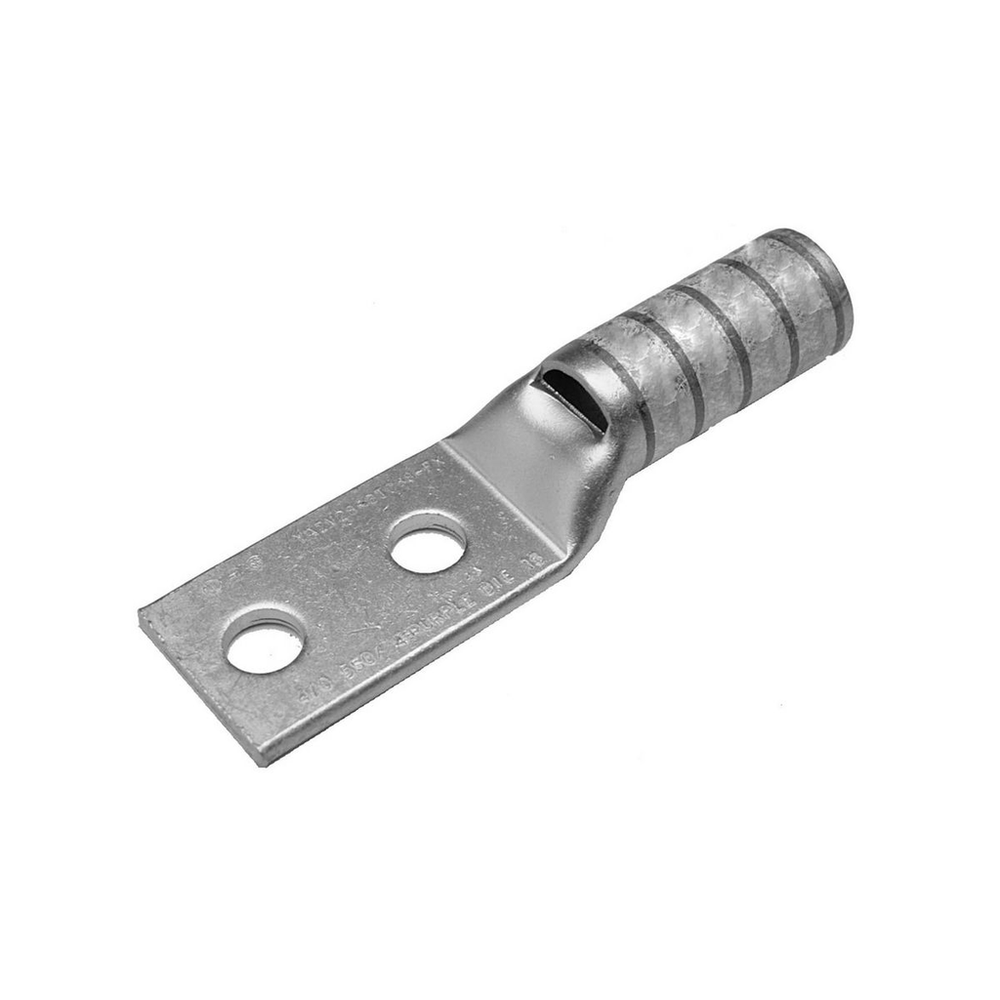

2 Hole HYLUG Cu Compr Terminal, Long Brrl, W/ Insp Window, 5(91/#24) - 4(105/#24) DLO, #4 AWG Weld, #4 AWG Code, 1/4" stud, 1" spacing, Gray, 8 or 346 Index.Copper Compression Terminal
Burndy YAZV4C2TC14E1FX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- cULus
- No
- ETL
- No
- UL Recognized
- No
Specifications
- Application
- Wire Termination
- Base Unit of Measure
- EA
- BOX SIZE
- 4.005x6.063x3.193 (in)
- Carton - Gross Weight per Pack
- 2.400 lb.
- Carton - Number of Sub Packs
- 50
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810228210
- Carton - Total Units
- 50
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810228211
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Gray
- Conductor - Copper DLO Size
- 4 AWG
- Conductor - Copper DLO Size Range
- 4 AWG
- Conductor - Copper Flex G Size
- "4 AWG"
- Conductor - Copper Flex G Size Range
- 4 AWG
- Conductor - Copper Flex H Size
- "4 AWG"
- Conductor - Copper Flex H Size Range
- 4 AWG
- Conductor - Copper Flex I Size
- "4 AWG"
- Conductor - Copper Flex I Size Range
- 4 AWG
- Conductor - Copper Flex K Size
- "4 AWG"
- Conductor - Copper Flex K Size Range
- 4 AWG
- Conductor - Copper Flex M Size
- "4 AWG"
- Conductor - Copper Flex M Size Range
- 4 AWG
- Conductor - Copper Str Compact Size
- "4 AWG"
- Conductor - Copper Str Navy Size
- 40
- Conductor - Copper Str Size
- "4 AWG"
- Conductor - Copper Str Size Range
- 4 AWG
- Conductor - CopperWeld Str Size
- 4 A AWG;4 D AWG;4 N AWG;4 P AWG
- Conductor - CopperWeld Str Size Range
- 4 A AWG-4 P AWG
- Conductor - Material
- COPPER
- Conductor Size
- 4 AWG
- Conductor Type
- CODE/FLEX
- Connector Type
- LONG BARREL
- Country of Origin
- US
- Description - Slang
- TERM FLX LG BBL SKV TEL
- Die Index
- 8
- Dimension - B Length fraction
- 1-1/4 in
- Dimension - B Length inch
- 1.25 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Bolt Size fraction
- 1/4
- Dimension - Bolt Size inch
- 0.25
- Dimension - Hole Size fraction
- 1/4
- Dimension - Hole Size inch
- 0.27
- Dimension - Hole Size mm
- 6.9 mm
- Dimension - Length Overall inch
- 3.20 in
- Dimension - L Length Overall mm
- 81 mm
- Dimension - N inch
- 0.31 in
- Dimension - Outside Diameter inch
- 0.38 in
- Dimension - Pad Width inch
- 0.55 in
- Dimension - Strip Length inch
- 1-5/16
- Dimension - Stud Size fraction
- 1/4
- Dimension - Z inch
- 0.34 in
- Feature - Barrel Style
- Skived
- Feature - Barrel Type
- Long
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Lead Time
- 12 wk
- Material
- COPPER
- Package - GTIN - Package
- 30781810228211
- Package Quantity
- 50 EA
- Package - Total Units
- 50 EA
- Package Weight
- 0.000 lb.
- Pallet - GTIN - Package
- 70781810228219
- Pallet Height
- 45.800 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 2349.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Tongue Angle
- Straight
- Plated
- Y
- Plating Type
- Tin
- Product Type
- TERMINAL
- Standard Package Quantity
- 50
- Standards - RoHS Compliance Status
- CM
- Sub Class Code
- B55BHQF
- Trade Name
- HYLUG™
- Type
- Long Barrel, Skive
- UL Listed
- Yes
- Voltage - Maximum
- 35000
- Voltage Rating
- 35 kV
- Wire Size
- 4 AWG
