Burndy YAZV282NTCFX
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

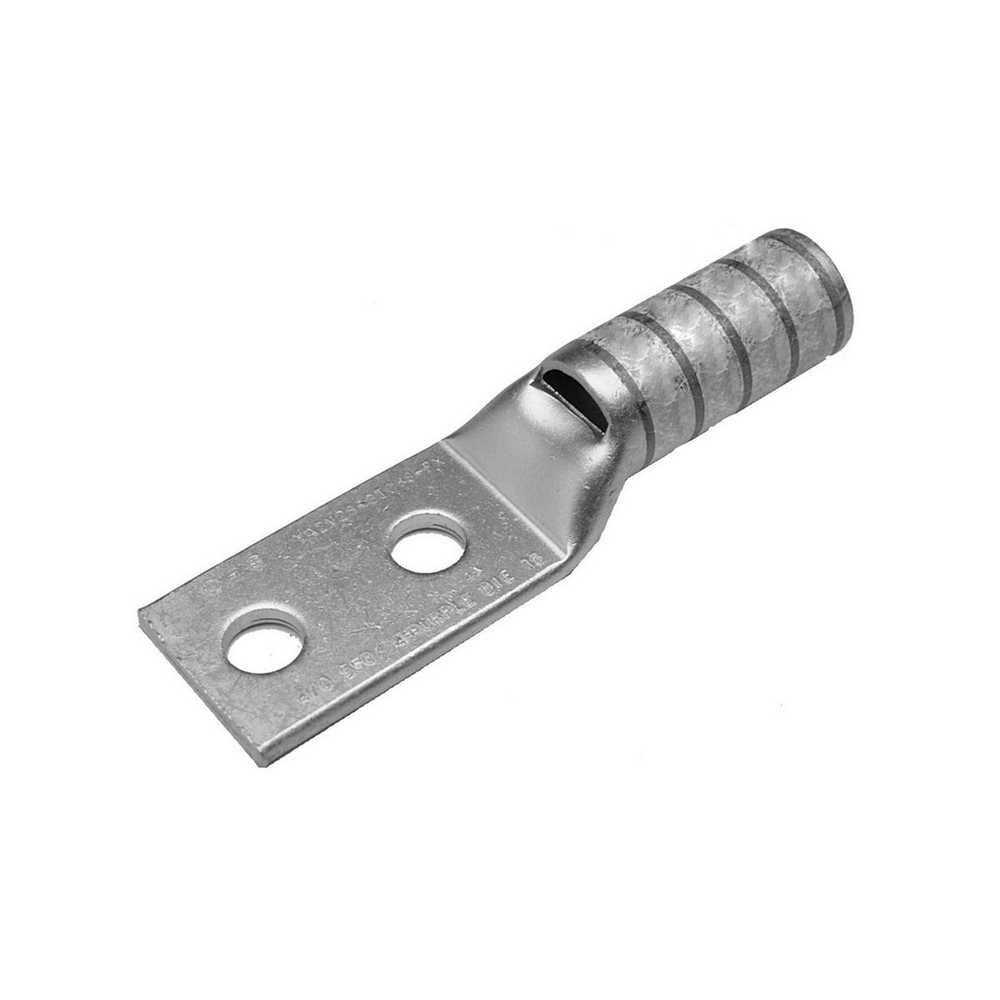

4/0 Flex G,H,I,K,M,DLO, 4/0 AWG CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Purple Color Code, 15 Die Index.4/0 Flex G,H,I,K,M,DLO, 4/0 AWG, CU, 2 Hole, 1/2 Stud, 1-3/4 IN Spacing, Long Barrel, Inspection Window
Burndy YAZV282NTCFX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- CSA Approved
- Yes
- ETL
- No
- EU RoHS Indicator
- Yes
Specifications
- Application
- Wire Termination
- ARRA Compliant
- Yes
- Base Unit of Measure
- EA
- Bolt Size
- 1/2 in
- BOX SIZE
- 4.875x9.313x6.443 (in)
- Buy American Compliant
- Yes
- Carton - Gross Weight per Pack
- 12.650 lb.
- Carton - Number of Sub Packs
- 50
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810165966
- Carton - Total Units
- 50
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810165967
- Certification Agency
- Proposition 65
- Class Code
- B55
- Color Code
- Purple
- Conductor - Copper DLO Size
- 4/0 AWG
- Conductor - Copper DLO Size Range
- 4/0 AWG
- Conductor - Copper Flex G Size
- "4/0 AWG"
- Conductor - Copper Flex G Size Range
- 4/0 AWG
- Conductor - Copper Flex H Size
- "4/0 AWG"
- Conductor - Copper Flex H Size Range
- 4/0 AWG
- Conductor - Copper Flex I Size
- "4/0 AWG"
- Conductor - Copper Flex I Size Range
- 4/0 AWG
- Conductor - Copper Flex K Size
- "4/0 AWG"
- Conductor - Copper Flex K Size Range
- 4/0 AWG
- Conductor - Copper Flex M Size
- "4/0 AWG"
- Conductor - Copper Str Compact Size
- "4/0 AWG"
- Conductor - Copper Str Navy Size
- 200
- Conductor - Copper Str Size
- "4/0 AWG"
- Conductor - Copper Str Size Range
- 4/0 AWG
- Conductor - Material
- COPPER
- Conductor Size
- 4/0 AWG
- Conductor Type
- CODE/FLEX
- Connector Type
- LONG BARREL
- Country of Origin
- US
- Description - Invoice
- CU HYLUG 4/0STR 2HOLE TEL FLEX
- Description - Slang
- TERM FLX LG BBL SKV TEL
- Die Index
- 15
- Dimension - Bolt Size fraction
- 1/2
- Dimension - Bolt Size inch
- 0.5
- Dimension - Hole Size fraction
- 1/2
- Dimension - Hole Size inch
- 0.56
- Dimension - Hole Size mm
- 14 mm
- Dimension - Stud Size fraction
- 1/2
- Each - Number of Sub Packs
- 1
- Each - Pack Description
- Each
- Each - Width
- 1.14 in
- Finish Type
- Tin-Plated
- Freight Class Code
- 16027000
- Harmonization Code
- 8535908020
- Hole Spacing
- 1.75 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL 486A-486B
- Length
- 5.21 in
- Lowest Level UOM
- Each
- Material
- COPPER
- MSDS Flag
- No
- Order Multiple
- 1 EA
- Outside Diameter
- 0.77 in
- Package - Gross Weight per Pack
- 12.65 lb.
- Package - GTIN - Package
- 30781810165967
- Package Height
- 4.25 in
- Package Length
- 9.00 in
- Package - Number of Sub Packs
- 50
- Package - Pack Description
- Package
- Package Quantity
- 50 EA
- Package - SCC-14 Next Lower Level Sub Pack
- 00781810165966
- Package - Total Units
- 50 EA
- Package Weight
- 12.65 lb.
- Package Width
- 6.13 in
- Pallet - GTIN - Package
- 70781810165965
- Pallet Height
- 44.750 in
- Pallet Length
- 48.000 in
- Pallet Weight
- 1563.000 lb.
- Pallet Width
- 40.000 in
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Tongue Angle
- Straight
- Product Type
- TERMINAL
- Special Features
- Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Wire Strip Length: 1-11/16 IN, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Die Index: 15, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT Die, (4), X28RT Die, (6), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (4), X28RT Die, (6), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (2), Y46 Tool, U28RT Die With PUADP-1 Adapter, (2), Color Code: Purple, Conductor Type: Flexible, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (2)
- Standard
- UL 486A-486B
- Standards - RoHS Compliance Status
- CM
- Stock Indicator
- S - Shelf Stock
- Sub Brand
- HYLUG
- Sub Class Code
- B55BHQF
- Trade Name
- HYLUG™
- Type
- Long Barrel, Skive
- UL Listed
- Yes
- Voltage Rating
- 35 kV
- Width
- 1.14 in
- Wire Size
- 4/0 AWG
