Burndy YAZ342NT38
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

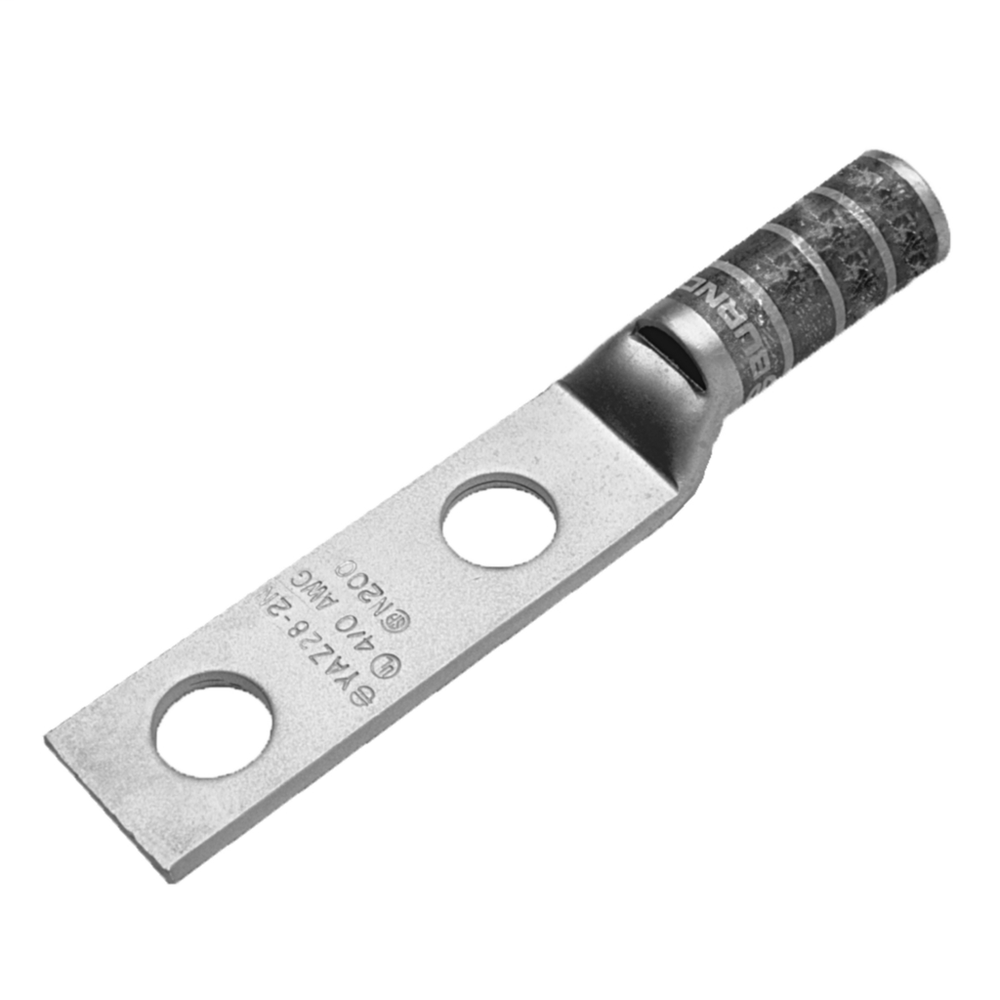

Cu compression narrow toungue std barrel , 2 holes W/ insp window, 500 kcmil, 3/8" stud, Brown, 20 indexCopper YAZ342NT38
Burndy YAZ342NT38 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - cULus
- No
- Certification - ETL
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
- UL Listed
- Yes
Conductor Related
- Conductor - Copper Str Size
- 500 kcmil
- Conductor - Copper Str Size Range
- 500 kcmil
Dimensions
- Dimension - B Length fraction
- 2-1/4 in
- Dimension - B Length inch
- 2.25 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Bolt Size fraction
- 3/8
- Dimension - Length Overall inch
- 4.85 in
- Dimension - L Length Overall mm
- 123 mm
- Dimension - N inch
- 0.41 in
- Dimension - Outside Diameter inch
- 1.06 in
- Dimension - Pad Width inch
- 0.96 in
- Dimension - Strip Length inch
- 2-5/16
- Dimension - Stud Size inch
- 3/8 in
- Dimension - Z inch
- 0.43 in
- Physical Attribute - Tongue Angle
- Straight
Electrical Ratings
- Rating - KVA
- 35 kV
- Rating - Minimum Voltage
- 600
- Voltage - Maximum
- 35000
General
- Color Code
- Brown
- Connector Type
- Terminal
- Die Index
- 20;299
- Feature - Barrel Style
- Skived
- Feature - Barrel Type
- Long
- Material
- Copper
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Plating Type
- Tin - Electro Plated
- Trade Name
- HYLUG™
- UPC
- 781810233214
Logistics
- Minimum Pack Quantity
- 50
